180° Hinge, left version, Zinc die black powder-coated
180° Hinge, left version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated

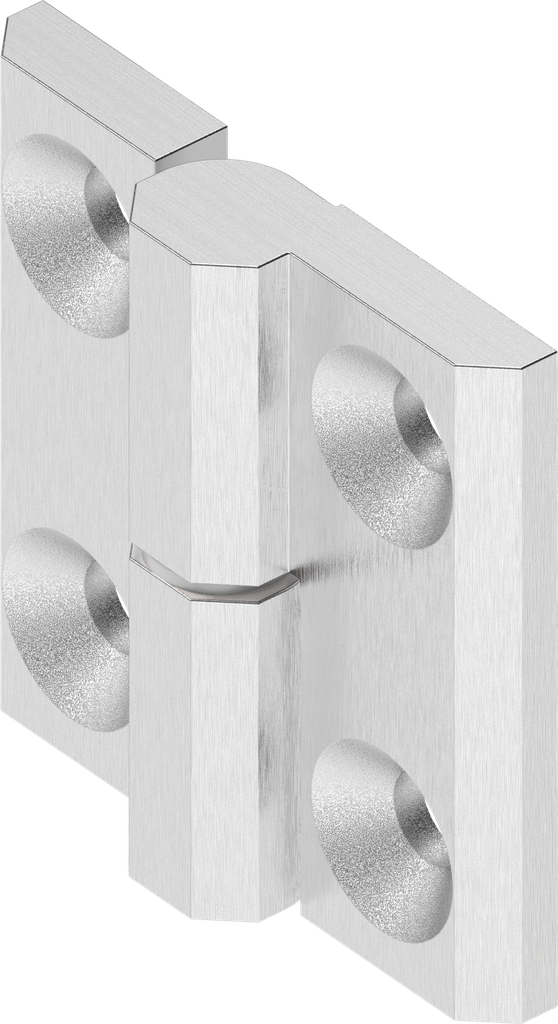

180° Hinge, left version, Stainless steel AISI 316 polished; 1056-U56-PH

https://www.emka.com/products/1056-u56-ph https://www.emka.com/web/image/product.template/61754/image_1920?unique=c1057be

Dimension 50 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left
    Contact Us

    Product information:

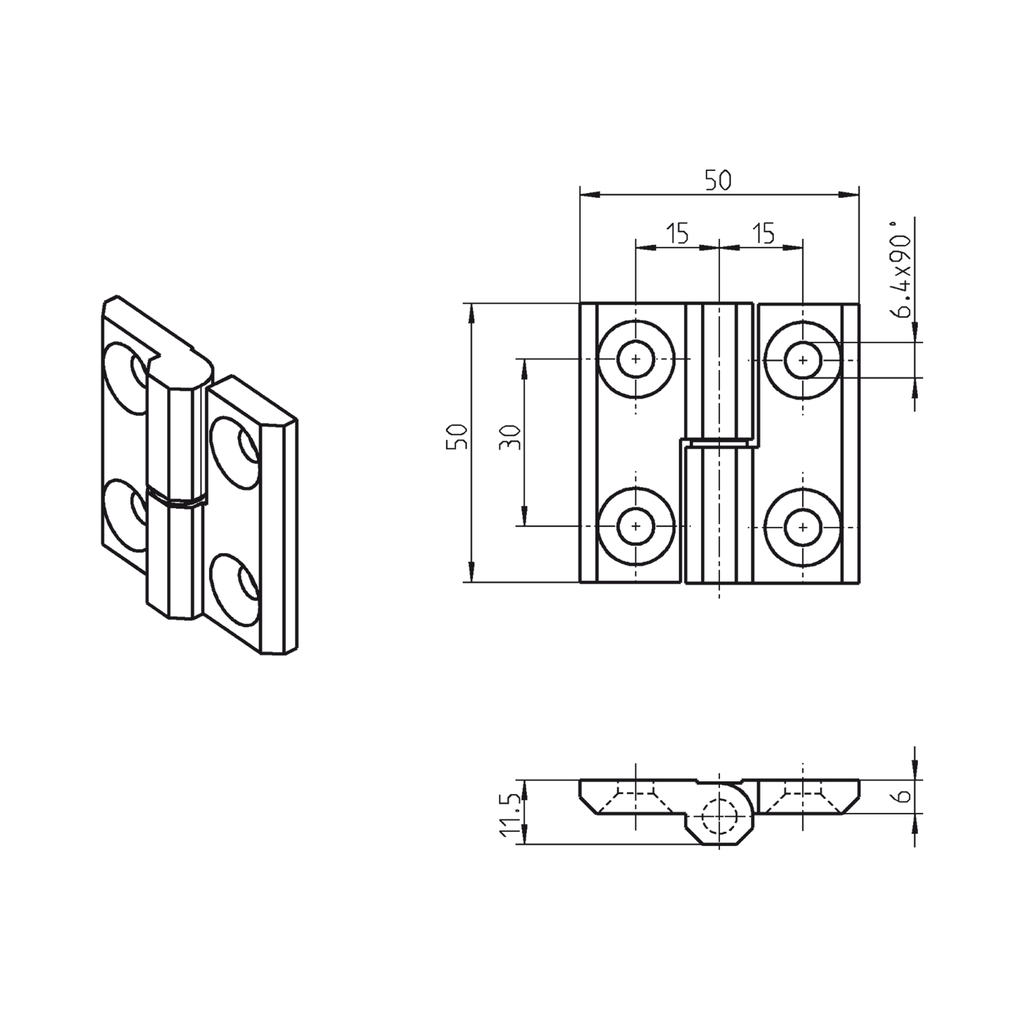

    Zeichnung:
    right-hand version shown
    left-hand version mirror inverted
    Internal Reference: 1056-U56-PH
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-212
    Material of the module : Stainless steel AISI 316
    Surface of the module: polished
    Door return variable: Yes

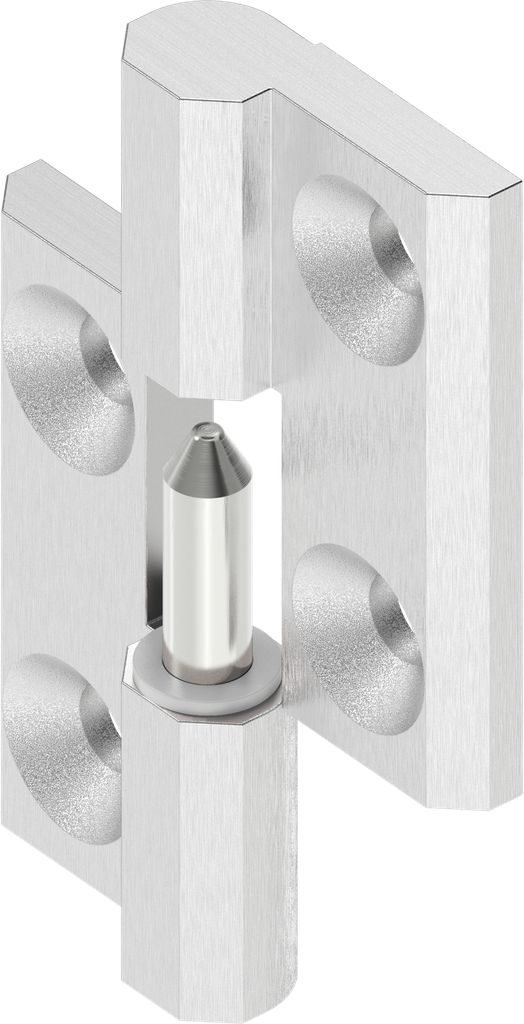

    Detachable: without tools
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left
    Captive pen: Yes
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
