180° Hinge with clamping pin, left version, Polyamide GF black
180° Hinge with clamping pin, left version, Polyamide GF black
180° Hinge, right version, Zinc die black powder-coated
180° Hinge, right version, Zinc die black powder-coated

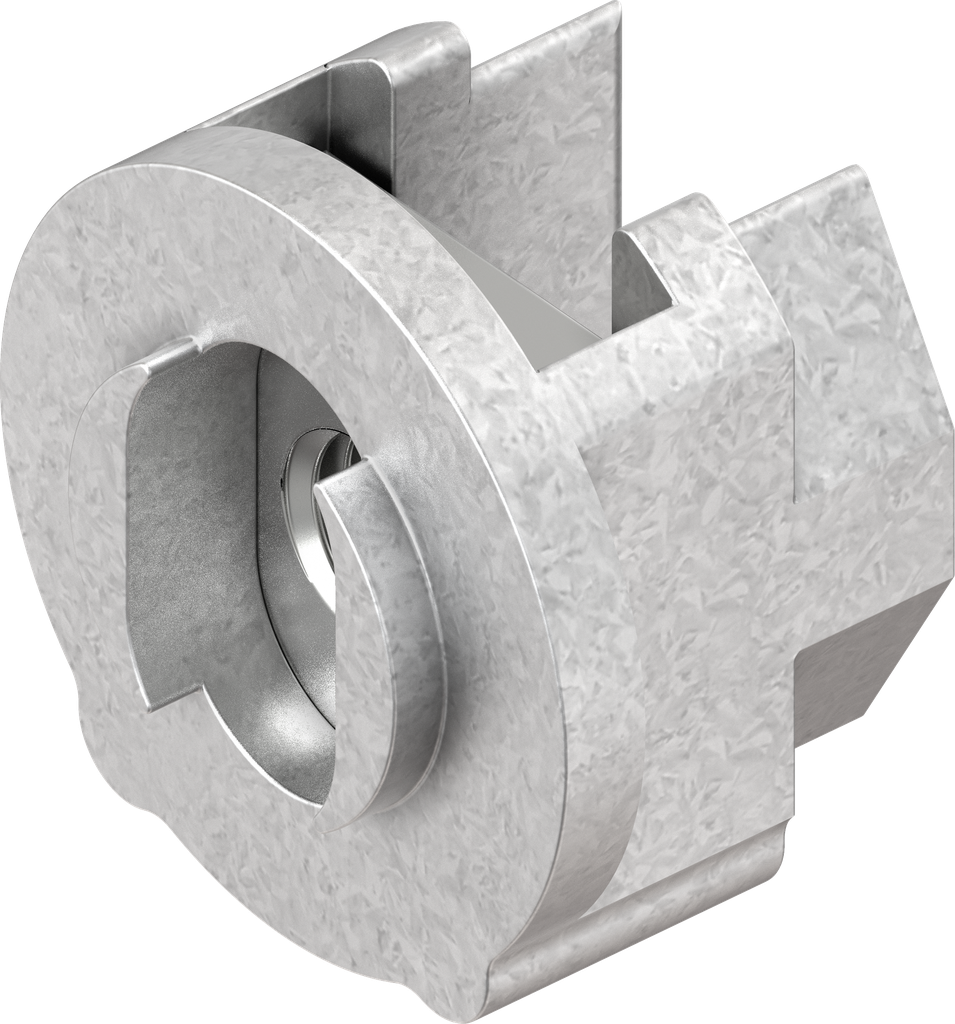

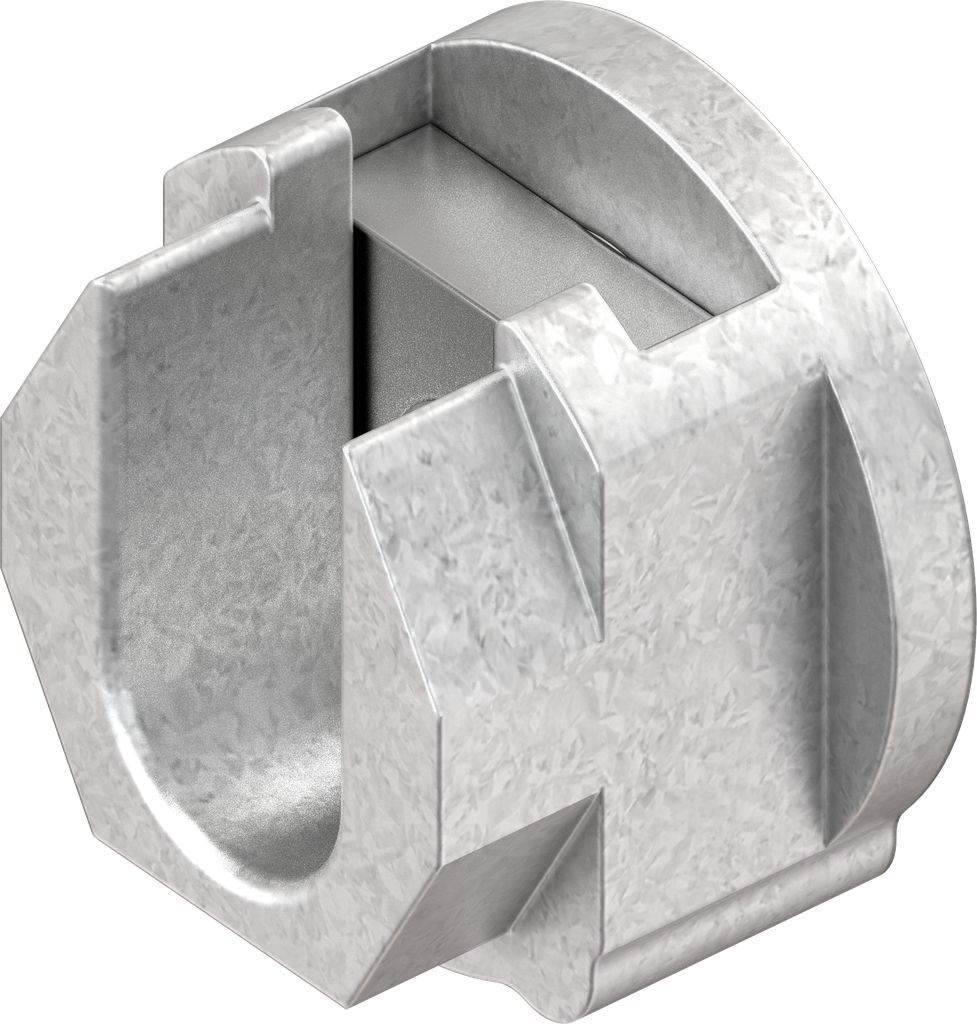

2D nut M6, Zinc die raw; 1056-U51

https://www.emka.com/products/1056-u51 https://www.emka.com/web/image/product.template/61747/image_1920?unique=be44c73

    This combination does not exist.

    Contact Us

    Product Benefits:

    Identification of adjustability is not possible from the outside.

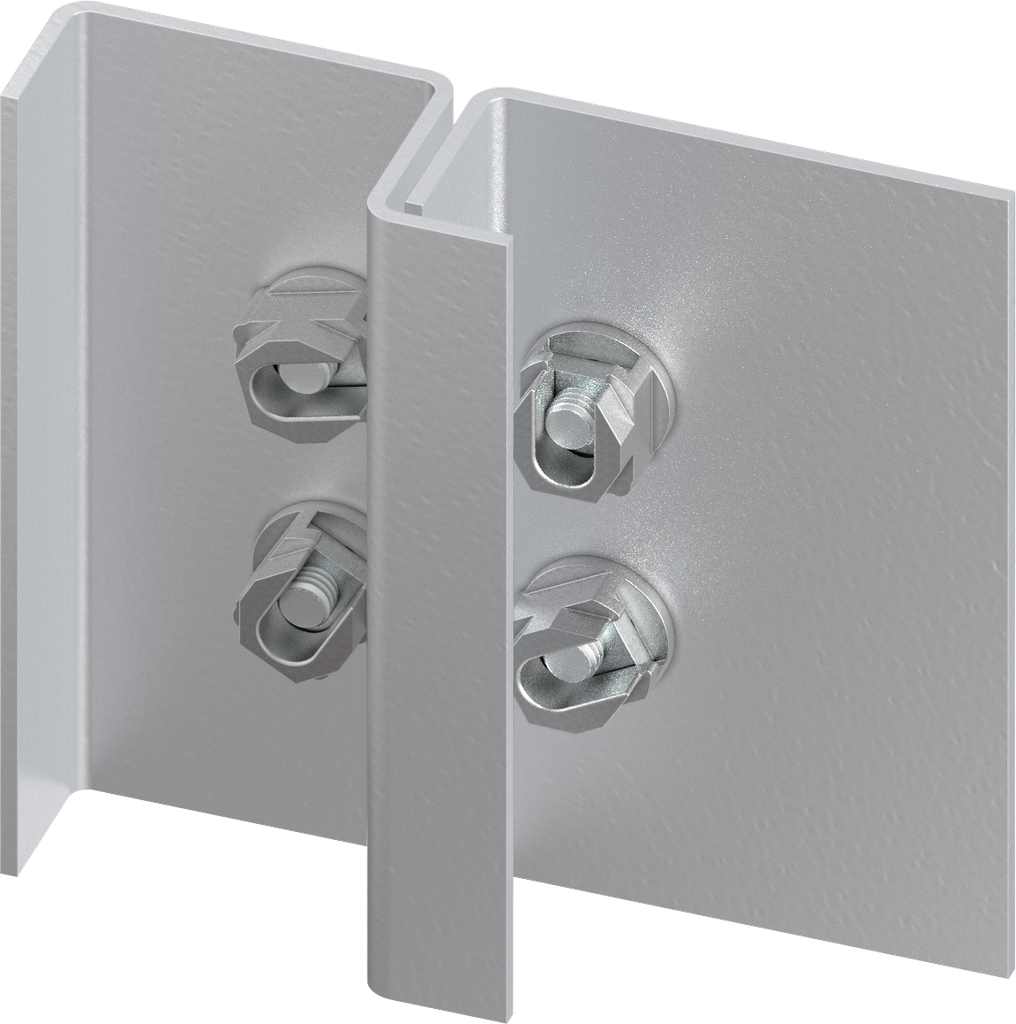

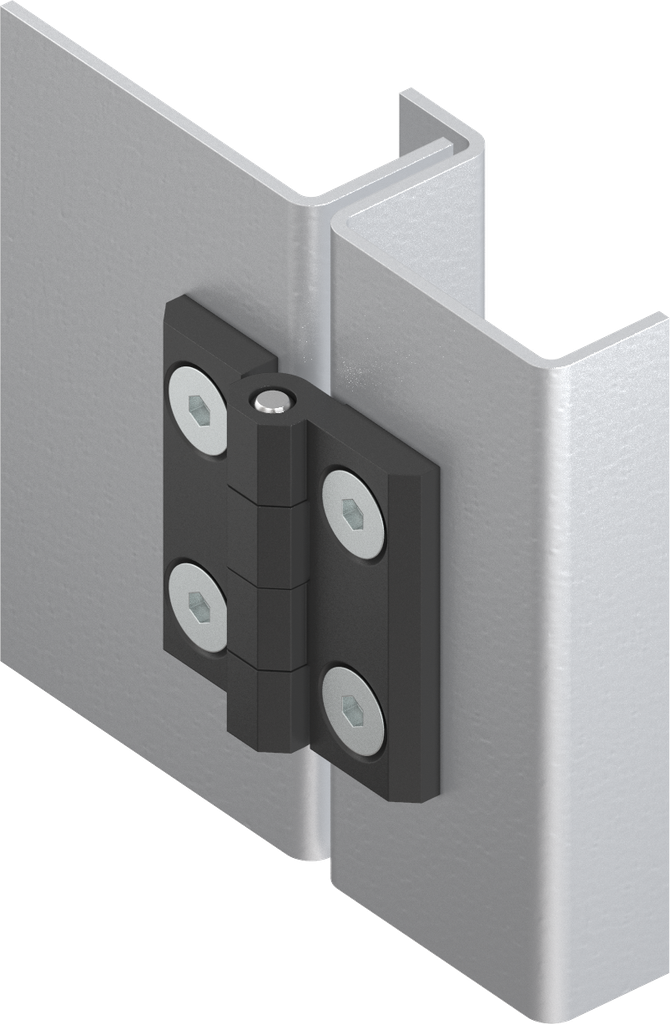

    By using the 2D nut it is possible to use every front-mounted hinge or catch as a 2D hinge or catch.

    Function:

    Each 2D-nut is adjustable ± 2 mm in any direction.

    Akeneo Note:

    The 2D nut has SW 13
    Internal Reference: 1056-U51
    Product Type: 2D nut
    Program: 1056
    Catalog sheet: 8E-120
    Material of the module : Zinc die
    Surface of the module: raw
    2D-Nut: Thread M6
    No Specifications
    View All Products

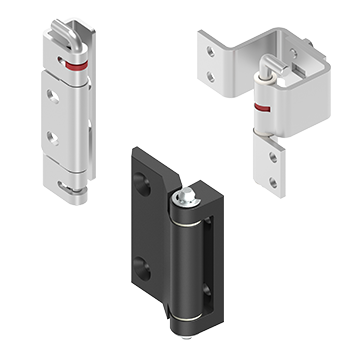

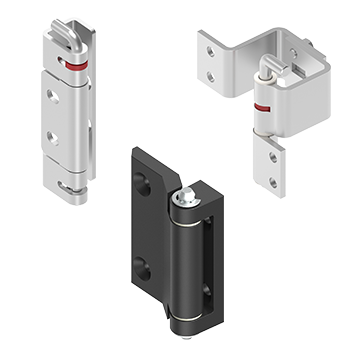

    Hinge

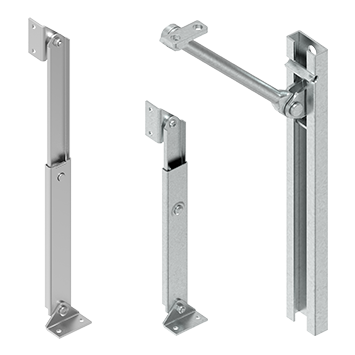

    Cover stay
    Catch
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
