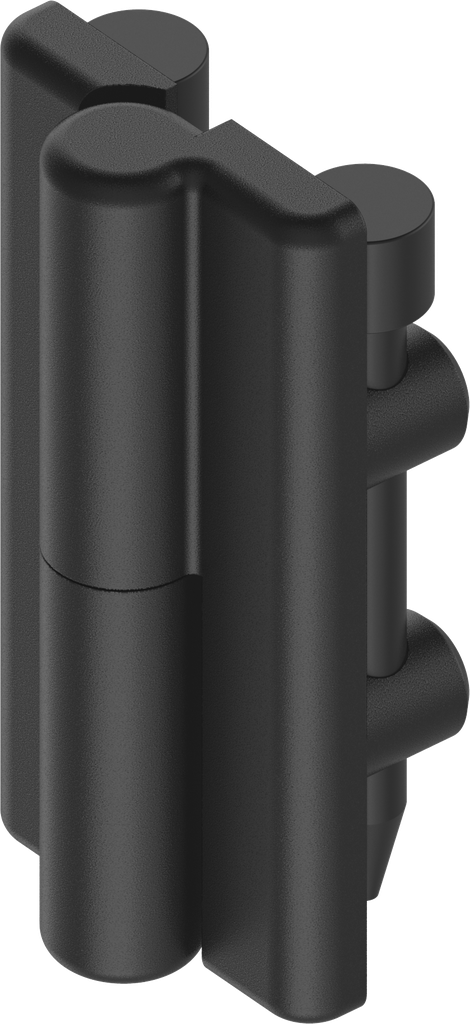

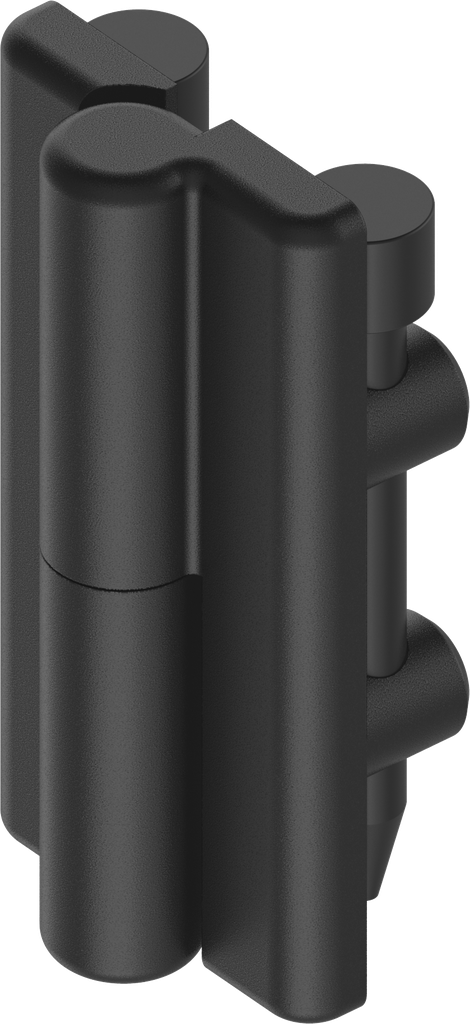

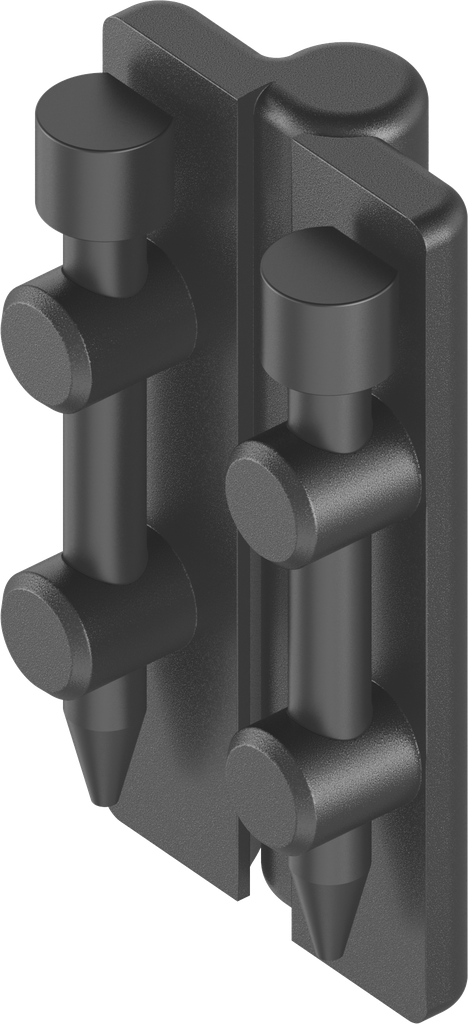

180° Hinge with clamping pin, left version, Polyamide GF black; 1056-U50

https://www.emka.com/products/1056-u50 https://www.emka.com/web/image/product.template/61746/image_1920?unique=ea6e6d7

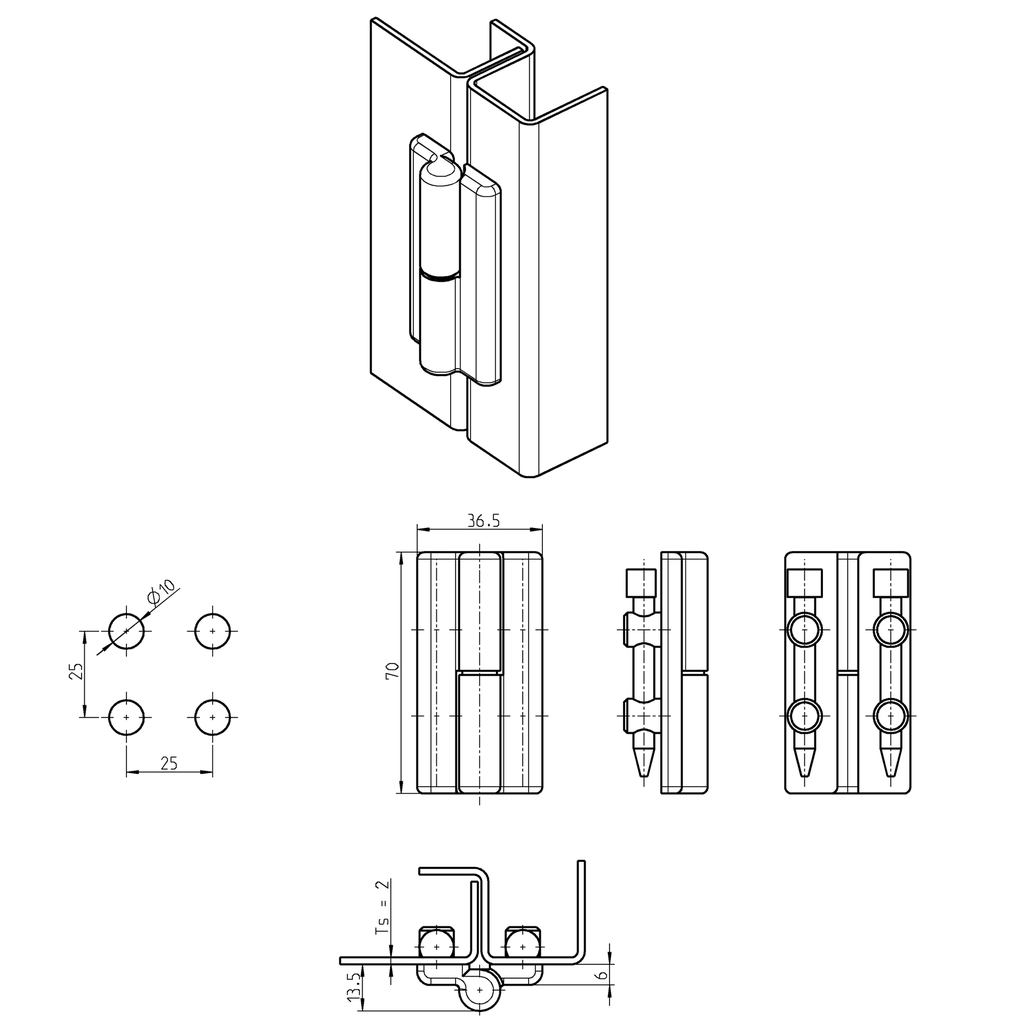

Dimension 36.5 x 70 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left
    Contact Us

    Assembly instruction:

    Hinge is fixed by driving in the polyamide pins. The pull-out force in Z direction is 1500 N.
    Internal Reference: 1056-U50
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-240
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: clamp-on / clip fix
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left
    Door thickness: 1.5 mm
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
