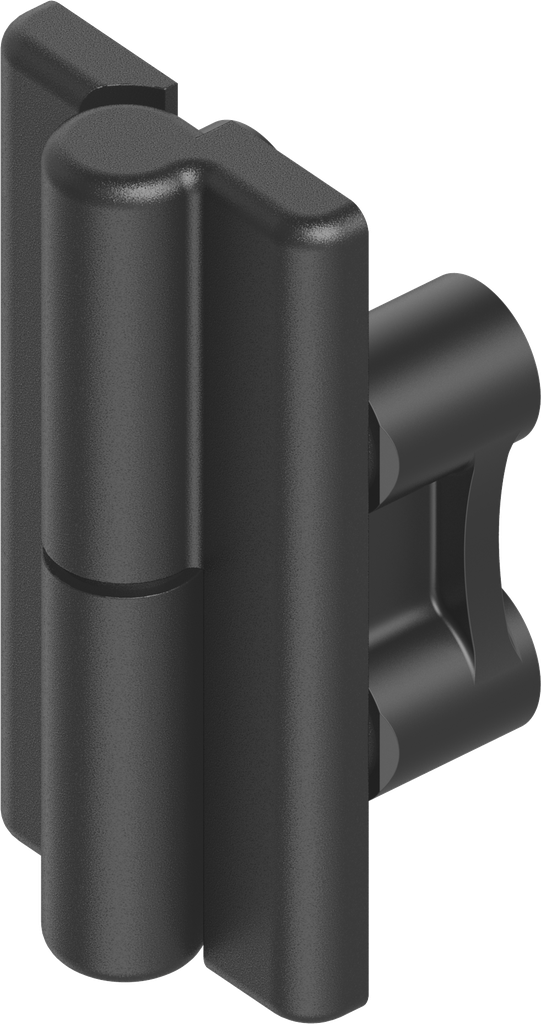

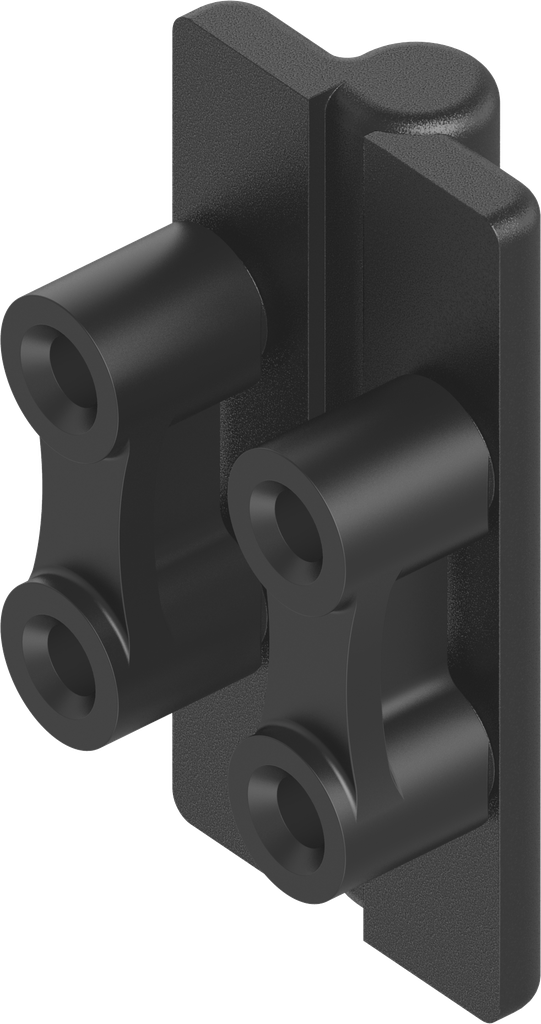

180° Hinge with fastening bow, left version, Zinc die black powder-coated; 1056-U43

https://www.emka.com/products/1056-u43 https://www.emka.com/web/image/product.template/61743/image_1920?unique=68940ab

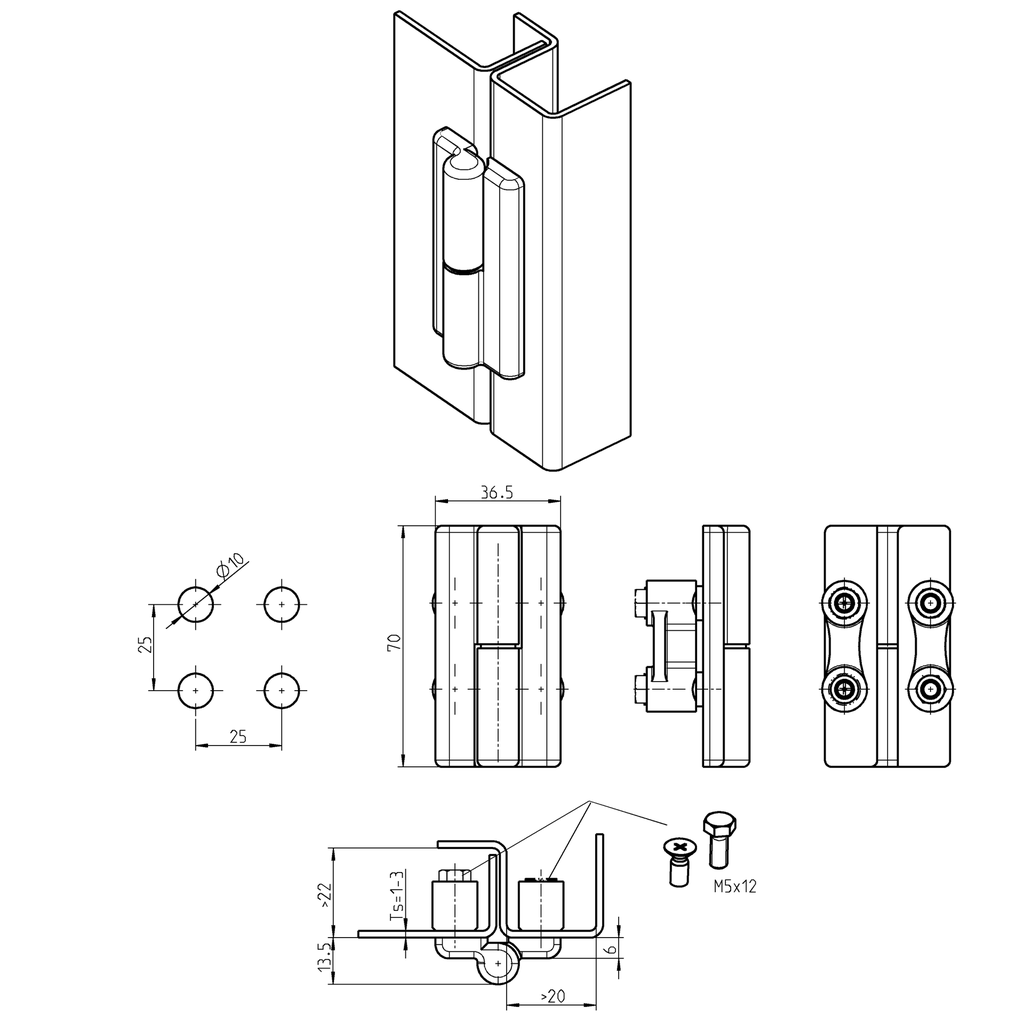

Dimension 36.5 x 70 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left
    Contact Us
    Internal Reference: 1056-U43
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-240
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Dimension A, Variable: 22 mm
    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 3 mm
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed
    Door Version : Left
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
