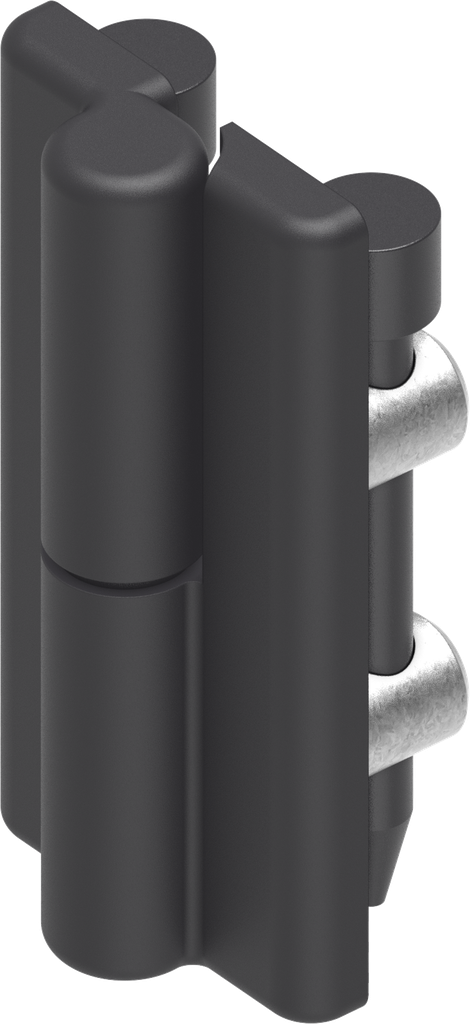

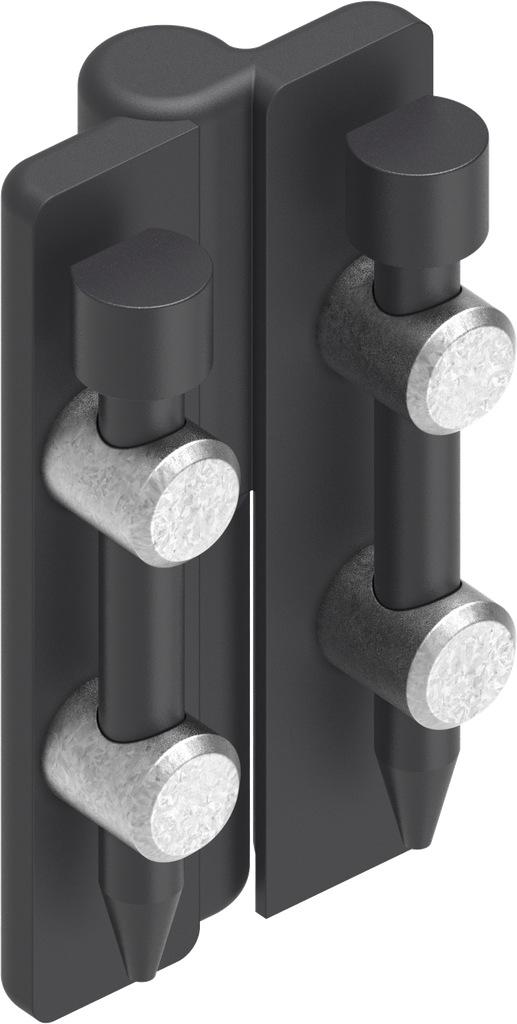

180° Hinge with clamping pin, right version, Zinc die black powder-coated; 1056-U35

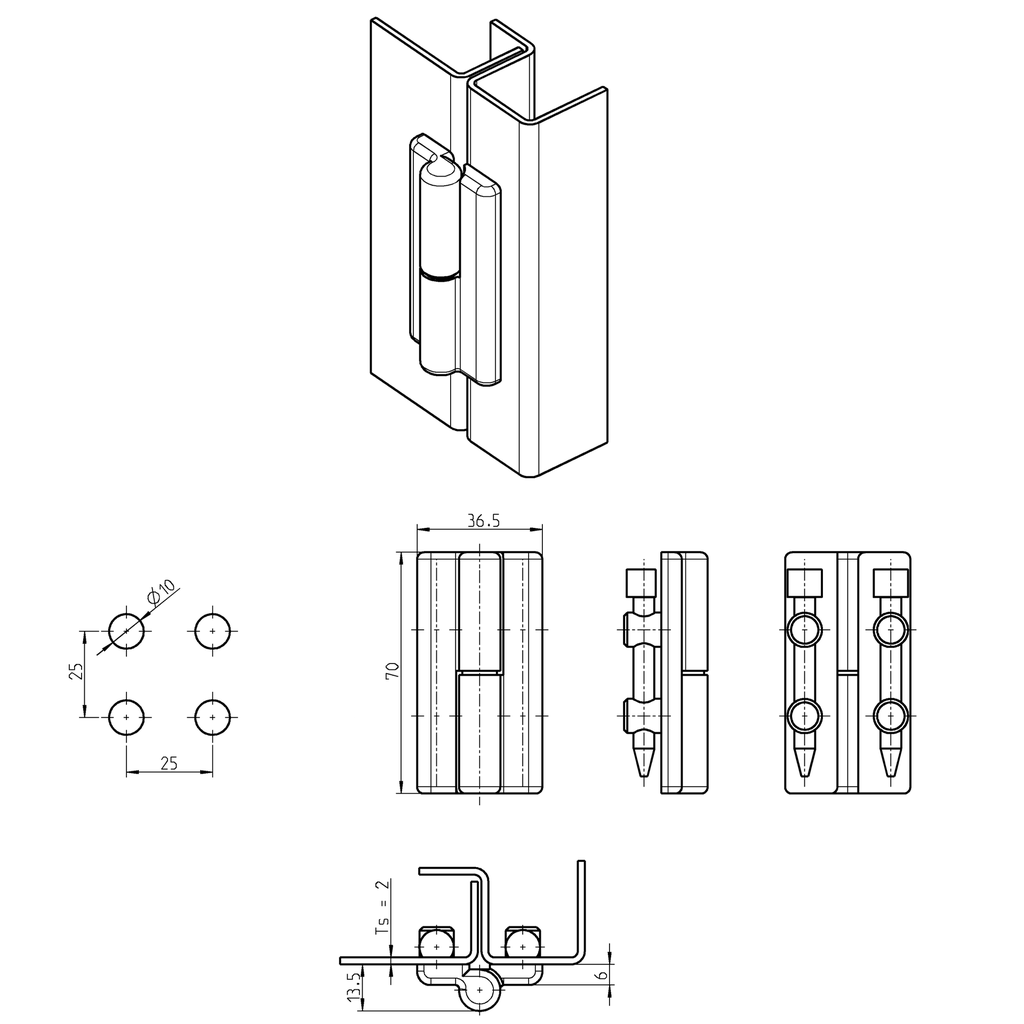

Dimension 36.5 x 70 mm
Assembly instruction:
Hinge is fixed by driving in the polyamide pins.
The pull-out force in Z direction is 1500 N.
Internal Reference:
1056-U35
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-240
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
clamp-on / clip fix
Type of fastening on the door:
clamp-on / clip fix
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Right
Door thickness:
2 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
