180° Hinge with clamping pin, left version, Zinc die black powder-coated
180° Hinge with clamping pin, left version, Zinc die black powder-coated
180° Hinge, Stainless steel AISI 316 polished
180° Hinge, Stainless steel AISI 316 polished

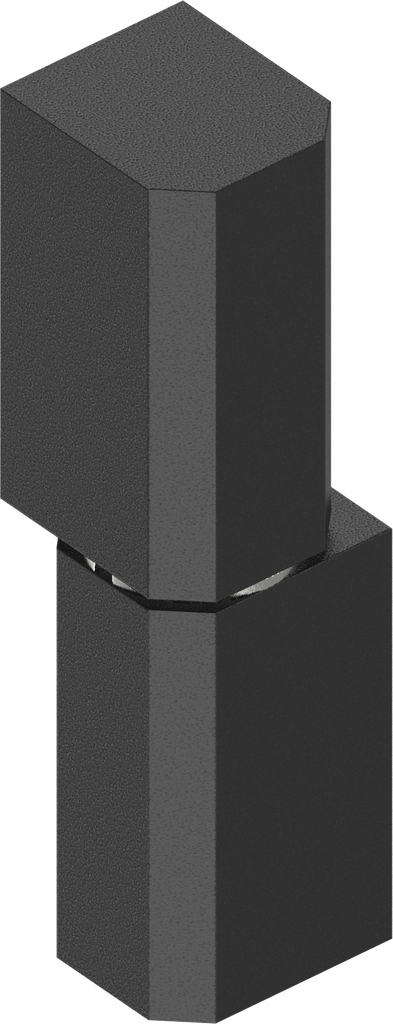

180° Hinge, Zinc die black powder-coated; 1056-U34

https://www.emka.com/products/1056-u34 https://www.emka.com/web/image/product.template/61734/image_1920?unique=06d37ee

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1056-U34
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4A-285
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
