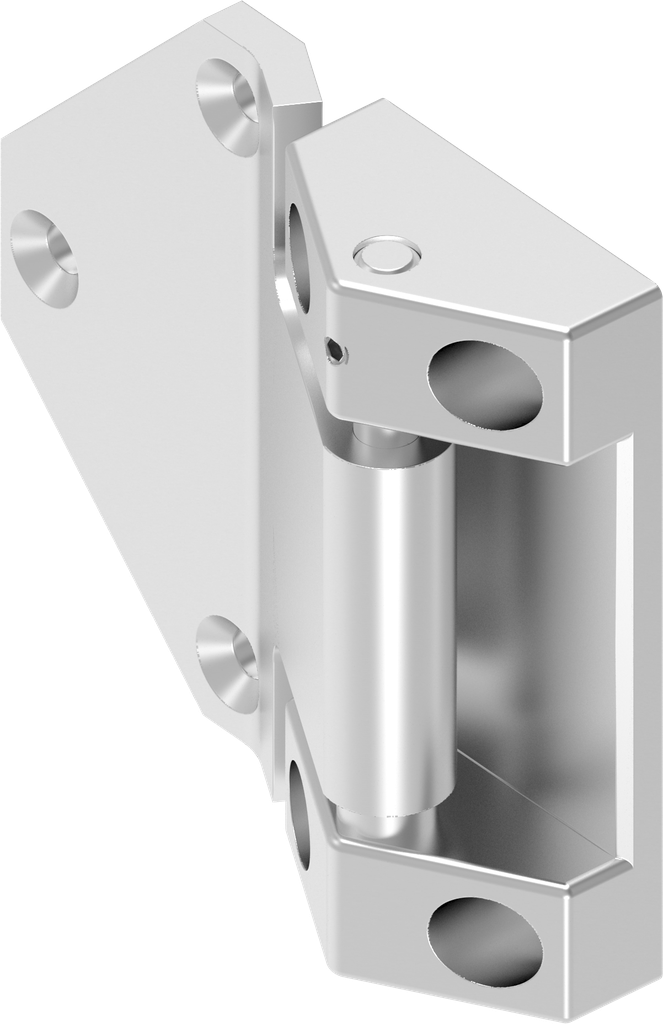

180° Hinge adjustable, Stainless steel AISI 316Ti; 1054-U39

https://www.emka.com/products/1054-u39 https://www.emka.com/web/image/product.template/61567/image_1920?unique=c61ba53

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us

    Product information:

    Right-hand or left-hand version by turning around the hinge leaf.
    Internal Reference: 1054-U39
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4B-320
    Material of the module : Stainless steel AISI 316Ti
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Adjustable : Height adjustment
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
