180° 2D Hinge, Zinc die black powder-coated
180° 2D Hinge, Zinc die black powder-coated
180° 3D Hinge, Zinc die black powder-coated
180° 3D Hinge, Zinc die black powder-coated

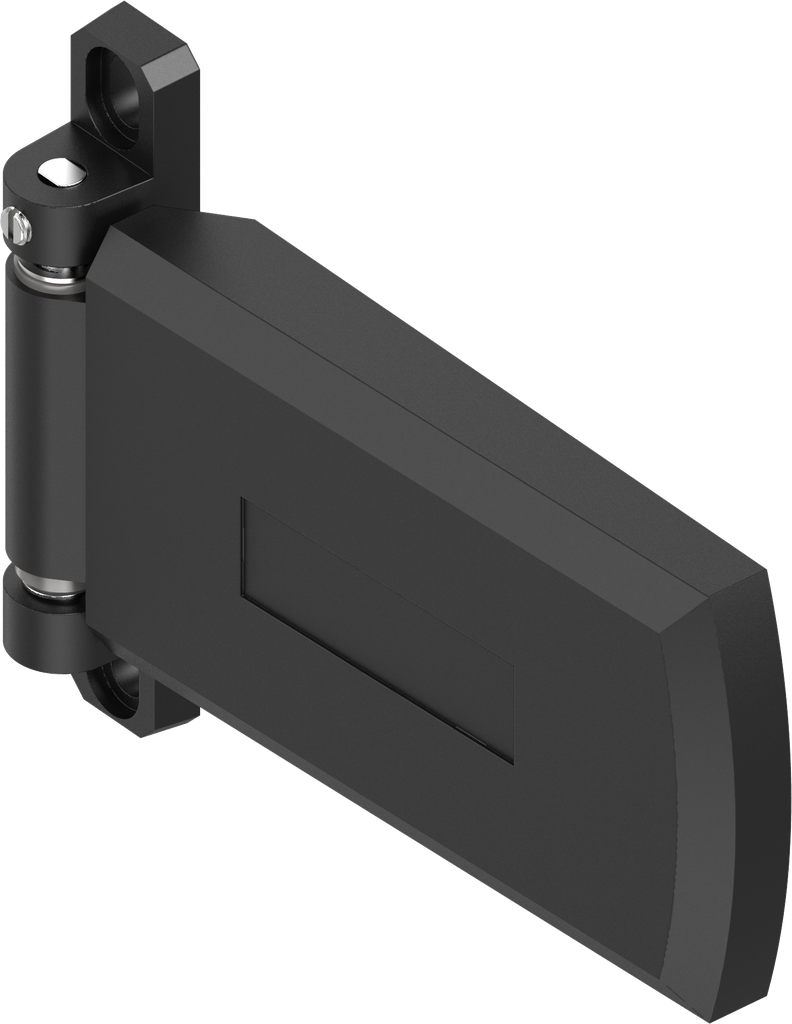

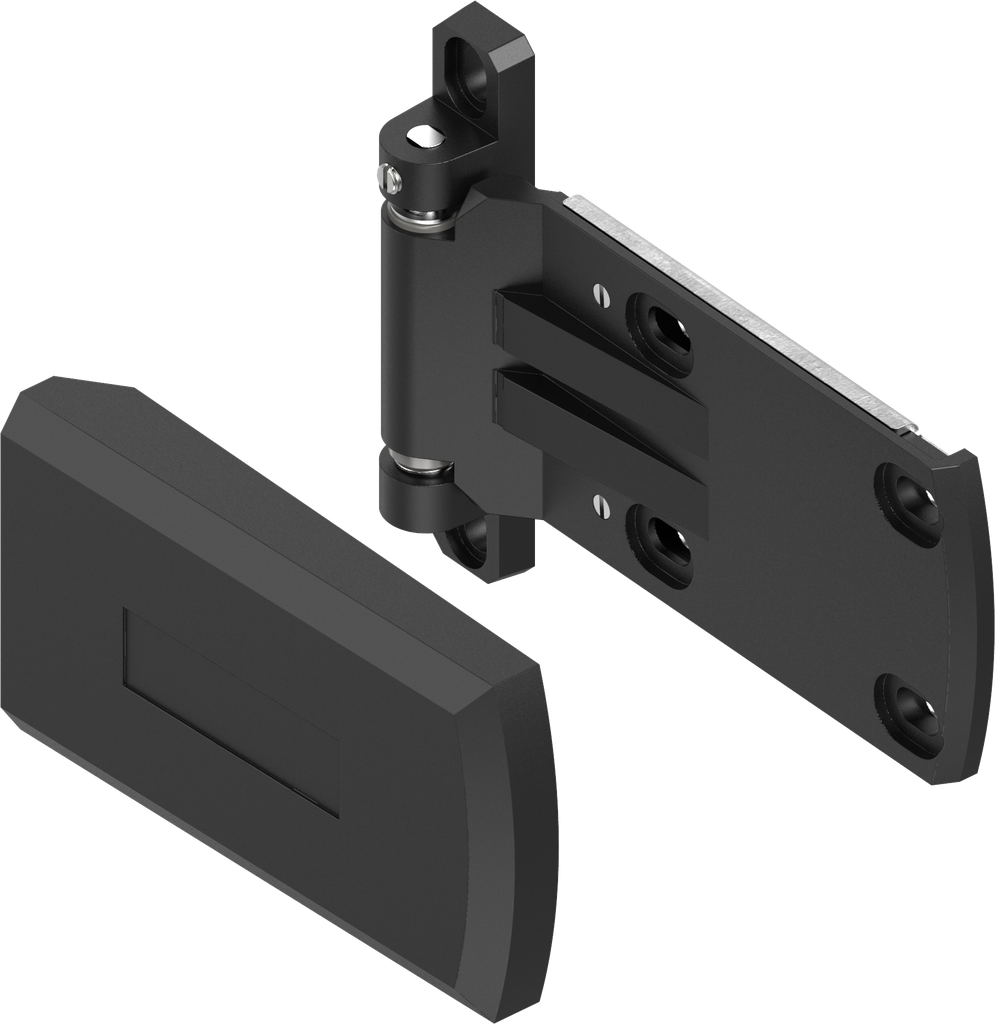

180° 3D Hinge, Zinc die black powder-coated; 1054-U36-LI

https://www.emka.com/products/1054-u36-li https://www.emka.com/web/image/product.template/61564/image_1920?unique=4c1fe11

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left
    Contact Us
    Internal Reference: 1054-U36-LI
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4B-255
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on
    Type of fastening on the door: screw-on from outside
    Adjustable : 3D
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left
    Captive pen: Yes
    No Specifications
    No Matching Products

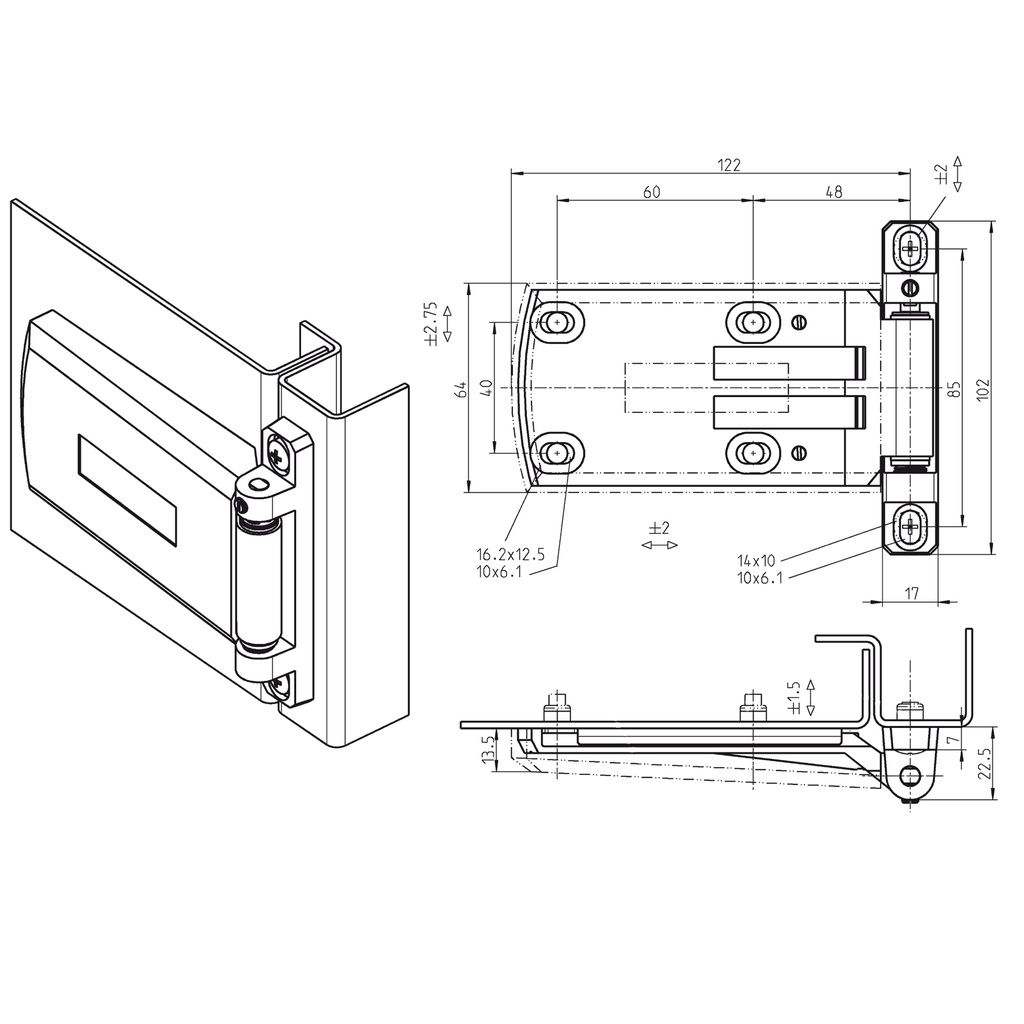

    Here you can find the product data sheets and CAD files of this product
