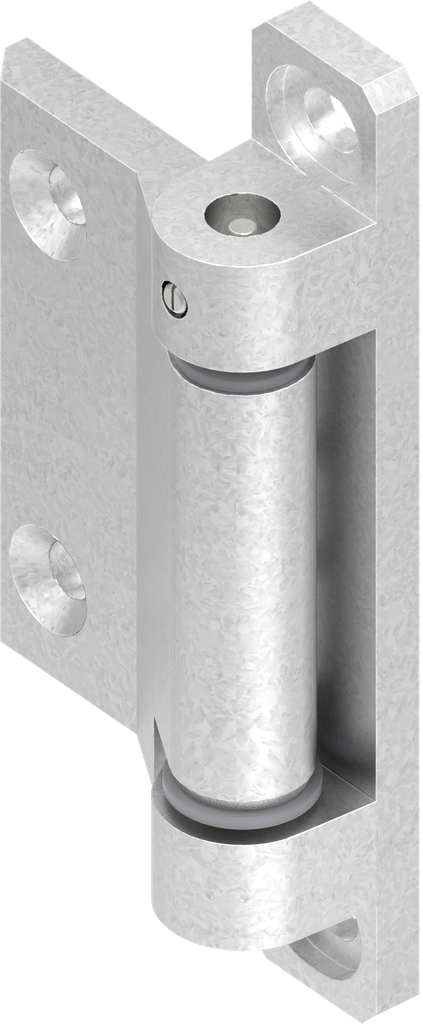

Hinge, Zinc die raw
180° 2D Hinge, Zinc die black powder-coated
Product information:
Right or left version by turning around the hinge leaf.Hinge pin self-retaining.
Internal Reference:
1054-U34-02
Barcode:
1054-U00034-0000002
Product Type:
Hinge
Program:
1054
Catalog sheet:
4B-250
Material of the module :
Zinc die
Surface of the module:
raw
Door return variable:
Yes
Execution:
B
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Adjustable :
2D
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
concealed
Door Version :
Left,Right
No Specifications
No Matching Products

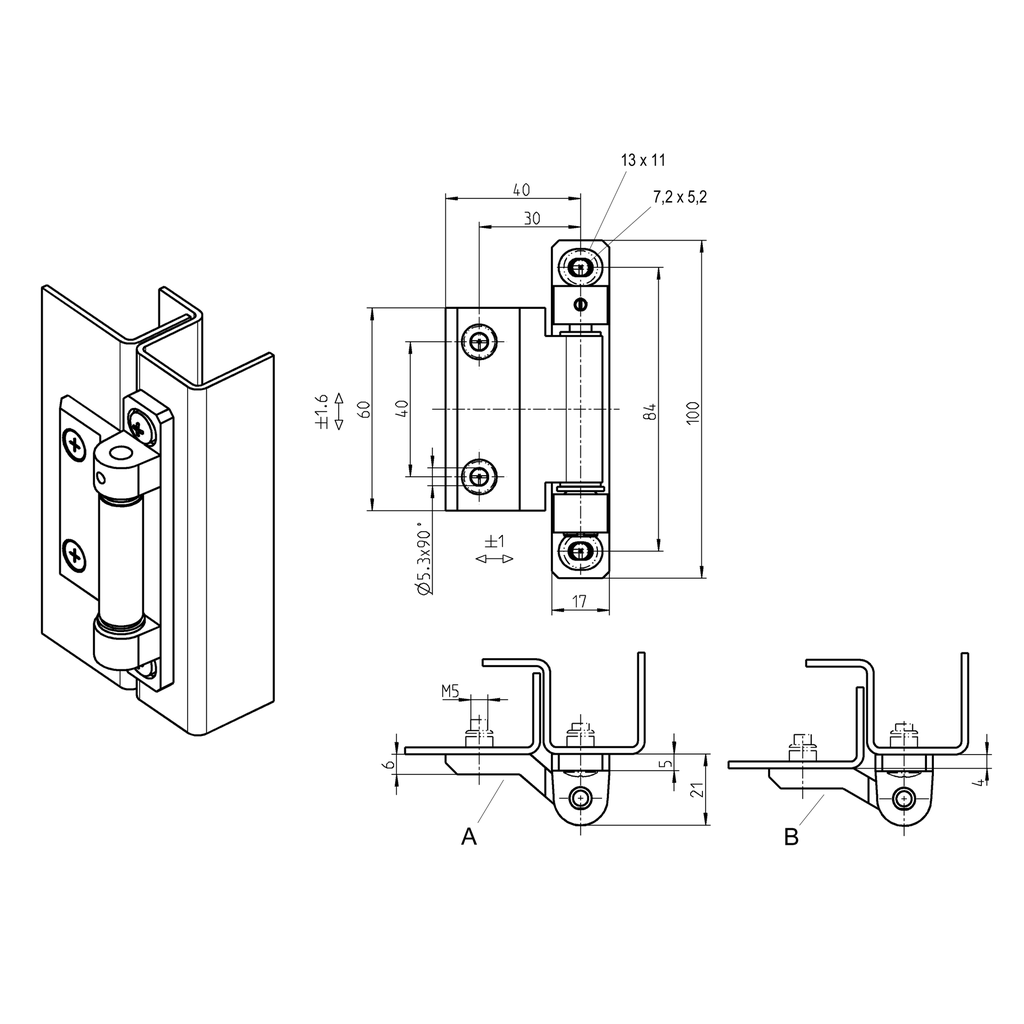

Here you can find the product data sheets and CAD files of this product
