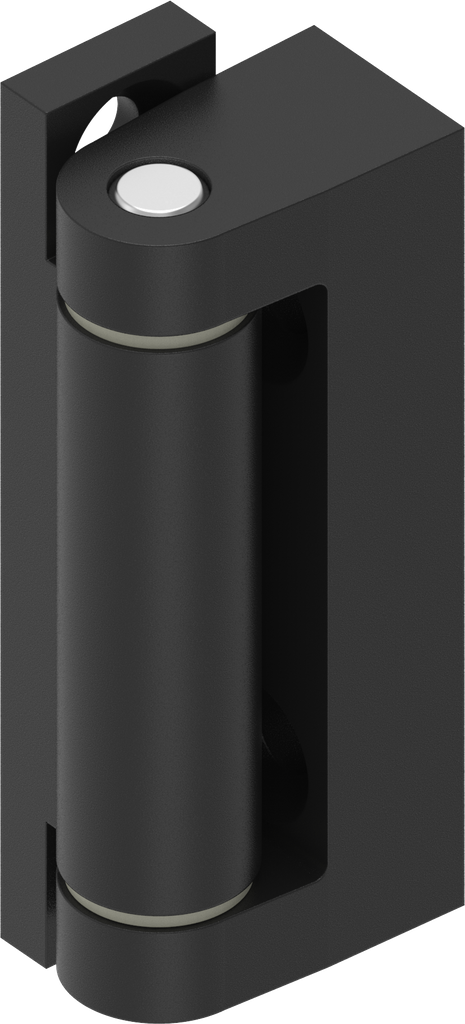

Hinge, Zinc die black powder-coated; 1054-U17

https://www.emka.com/products/1054-u17 https://www.emka.com/web/image/product.template/61553/image_1920?unique=eac3749

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1054-U17
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4A-310
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Execution: B
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
