Rod control, Steel zinc-plated
Rod control, Steel zinc-plated
4-Lip profile H = 18.5 mm, EPDM 45 ± 5 Shore A black
4-Lip profile H = 18.5 mm, EPDM 45 ± 5 Shore A black

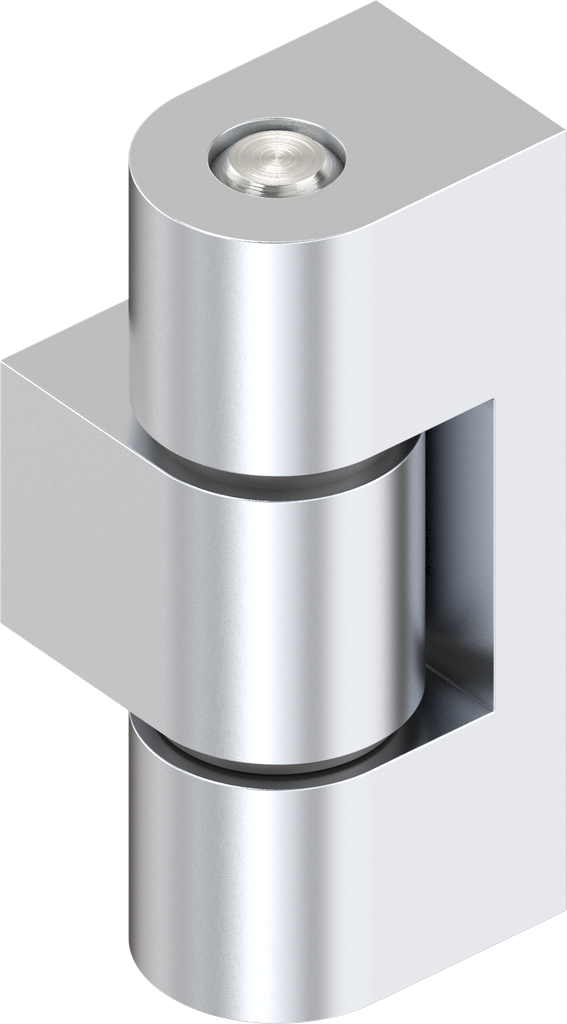

180° Hinge, Zinc die chrome-plated; 1054-U1

https://www.emka.com/products/1054-u1 https://www.emka.com/web/image/product.template/76380/image_1920?unique=df6f954

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1054-U1
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4A-280
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products

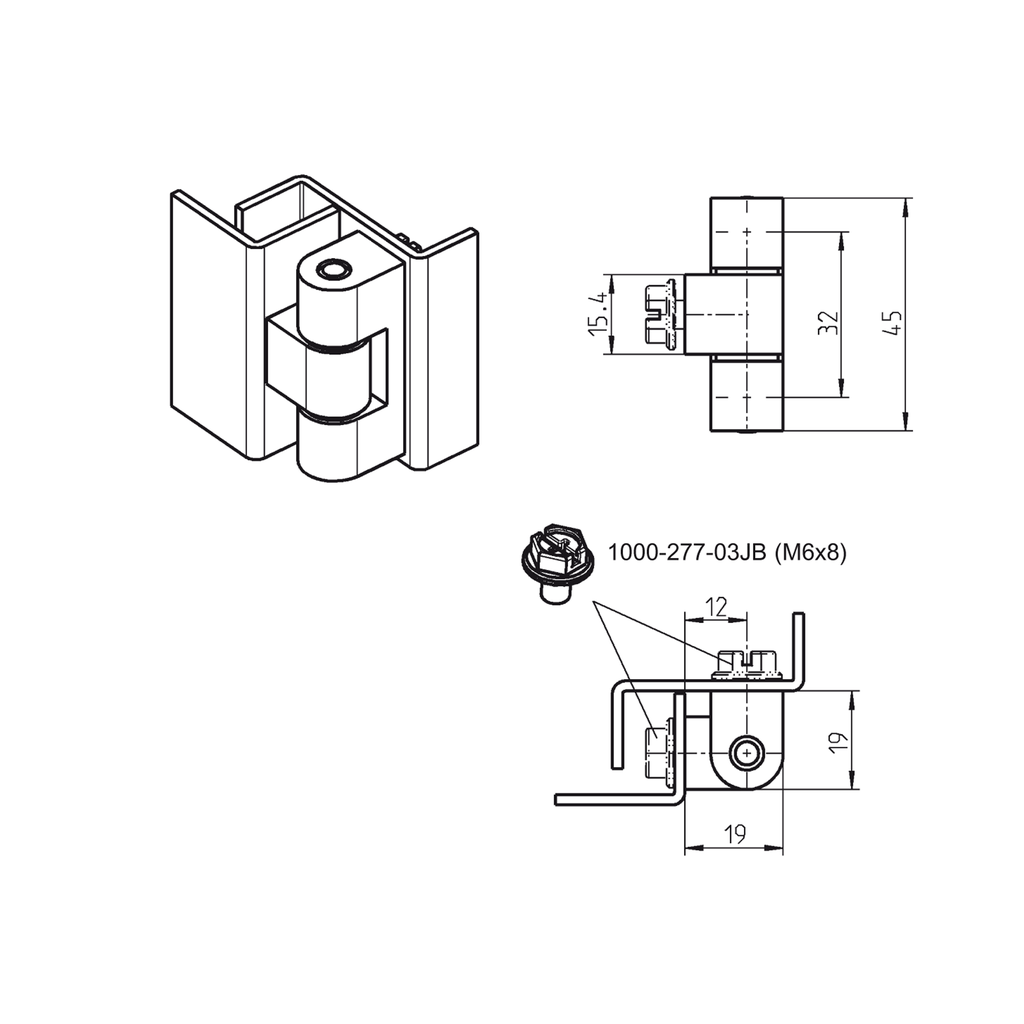

    Here you can find the product data sheets and CAD files of this product
