Round rod L = 800 mm, Steel zinc-plated
Round rod L = 800 mm, Steel zinc-plated
Round rod L = 1000 mm, Steel zinc-plated
Round rod L = 1000 mm, Steel zinc-plated

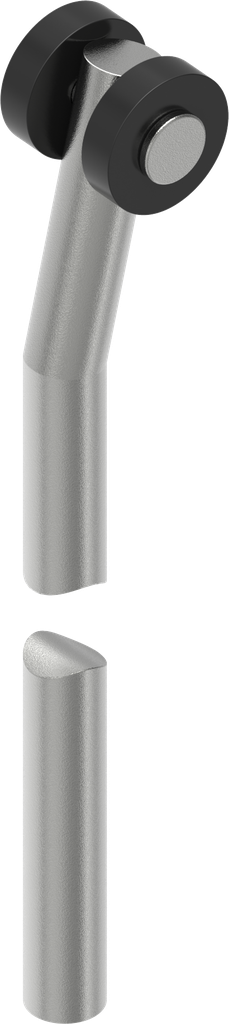

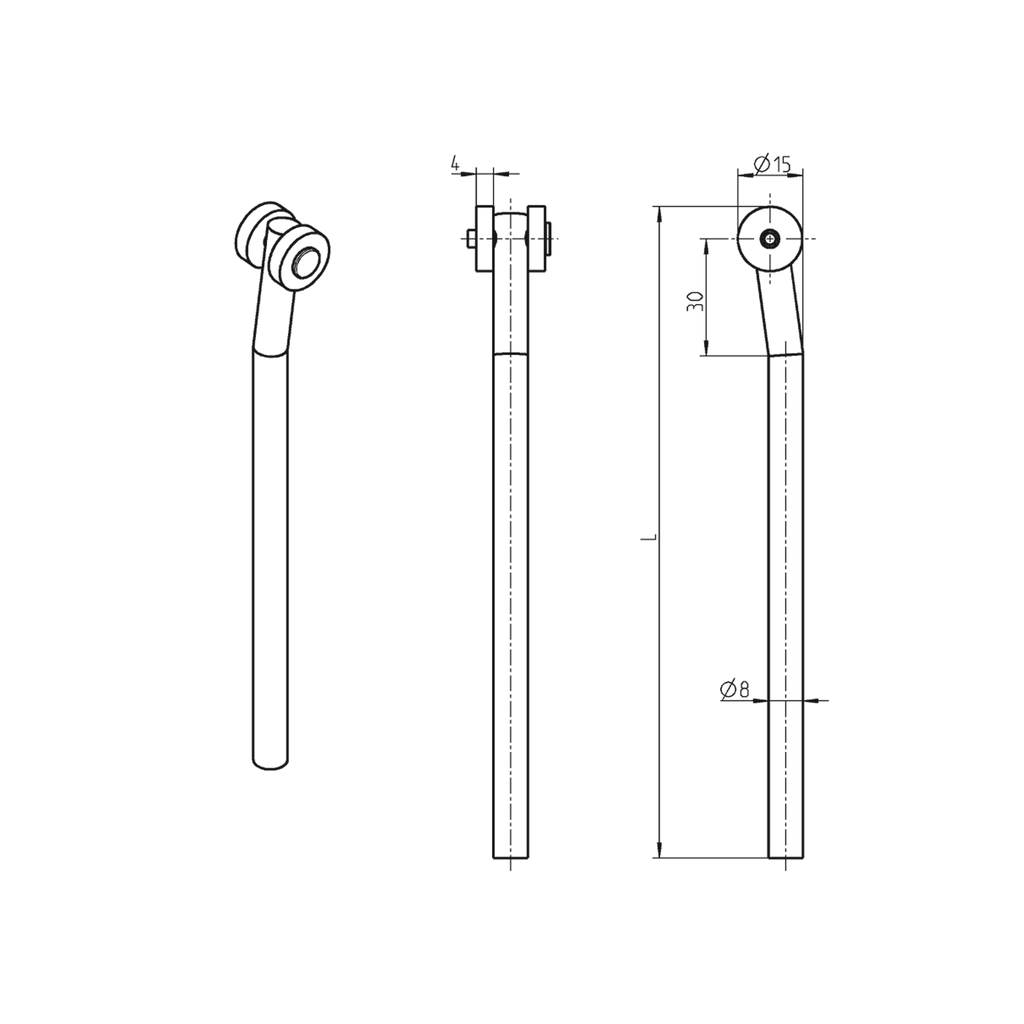

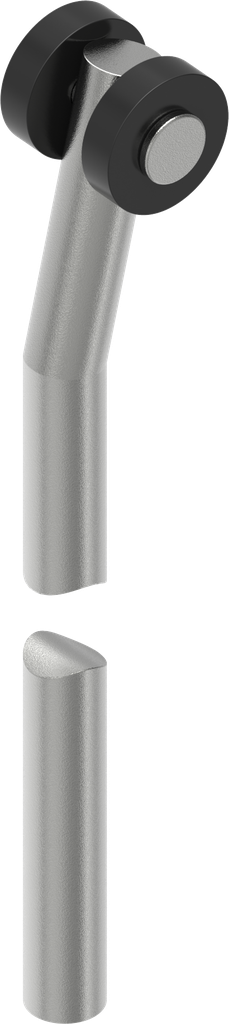

Round rod L = 900 mm, Steel zinc-plated; 1049-U6

https://www.emka.com/products/1049-u6 https://www.emka.com/web/image/product.template/211970/image_1920?unique=9dc1d37

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1049-U6
    Product Type: Rod
    Program: 1049
    Catalog sheet: 3ZB-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing
    Length(L-dimension): 900 mm
    Round bar inside the seal: Round rod with roller and butt
    No Specifications
    View All Products
    Adapter for round rod
    Rod control
    Rod guide
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-620
    Product data sheet
    CAD file | 1049-U6_stp
