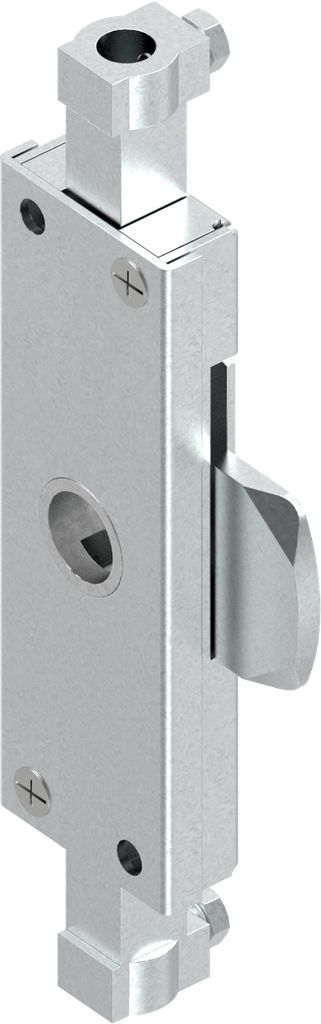

Rod control, left version, for round rods stroke 18, Steel zinc-plated; 1049-U20

https://www.emka.com/products/1049-u20 https://www.emka.com/web/image/product.template/61456/image_1920?unique=b29f9bb

Locking systems for high loads

    This combination does not exist.

    Inside the sealing Left
    Contact Us

    Product information:

    Rod control for insertable rods Ø 8

    When mounted without insert part, the rod control can be operated with a socket spanner 1004-19.
    Internal Reference: 1049-U20
    Product Type: Rod control
    Program: 1049
    Catalog sheet: 2B-130
    Material of the module : Steel
    Surface of the module: zinc-plated

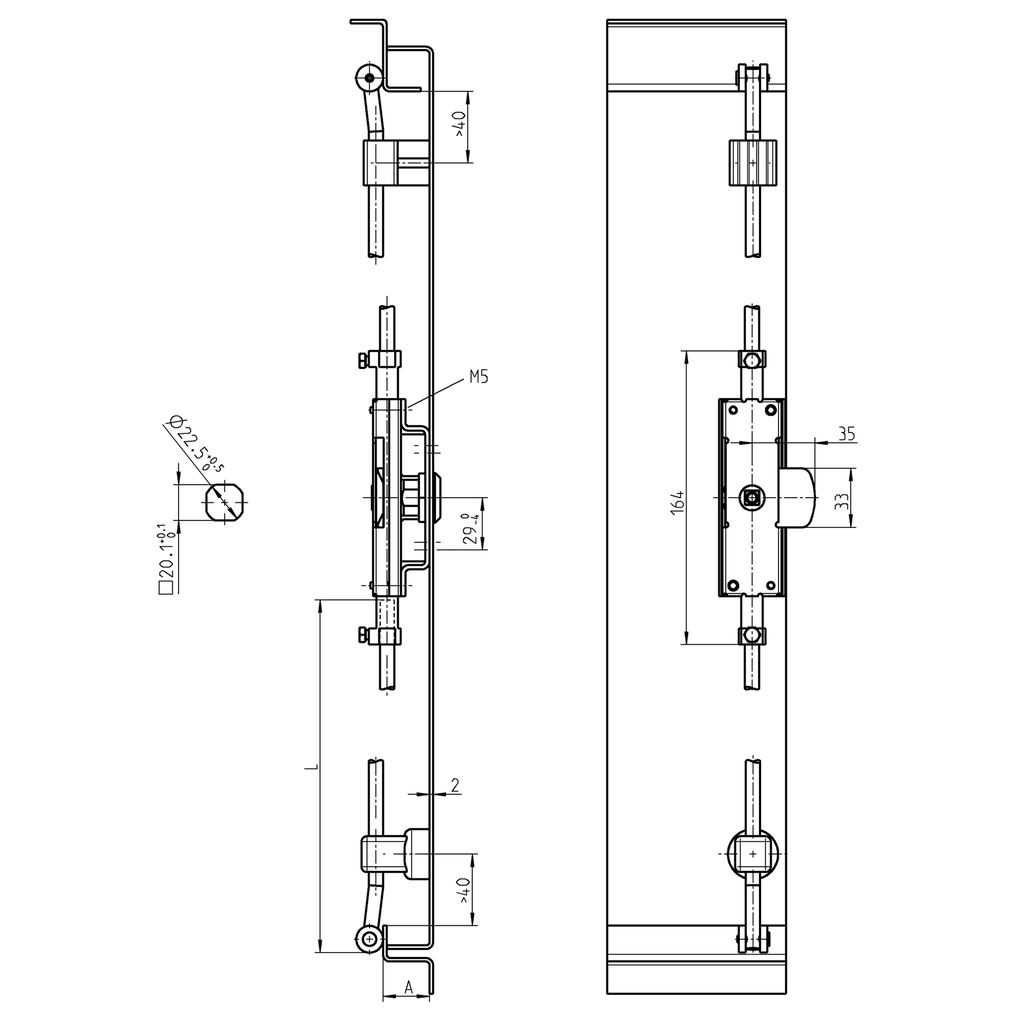

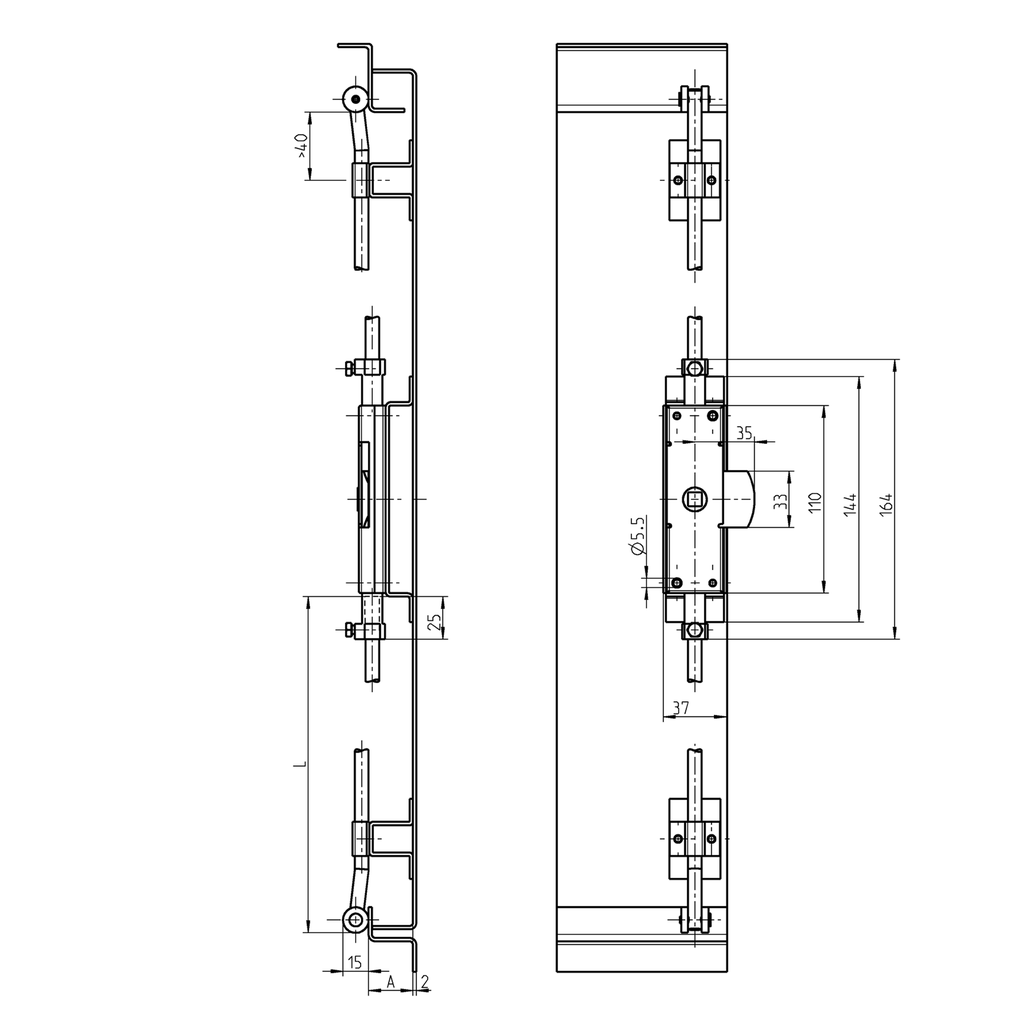

    Dimention A: A 20,A 26
    Rod: Round rod
    Connection rod mount: Rod holder Ø8 x 25
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Left
    No Specifications
