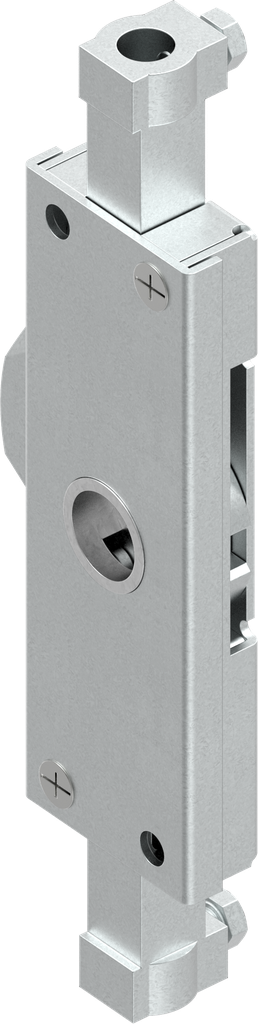

Rod control, right version, for round rods stroke 18, Steel zinc-plated; 1049-U19

https://www.emka.com/products/1049-u19 https://www.emka.com/web/image/product.template/61455/image_1920?unique=91e9147

Locking systems for high loads

    This combination does not exist.

    Inside the sealing Right
    Contact Us

    Product information:

    Rod control for insertable rods Ø 8

    When mounted without insert part, the rod control can be operated with a socket spanner 1004-19.
    Internal Reference: 1049-U19
    Product Type: Rod control
    Program: 1049
    Catalog sheet: 2B-130
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimention A: A 20,A 26
    Rod: Round rod
    Connection rod mount: Rod holder Ø8 x 25
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Right
    No Specifications
    View All Products
    Insert
    Rod control accessories
    Housing
    Adapter

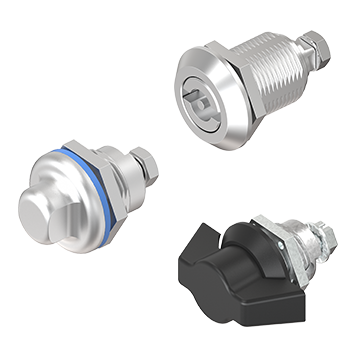

    Quarter turn
    Rod
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2A-120
    Product data sheet
    CAD file | 1049-U19_igs
    CAD file | 1049-U19_stp
