Round rod L = 551 - 600 mm, Steel zinc-plated
Round rod L = 551 - 600 mm, Steel zinc-plated
Round rod L = 651 - 700 mm, Steel zinc-plated
Round rod L = 651 - 700 mm, Steel zinc-plated

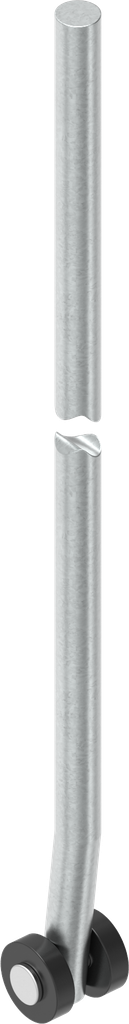

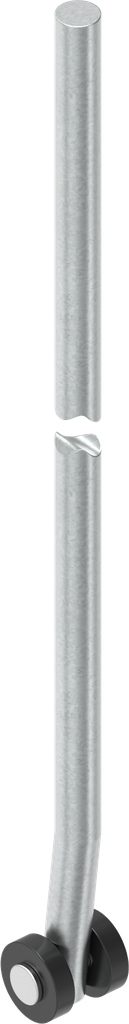

Round rod L = 601 - 650 mm, Steel zinc-plated; 1049-U18-06

https://www.emka.com/products/1049-u18-06 https://www.emka.com/web/image/product.template/211984/image_1920?unique=ab9ec66

    This combination does not exist.

    Inside the sealing
    Contact Us

    Order / Calculation example:

    Order no. for a round rod with rollers and a length of 1034 mm = 1049-U18-L 1034
    Internal Reference: 1049-U18-06
    Product Type: Rod
    Program: 1049
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing
    Dimension L up to: 650 mm
    Dimension L from: 601 mm
    Length(L-dimension): 601 - 650 mm
    Round bar inside the seal: Round rod with roller and butt
    No Specifications
    View All Products
    Adapter for round rod
    Rod control
    Rod guide
    Rod control

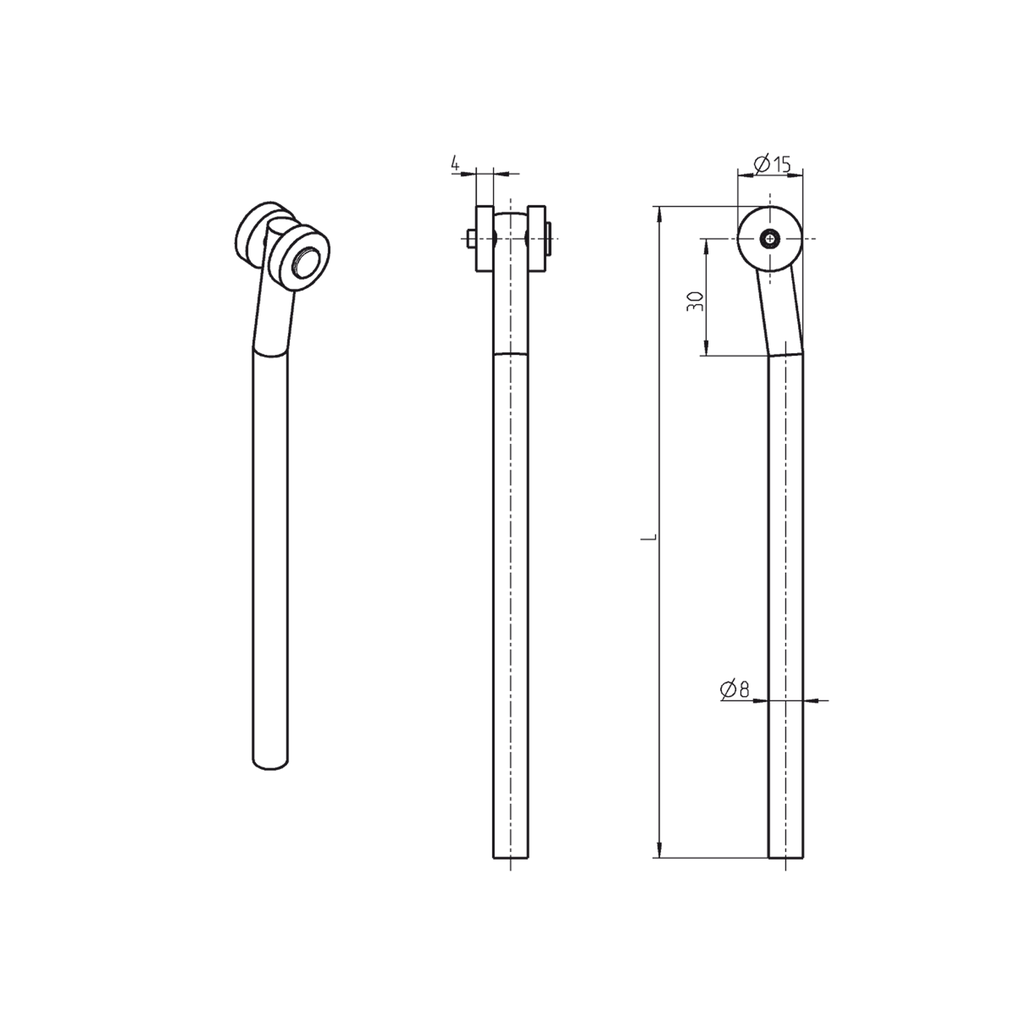

    Here you can find the product data sheets and CAD files of this product
