Round rod L = 401 - 450 mm, Steel zinc-plated
Round rod L = 501 - 550 mm, Steel zinc-plated
Order / Calculation example:
Order no. for a round rod with rollers and a length of 1034 mm = 1049-19-L 1034
Internal Reference:
1049-19-03
Product Type:
Rod
Material:
Steel
Program:
1049
Surface:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Number of Possible Locking Points:
2 points, 3 point
Mounting Positions :
Inside the sealing
Dimension L up to:
500 mm
Dimension L from:
451 mm
Length(L-dimension):
451 - 500 mm

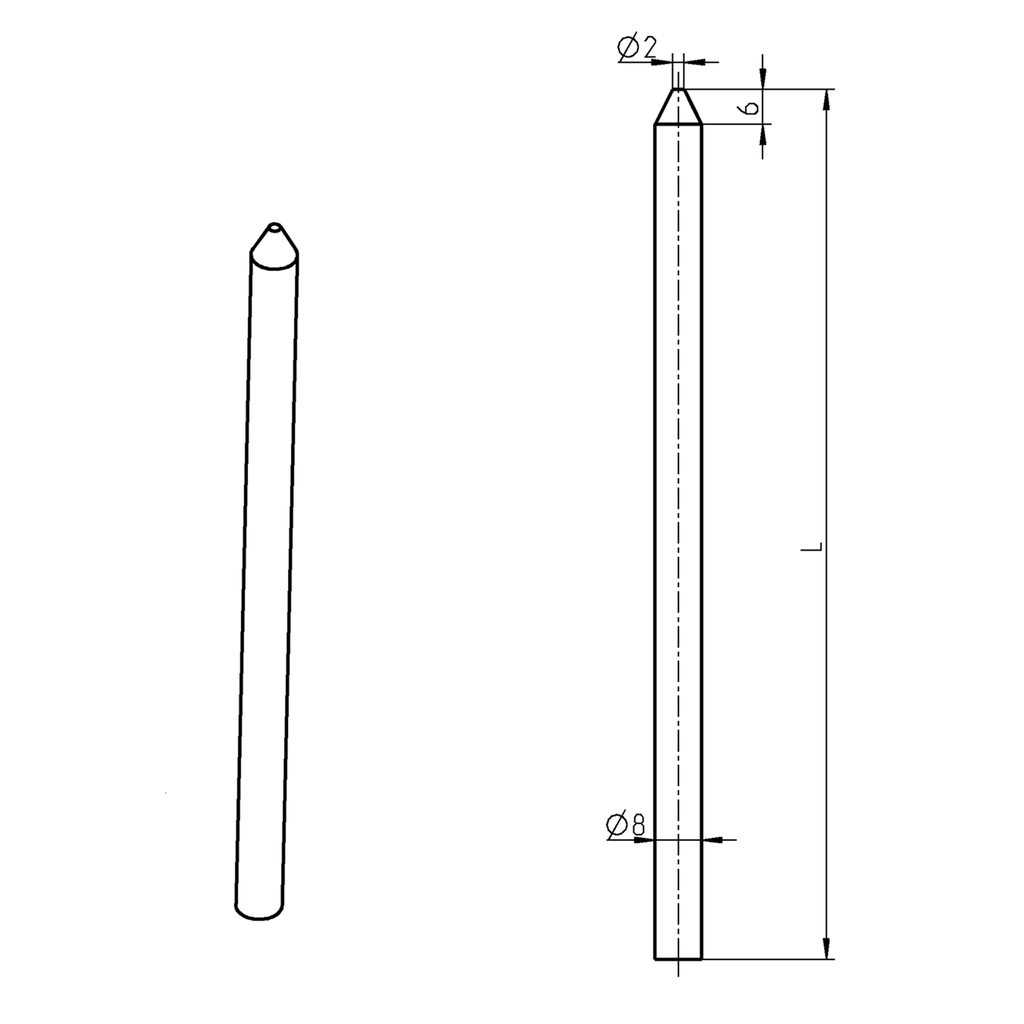

Round bar inside the seal:
Round rod with cone and butt
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
