Snap lock, Zinc die chrome-plated
Cylinder quarter turn, keyed EK 333, Zinc die chrome-plated
Product information:
Version with seal for IP 65 on request
Internal Reference:
1047-U3
Product Type:
Other latch
Program:
1047
Catalog sheet:
8A-240
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Execution:
A
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
5 mm
Locking set:
Push button
Door Version :
Left,Right
Lock Type:
Snap lock
No Specifications
No Matching Products

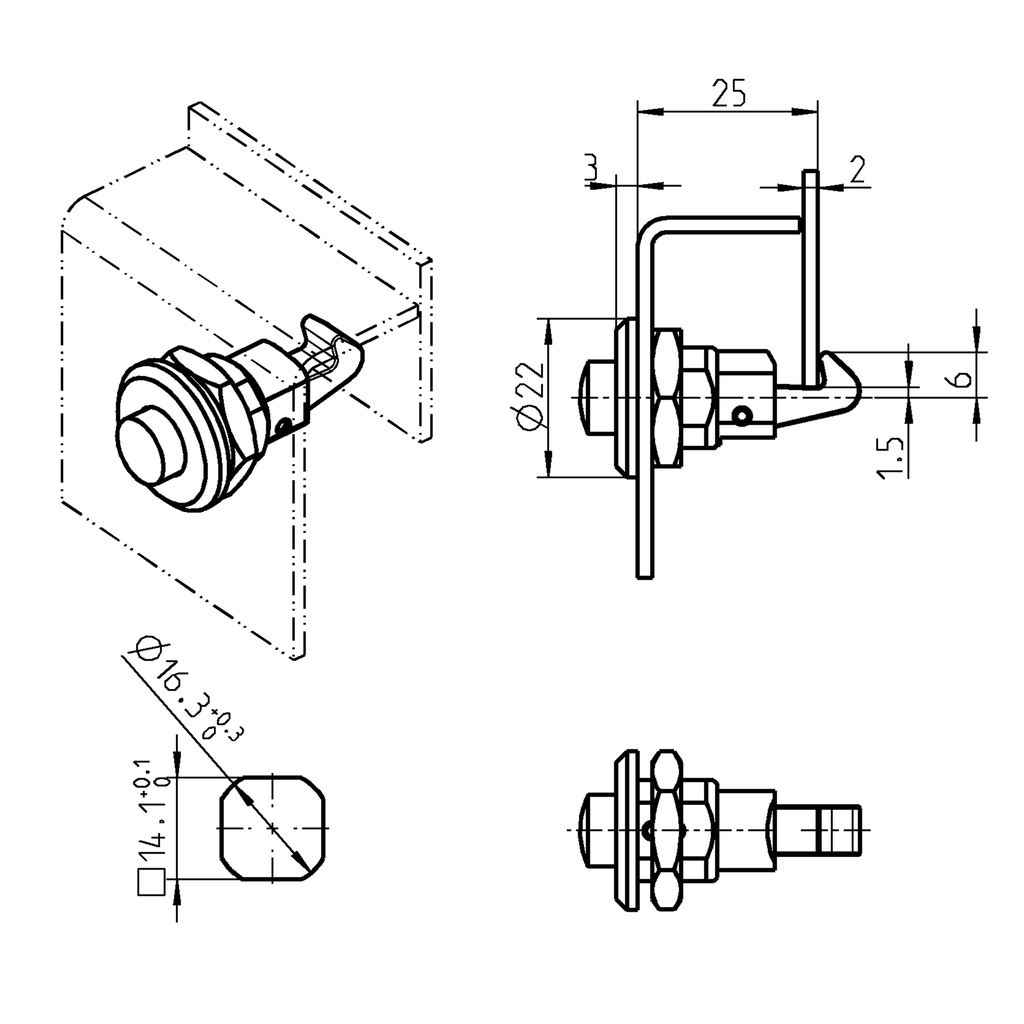

Here you can find the product data sheets and CAD files of this product
