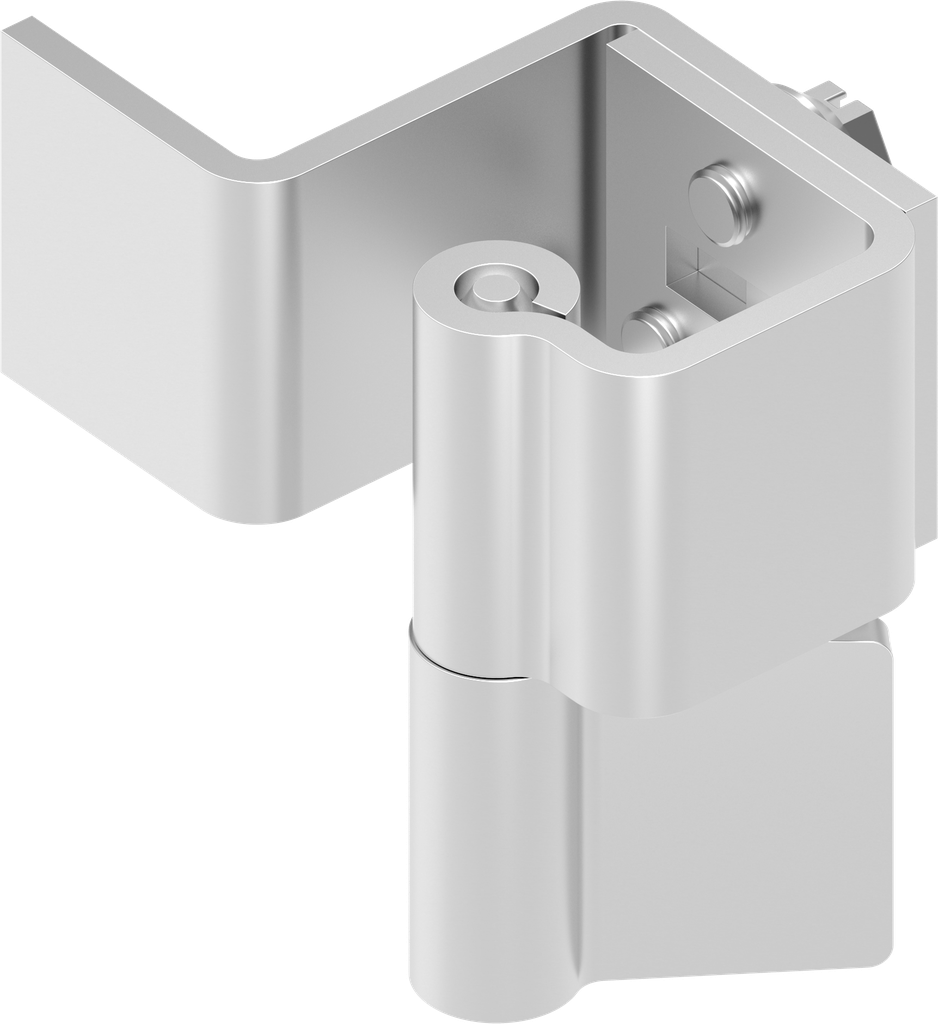

90° Concealed hinge, Steel zinc-plated and raw
Snap lock, Zinc die chrome-plated
Internal Reference:
1046-U5
Product Type:
Hinge
Program:
1046
Catalog sheet:
4B-130
Material of the module :
Stainless steel AISI 304
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
weld-on
Max Opening Angle:
90°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
