Bow-type handle, Zinc die chrome-plated
Bow-type handle, Zinc die chrome-plated
Bow-type handle, Zinc die black powder-coated
Bow-type handle, Zinc die black powder-coated

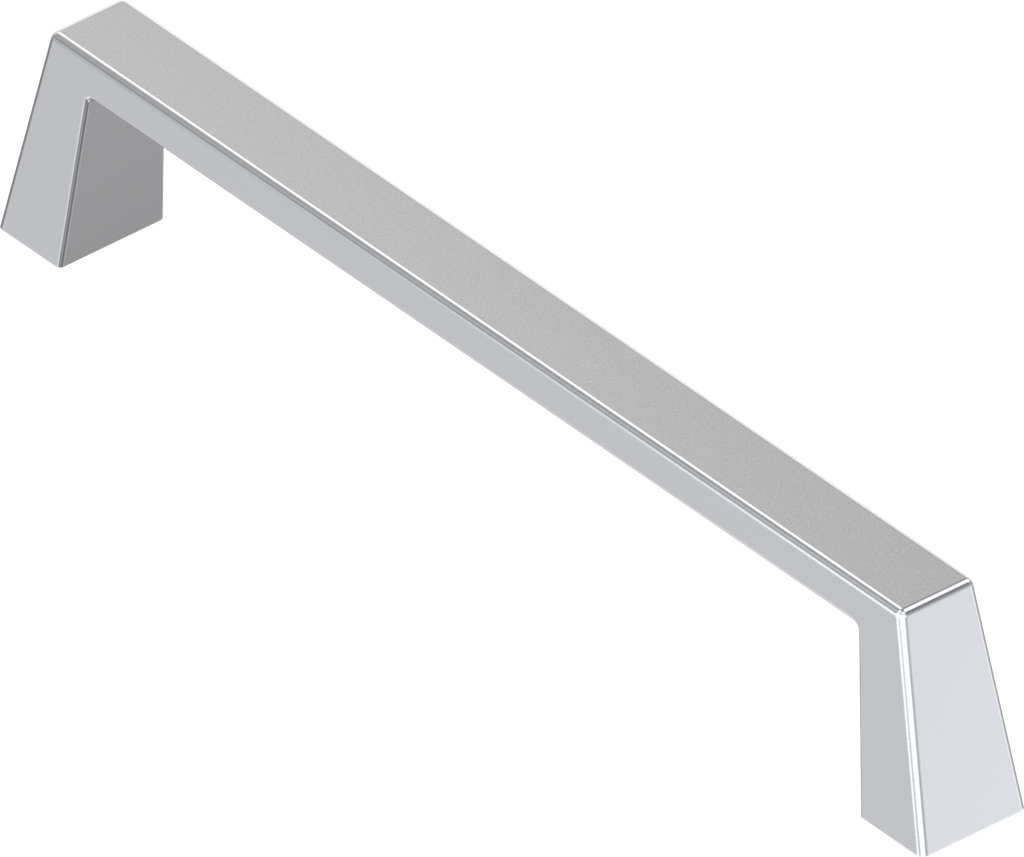

Bow-type handle, Zinc die chrome-plated; 1045-04

https://www.emka.com/products/1045-04 https://www.emka.com/web/image/product.template/61373/image_1920?unique=824f0e6

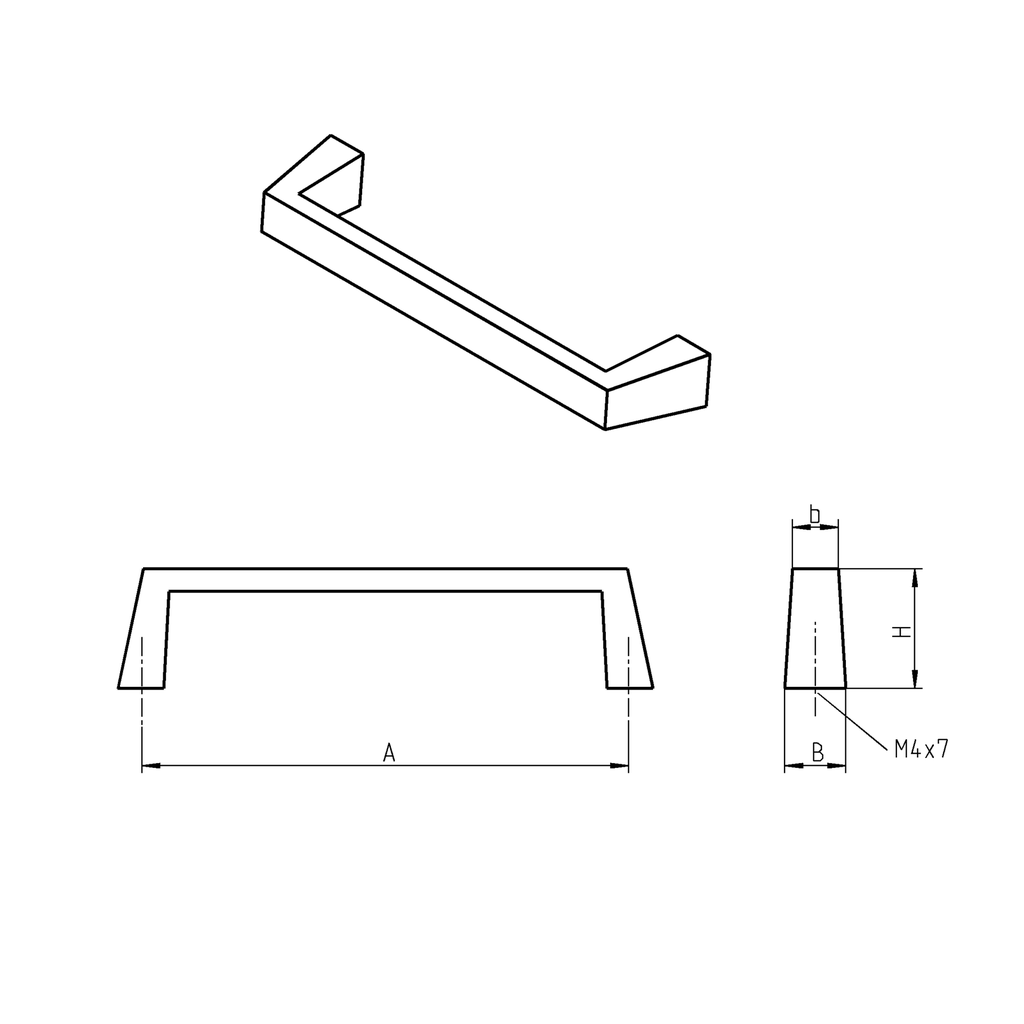

A = 115 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1045-04
    Product Type: Handle
    Material: Zinc die
    Program: 1045
    Surface: chrome-plated
    Dimension A: 115 mm
    Dimension b: 8.50 mm
    Dimension B: 12 mm
    Fixing type of handle: screw-on from inside
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 23 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
