Bow-type handle, Zinc die chrome-plated
Bow-type handle, Zinc die chrome-plated
Bow-type handle, Zinc die chrome-plated
Bow-type handle, Zinc die chrome-plated

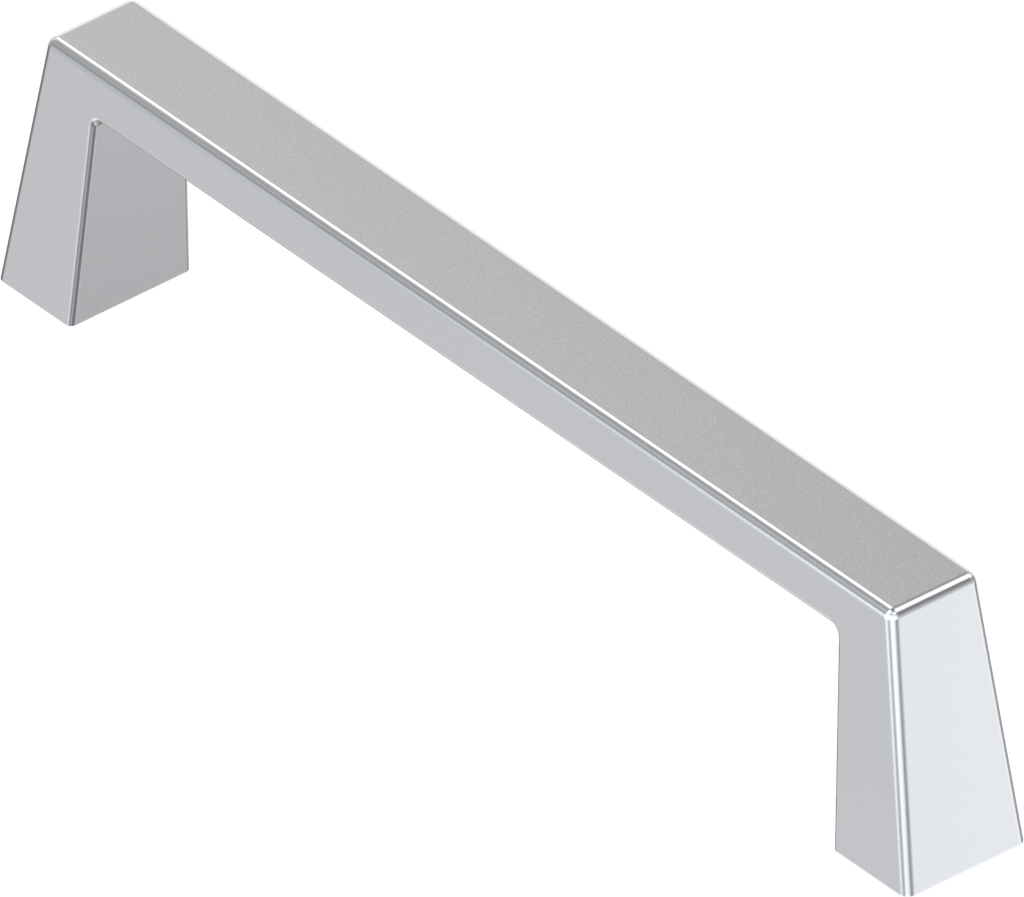

Bow-type handle, Zinc die chrome-plated; 1045-02

https://www.emka.com/products/1045-02 https://www.emka.com/web/image/product.template/61369/image_1920?unique=12c6fac

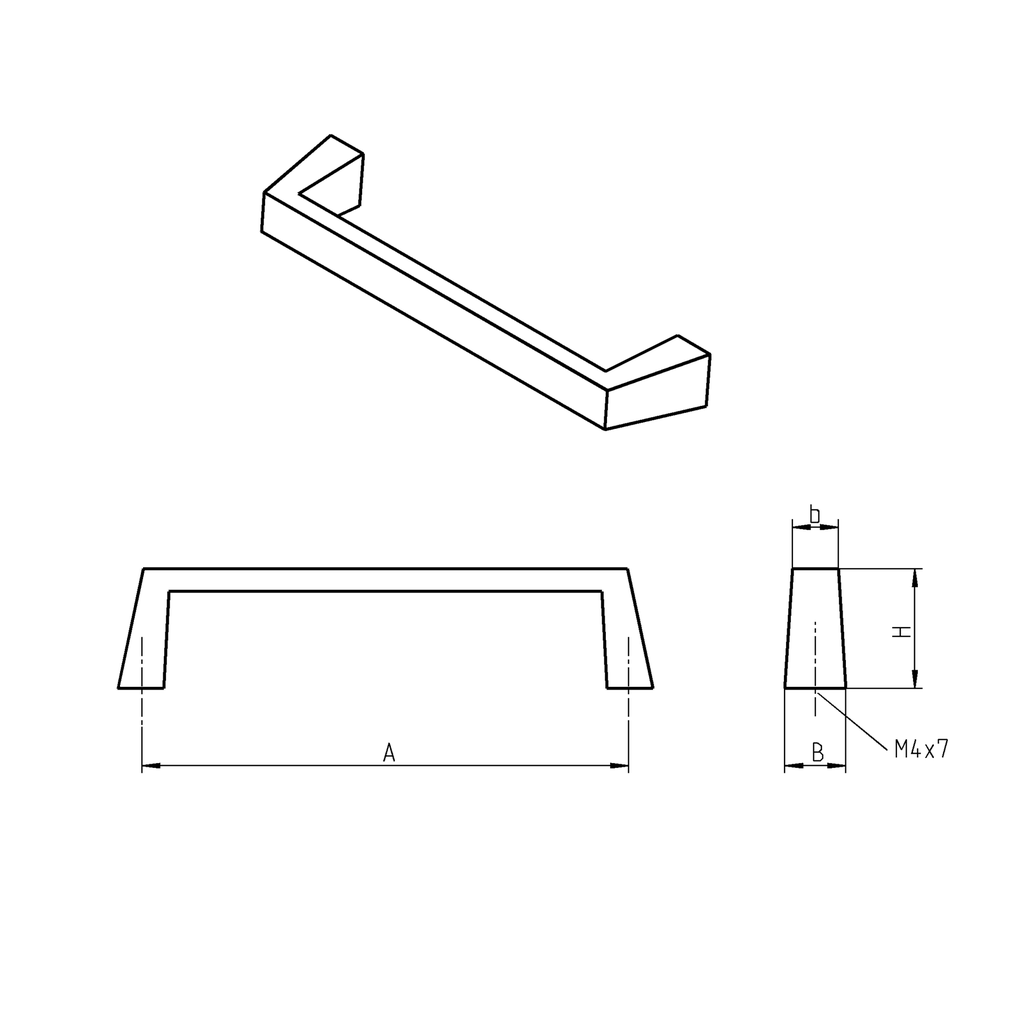

A = 89 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1045-02
    Product Type: Handle
    Material: Zinc die
    Program: 1045
    Surface: chrome-plated
    Dimension A: 89 mm
    Dimension b: 8 mm
    Dimension B: 11 mm
    Fixing type of handle: screw-on from inside
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 22 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
