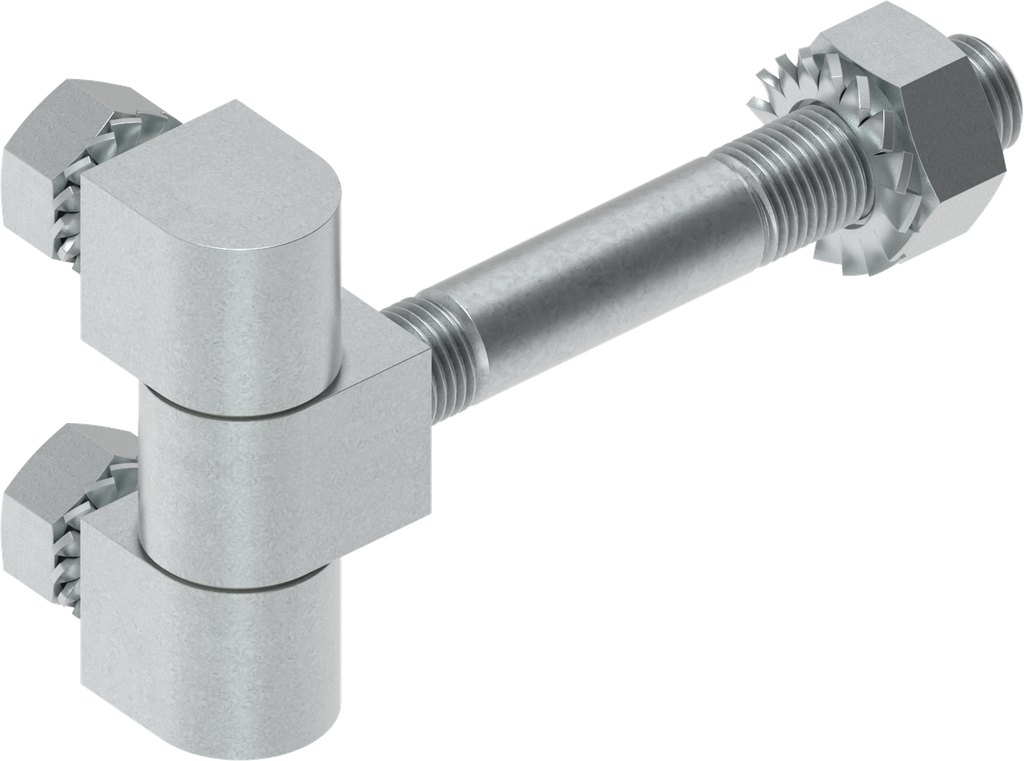

180° Hinge for pressure-tight doors, Steel C 35 quenched and tempered zinc-plated; 1039-U8

https://www.emka.com/products/1039-u8 https://www.emka.com/web/image/product.template/61306/image_1920?unique=f86255a

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1039-U8
    Product Type: Hinge
    Program: 1039
    Catalog sheet: 4A-260
    Material of the module : Steel C 35 quenched and tempered
    Surface of the module: zinc-plated
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside

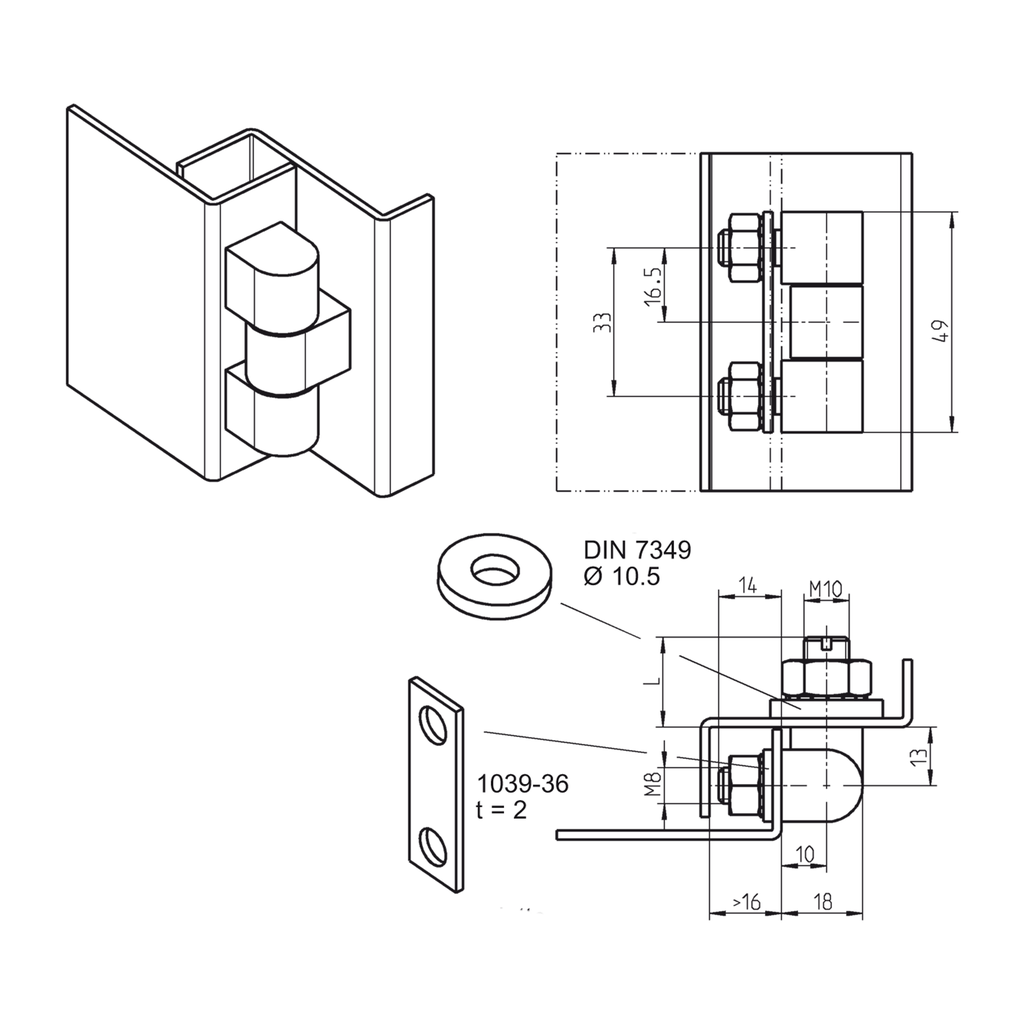

    Dimension L: 65 mm
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Hinge for pressure tight doors: Yes
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
