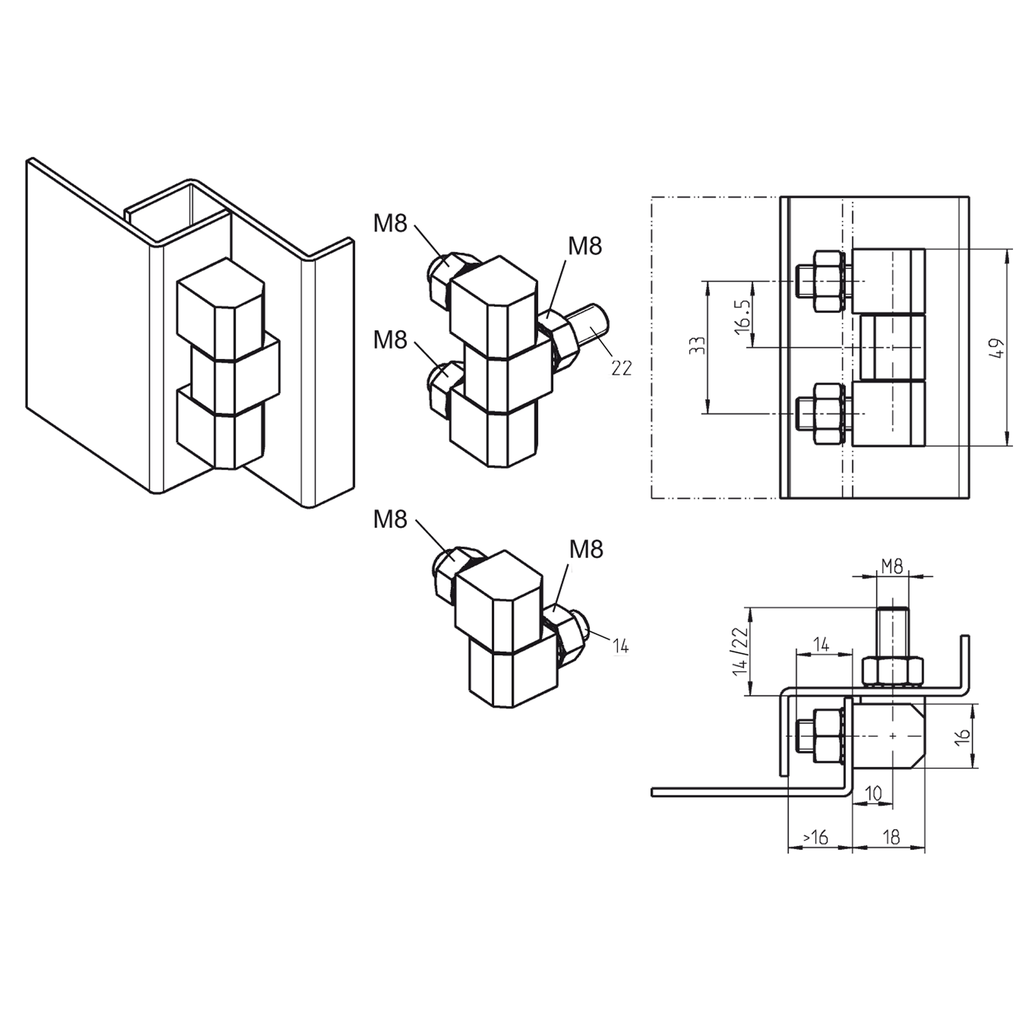

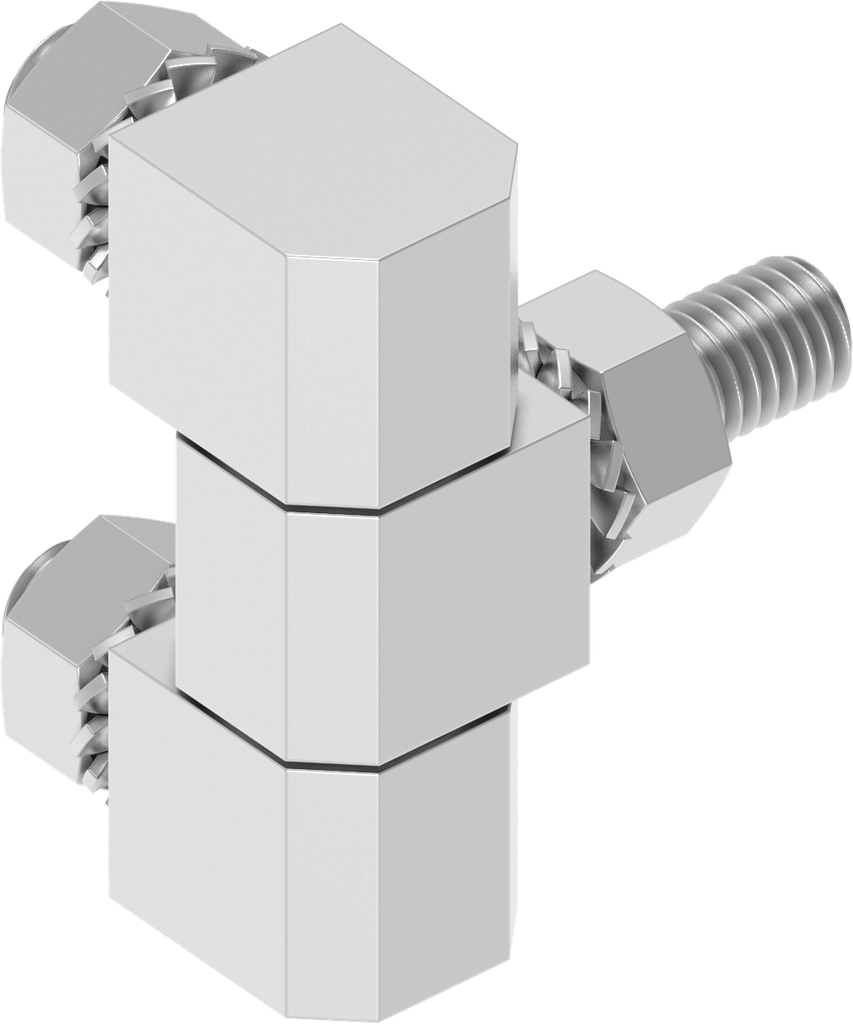

Hinge, Stainless steel AISI 316; 1039-U26

https://www.emka.com/products/1039-u26 https://www.emka.com/web/image/product.template/61318/image_1920?unique=a6511f0

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1039-U26
    Product Type: Hinge
    Program: 1039
    Catalog sheet: 4A-250
    Material of the module : Stainless steel AISI 316
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4A-250
    Product data sheet
    CAD file | 1039-U26_igs
    CAD file | 1039-U26_stp
