180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated

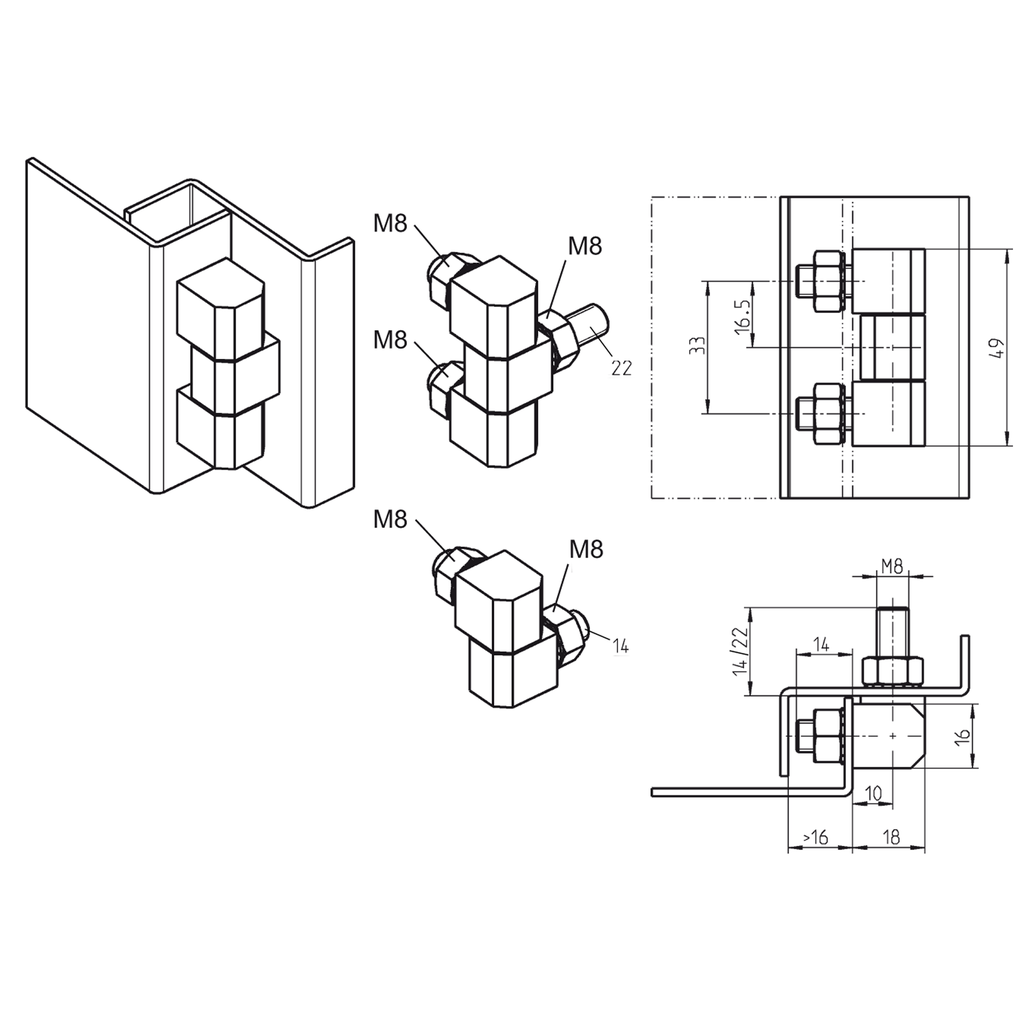

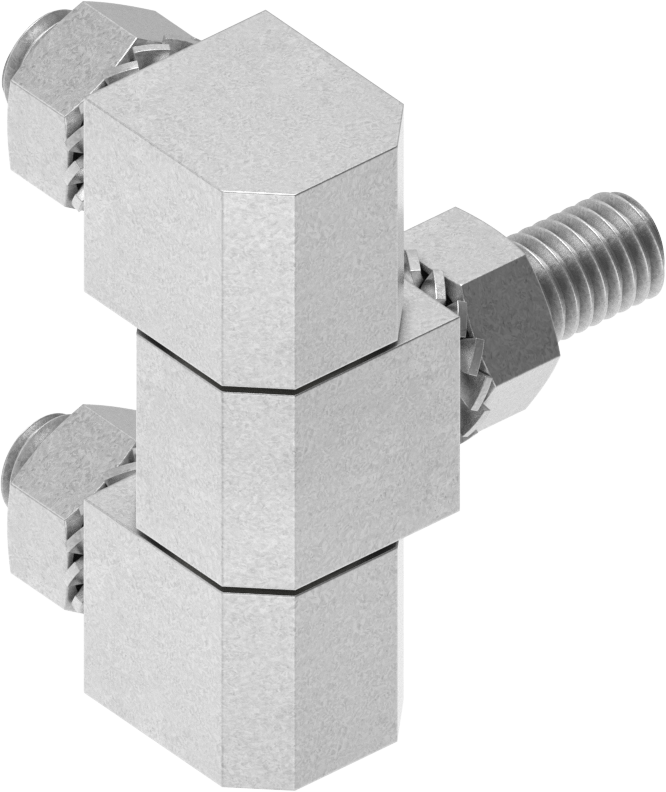

180° Hinge, Steel zinc-plated; 1039-U12

https://www.emka.com/products/1039-u12 https://www.emka.com/web/image/product.template/61309/image_1920?unique=2c3d877

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1039-U12
    Product Type: Hinge
    Program: 1039
    Catalog sheet: 4A-250
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Execution: three-piece
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
