Sealing profile, EPDM 55 Shore A black
Sealing profile, EPDM 55 Shore A black
Sealing profile, EPDM 55 Shore A black
Sealing profile, EPDM 55 Shore A black

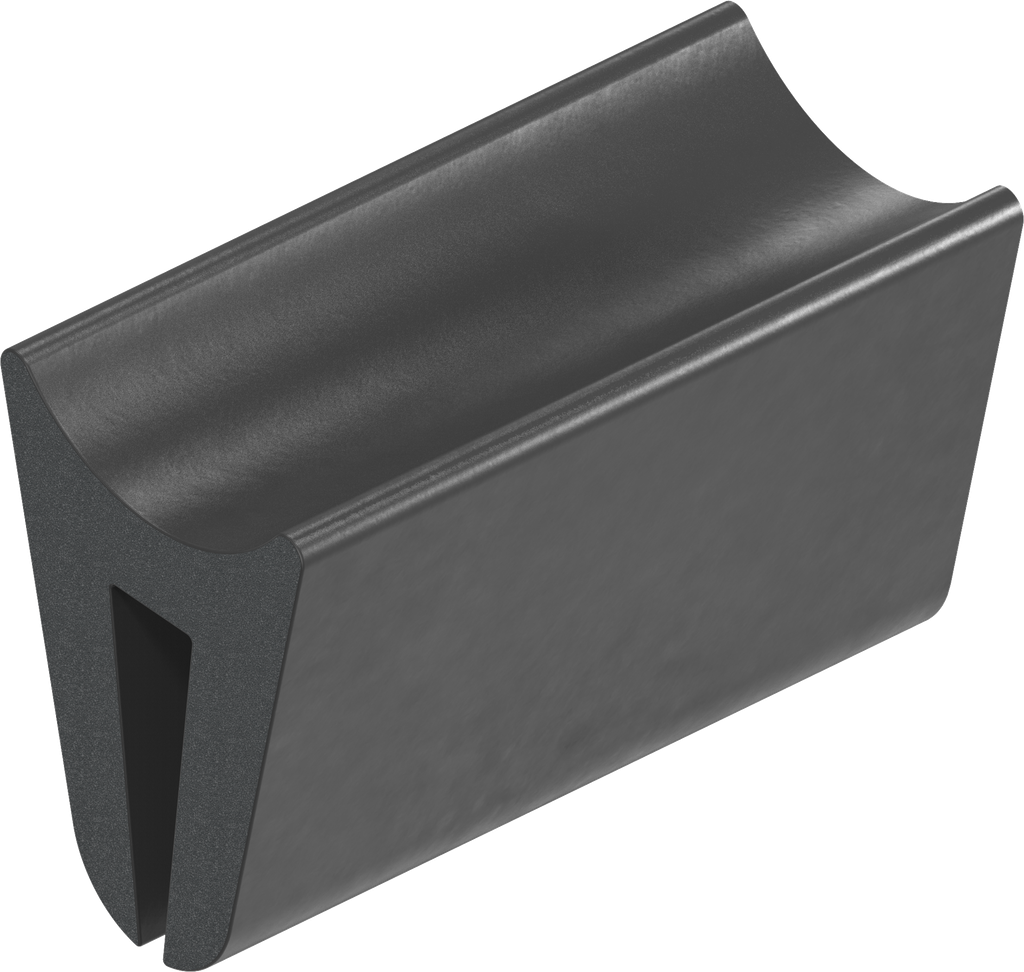

Sealing profile, EPDM 55 Shore A black; 1038-07

https://www.emka.com/products/1038-07 https://www.emka.com/web/image/product.template/61278/image_1920?unique=2fb2ee5

    This combination does not exist.

    Internal Reference: 1038-07
    Barcode: 1038-000007-0000000
    Product Type: Seal
    Material: EPDM 55 Shore A
    Program: 1038
    Surface: black
    Catalog sheet: 5A-200
    Seal element: Sealing lip, top
    Seal Type: Clip-on profile

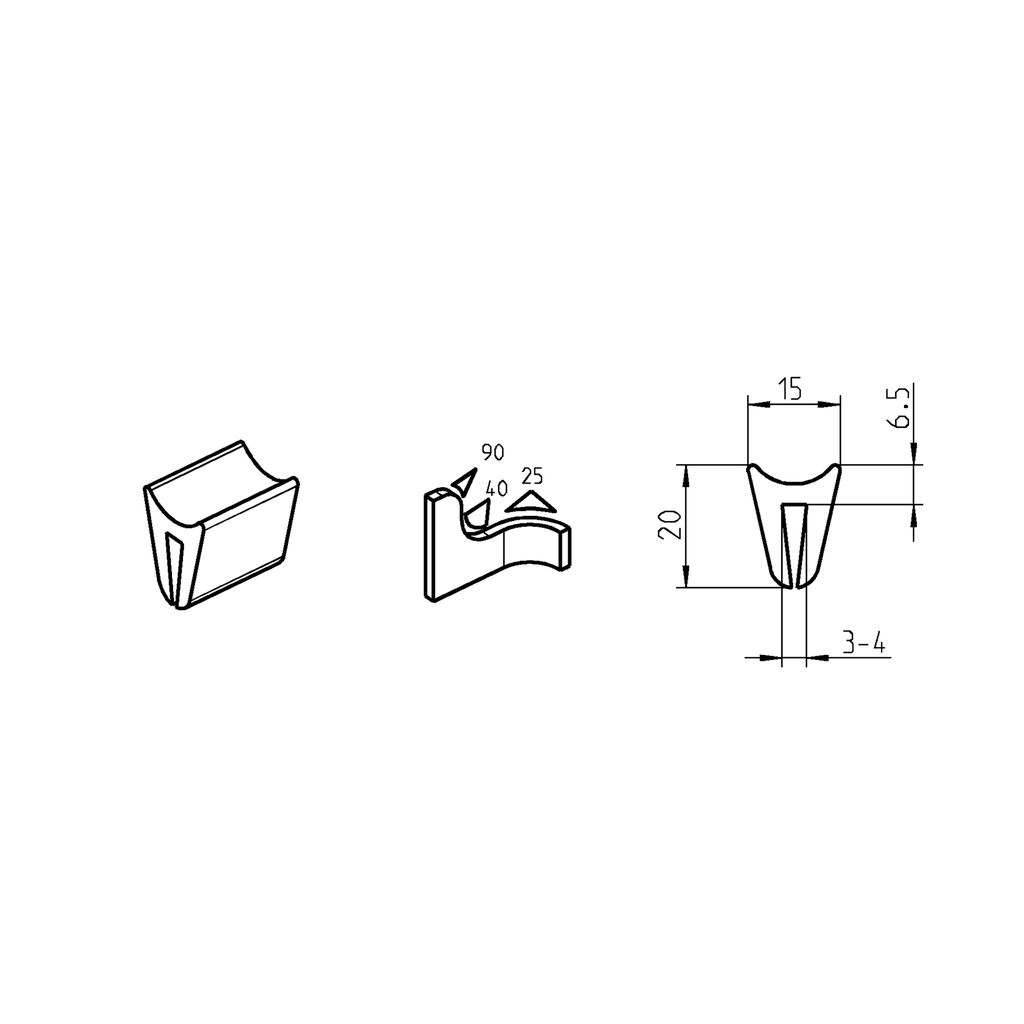

    Dimension h: 13.50 mm
    Dimension H: 20 mm
    Clamping edge is or is up to: 4
    Terminal Edge Of: 3
