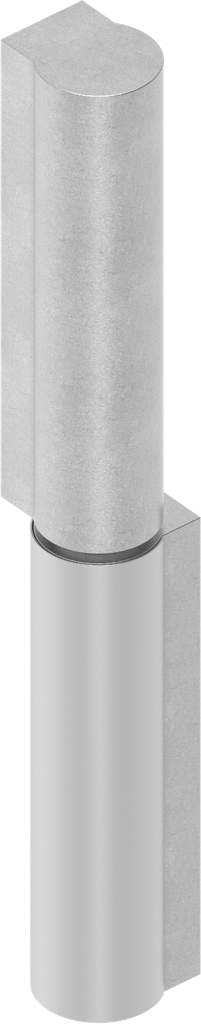

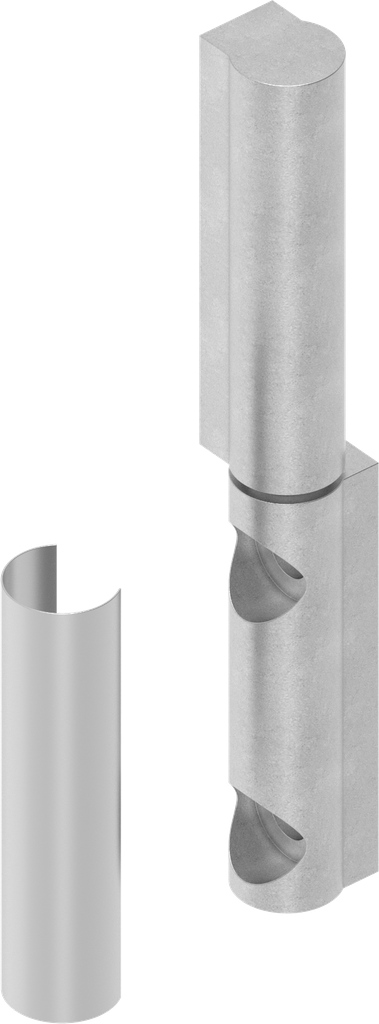

Profile hinge, screw-on, Steel zinc-plated; 1036-U4

https://www.emka.com/products/1036-u4 https://www.emka.com/web/image/product.template/61269/image_1920?unique=1d5eae1

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1036-U4
    Product Type: Hinge
    Program: 1036
    Catalog sheet: 4A-290
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes

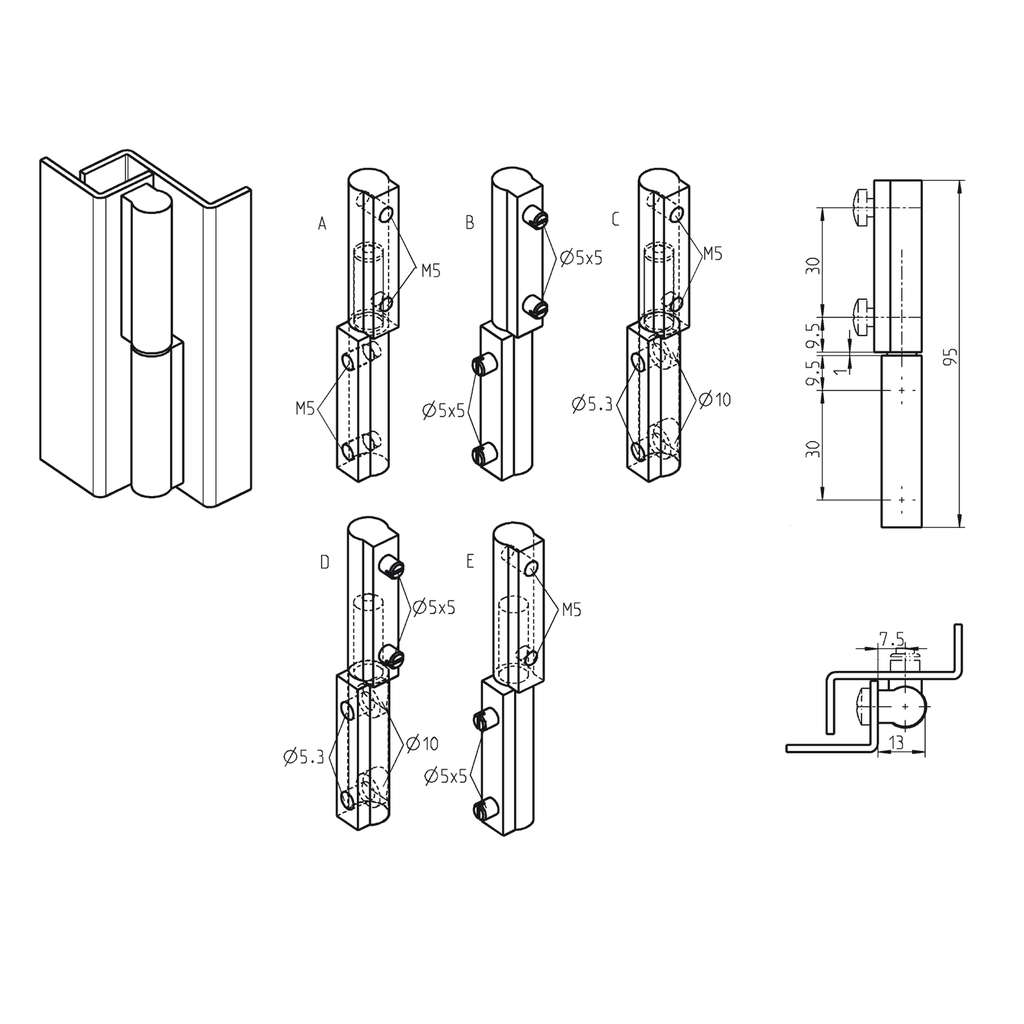

    Execution: C
    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
