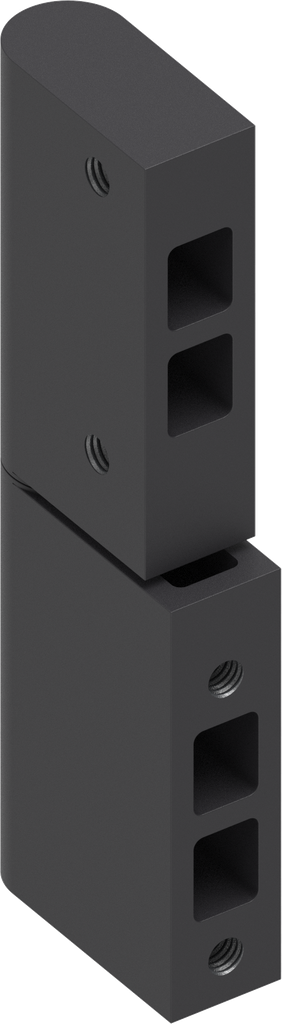

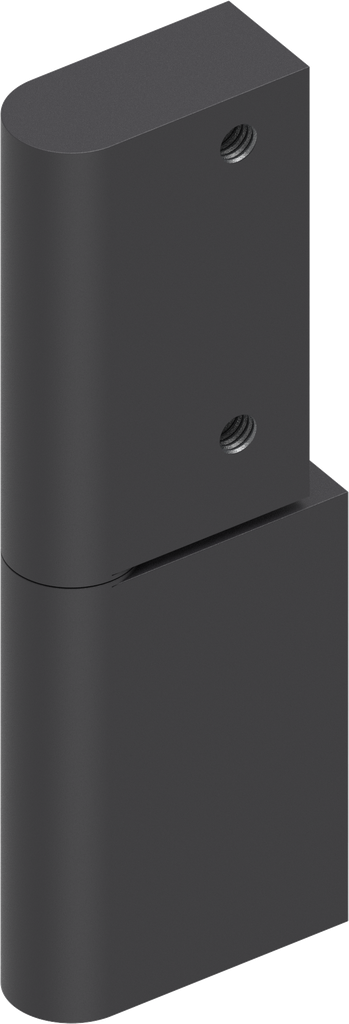

Hinge, Zinc die black powder-coated; 1036-U10

https://www.emka.com/products/1036-u10 https://www.emka.com/web/image/product.template/61274/image_1920?unique=5124310

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us

    Product information:

    In case of 18 mm, an opening angle of 180° for in-line cabinets with double doors is possible.
    Internal Reference: 1036-U10
    Product Type: Hinge
    Program: 1036
    Catalog sheet: 4A-295
    Material of the module : Zinc die
    Surface of the module: black powder-coated

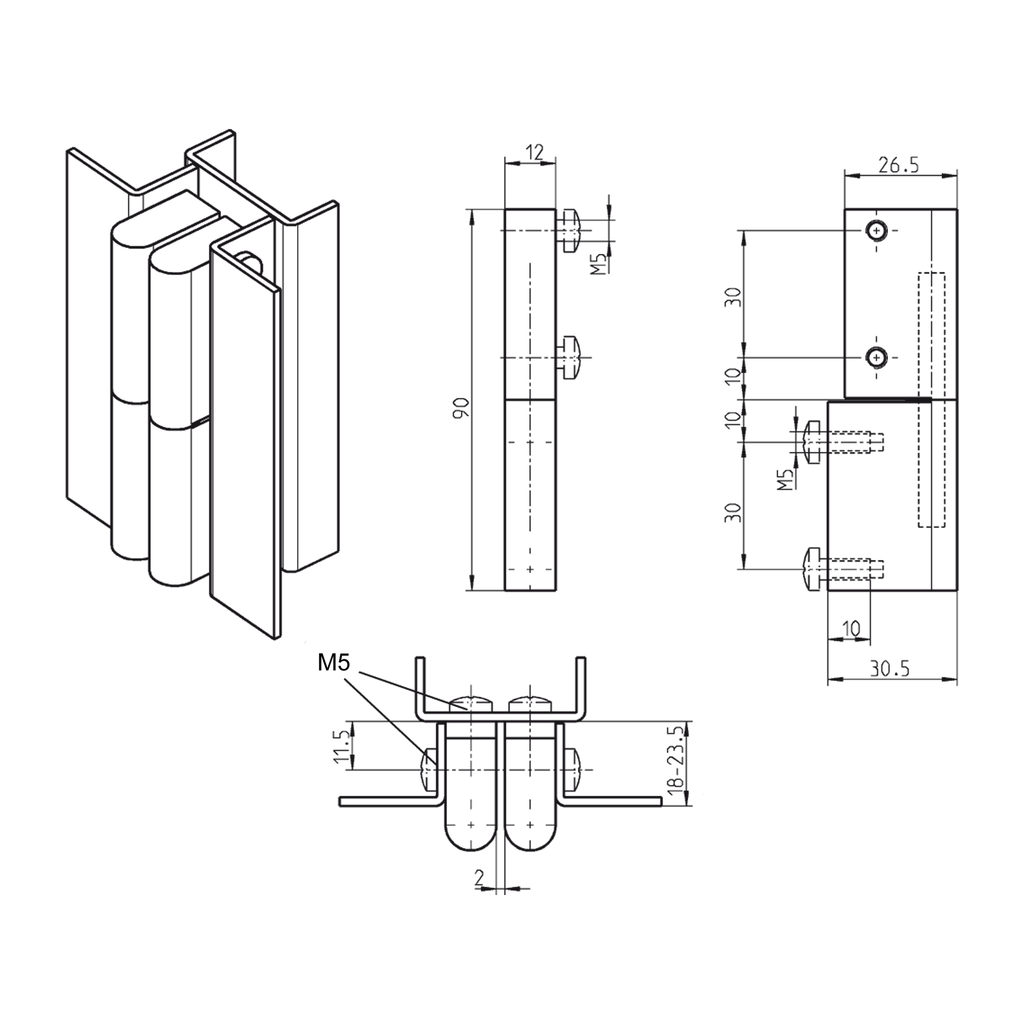

    Dimension A, Variable: 18 - 23.5 mm
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
