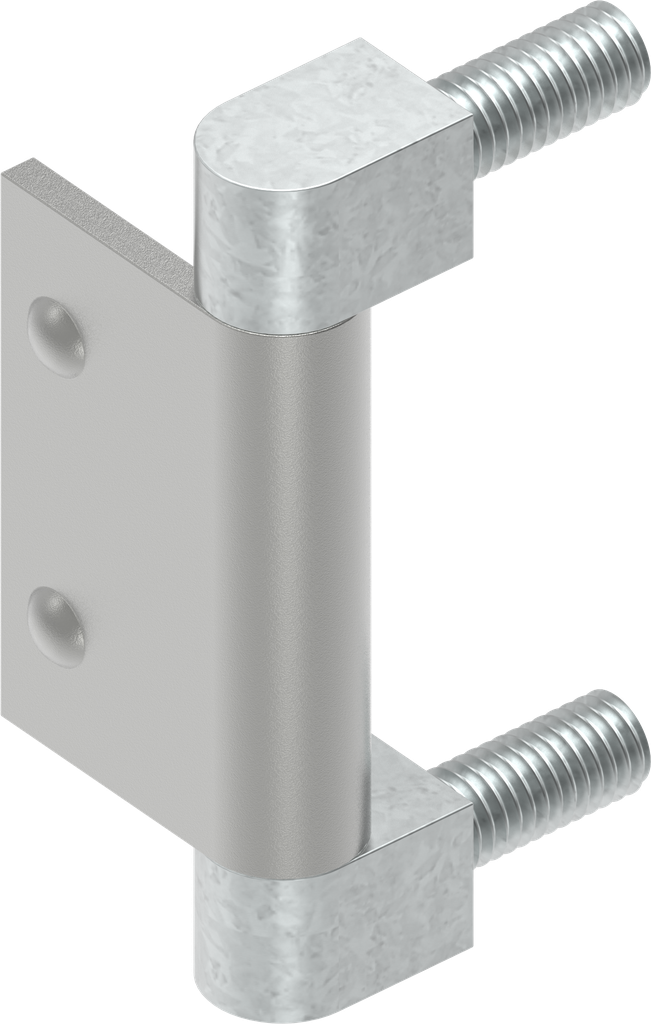

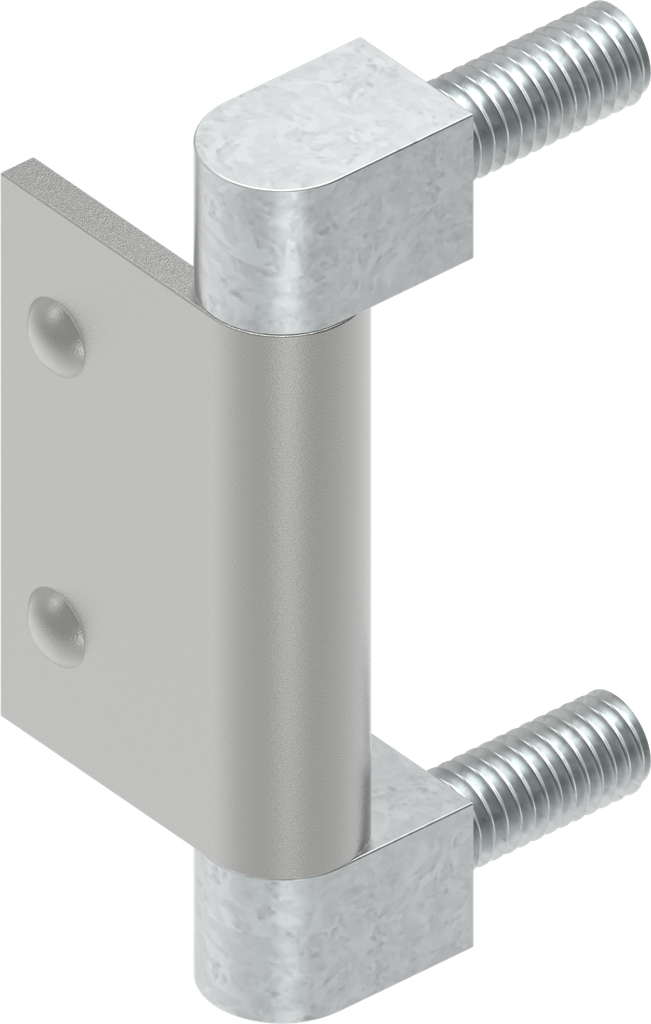

180° Hinge, Steel zinc-plated and raw; 1035-U3

https://www.emka.com/products/1035-u3 https://www.emka.com/web/image/product.template/210245/image_1920?unique=9c1dfe0

Roller m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1035-U3
    Product Type: Hinge
    Program: 1035
    Catalog sheet: 4A-260
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Door return variable: Yes
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from inside

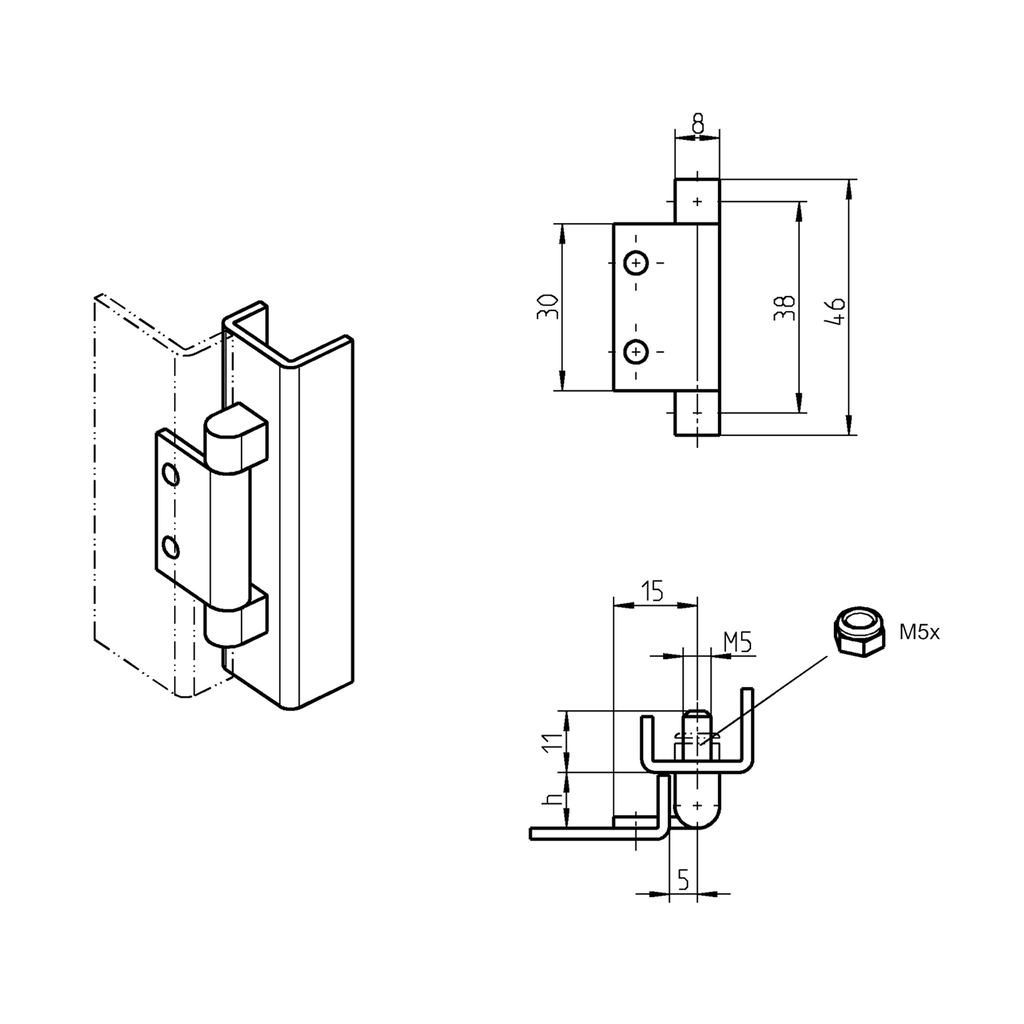

    Dimension h: 12 mm
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
