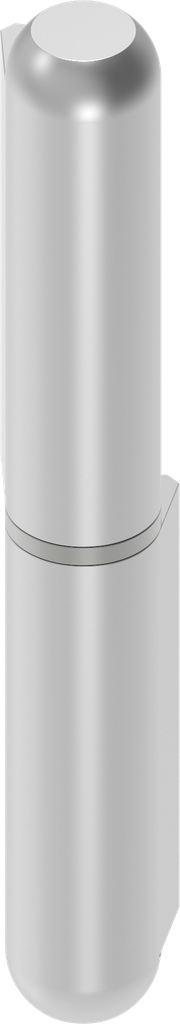

Weld-on hinge, Stainless steel AISI 304 raw
Support for slam-lock, Steel zinc-plated
Product information:
L dimensions are nominal; weld-on hinges can be smaller.
Internal Reference:
1033-U73
Product Type:
Hinge
Program:
1033
Catalog sheet:
4A-300
Material of the module :
Stainless steel AISI 304
Surface of the module:
raw
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
weld-on

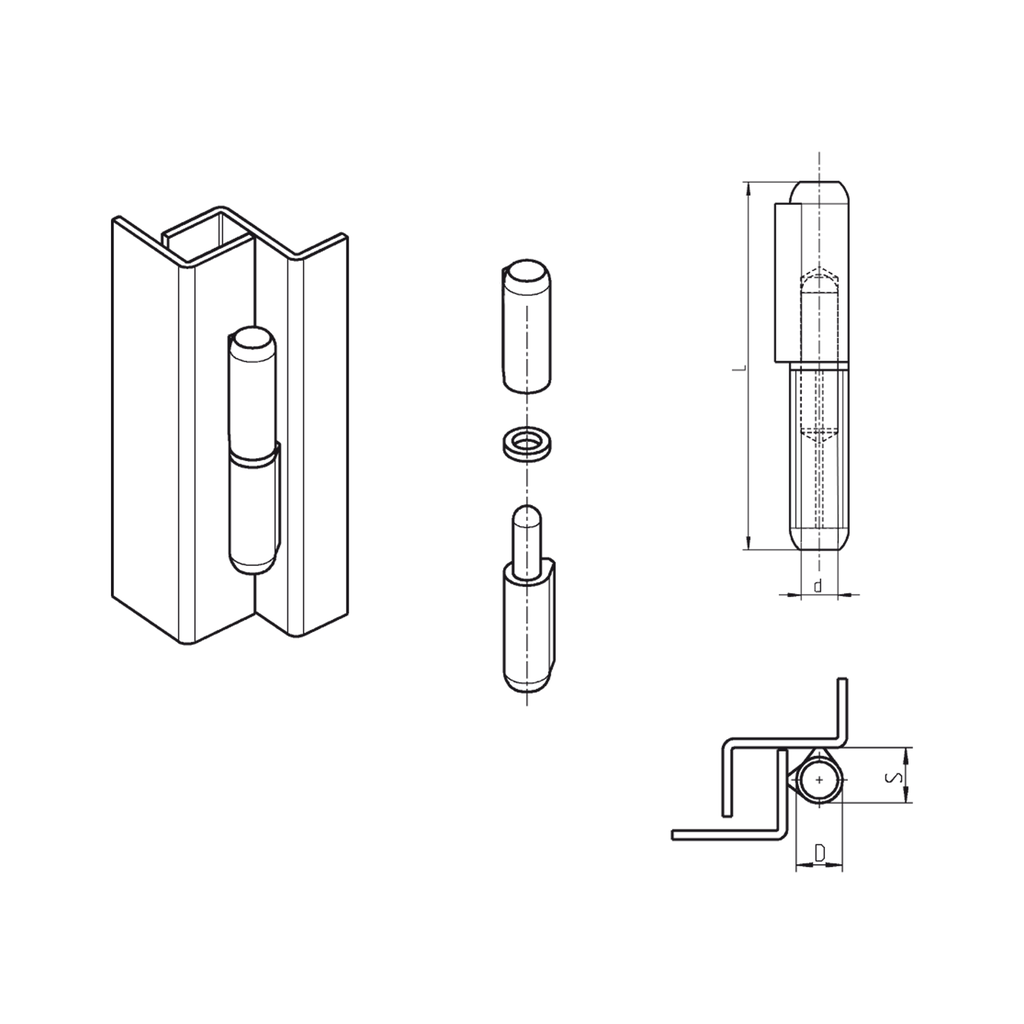

Dimension d:
11 mm
Dimension D:
16 mm
Dimension L:
120 mm
Max. opening angle due to installation:
Yes
Dimension S:
20 mm
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
