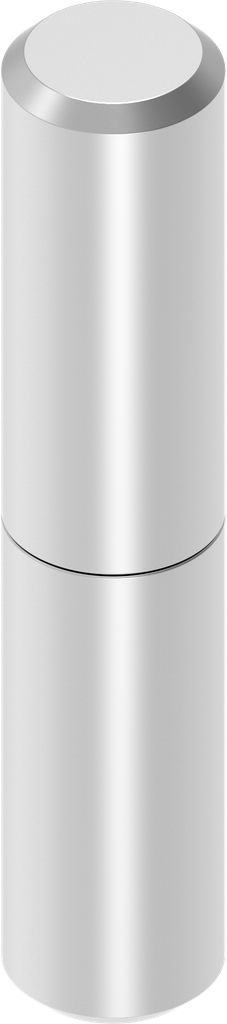

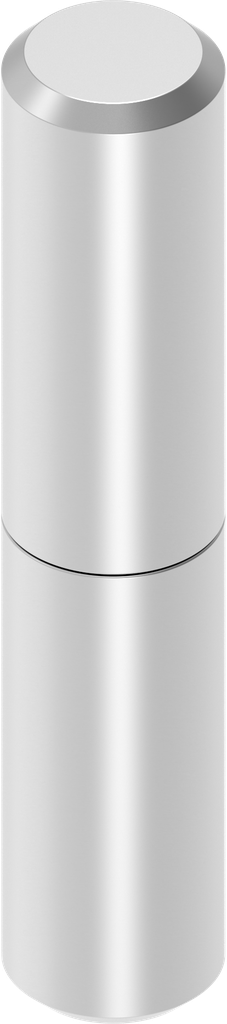

Weld-on hinge, Stainless steel AISI 316 raw
Weld-on hinge, Stainless steel AISI 316 raw
Weld-on hinge, Stainless steel AISI 316 raw
Weld-on hinge, Stainless steel AISI 316 raw

Weld-on hinge, Stainless steel AISI 316 raw; 1033-U50

https://www.emka.com/products/1033-u50 https://www.emka.com/web/image/product.template/61210/image_1920?unique=824f0e6

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1033-U50
    Product Type: Hinge
    Program: 1033
    Material of the module : Stainless steel AISI 316
    Surface of the module: raw
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on

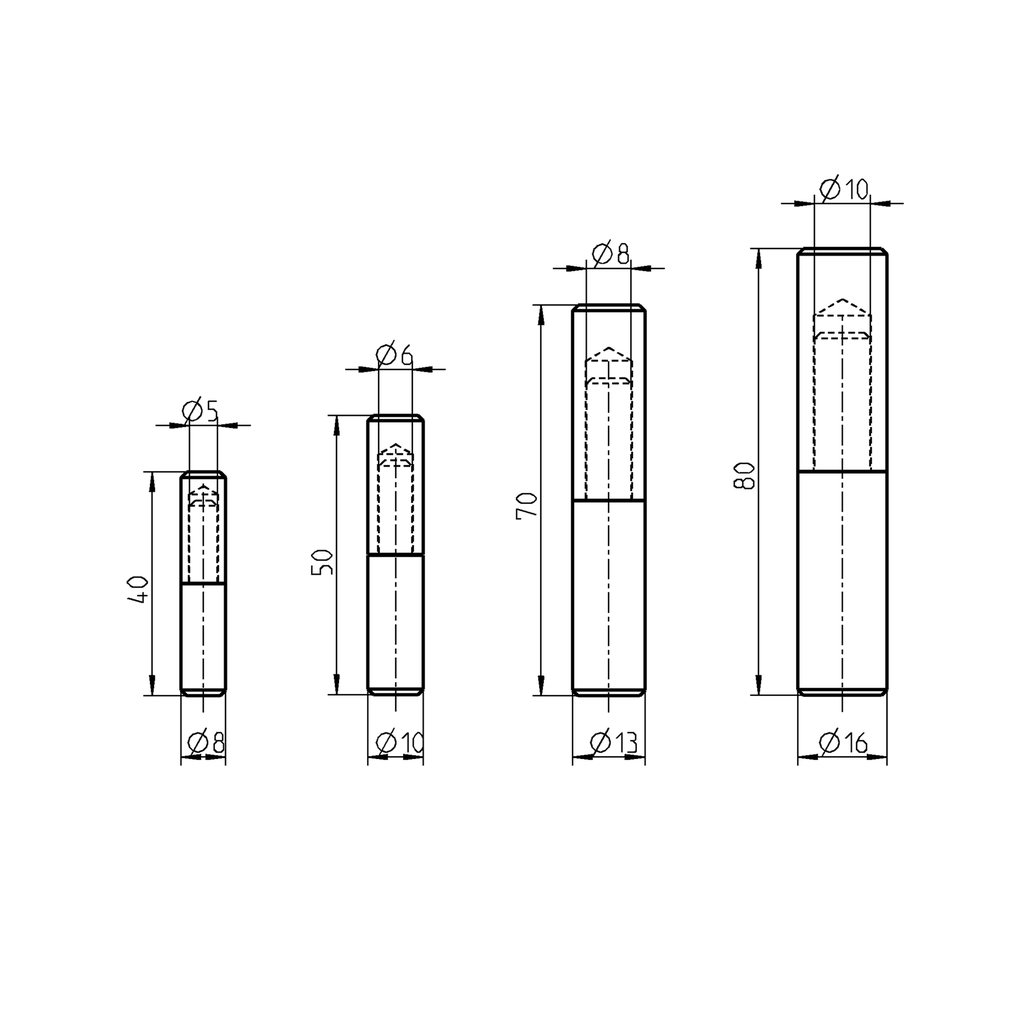

    Dimension d: 6 mm
    Dimension D: 10 mm
    Dimension L: 50 mm
    Max. opening angle due to installation: Yes
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
