Weld-on hinge, Steel raw
Weld-on hinge, Steel raw
Weld-on hinge, Stainless steel AISI 304 raw
Weld-on hinge, Stainless steel AISI 304 raw

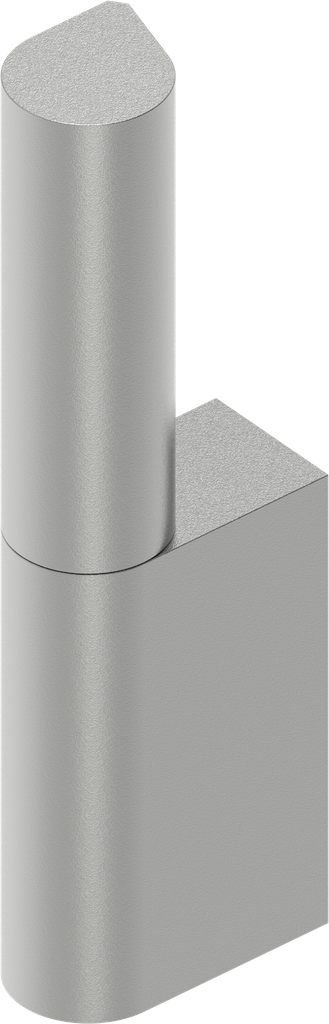

180° Weld-on hinge, Steel raw; 1033-U44

https://www.emka.com/products/1033-u44 https://www.emka.com/web/image/product.template/61204/image_1920?unique=514d9a6

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1033-U44
    Product Type: Hinge
    Program: 1033
    Catalog sheet: 4A-295
    Material of the module : Steel
    Surface of the module: raw
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products

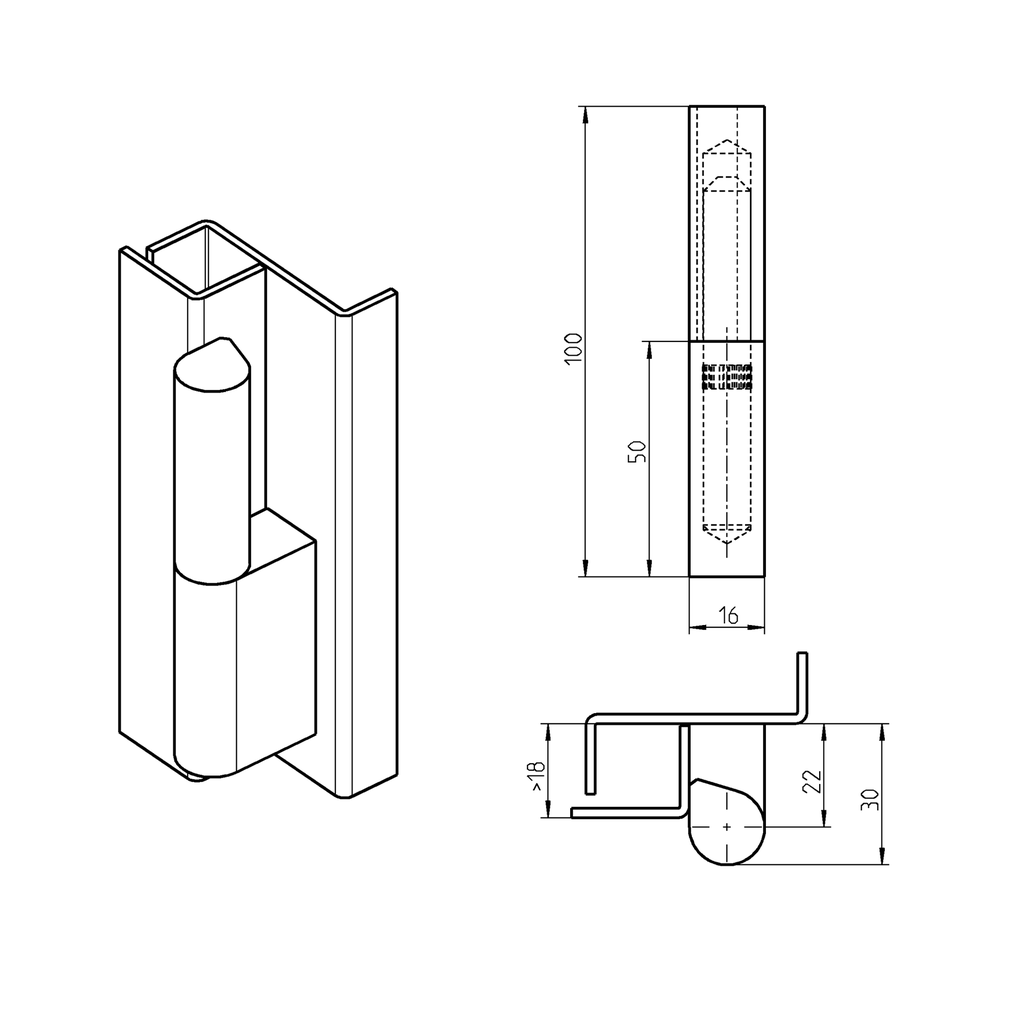

    Here you can find the product data sheets and CAD files of this product
