Weld-on hinge, Steel raw
Weld-on hinge, Steel raw
Weld-on hinge, Steel raw
Weld-on hinge, Steel raw

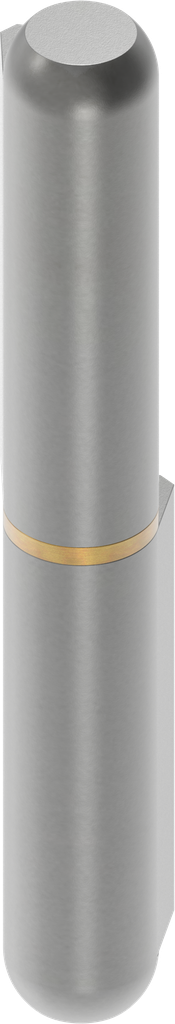

Weld-on hinge, Steel raw; 1033-U22

https://www.emka.com/products/1033-u22 https://www.emka.com/web/image/product.template/61195/image_1920?unique=3e944dc

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

    Product information:

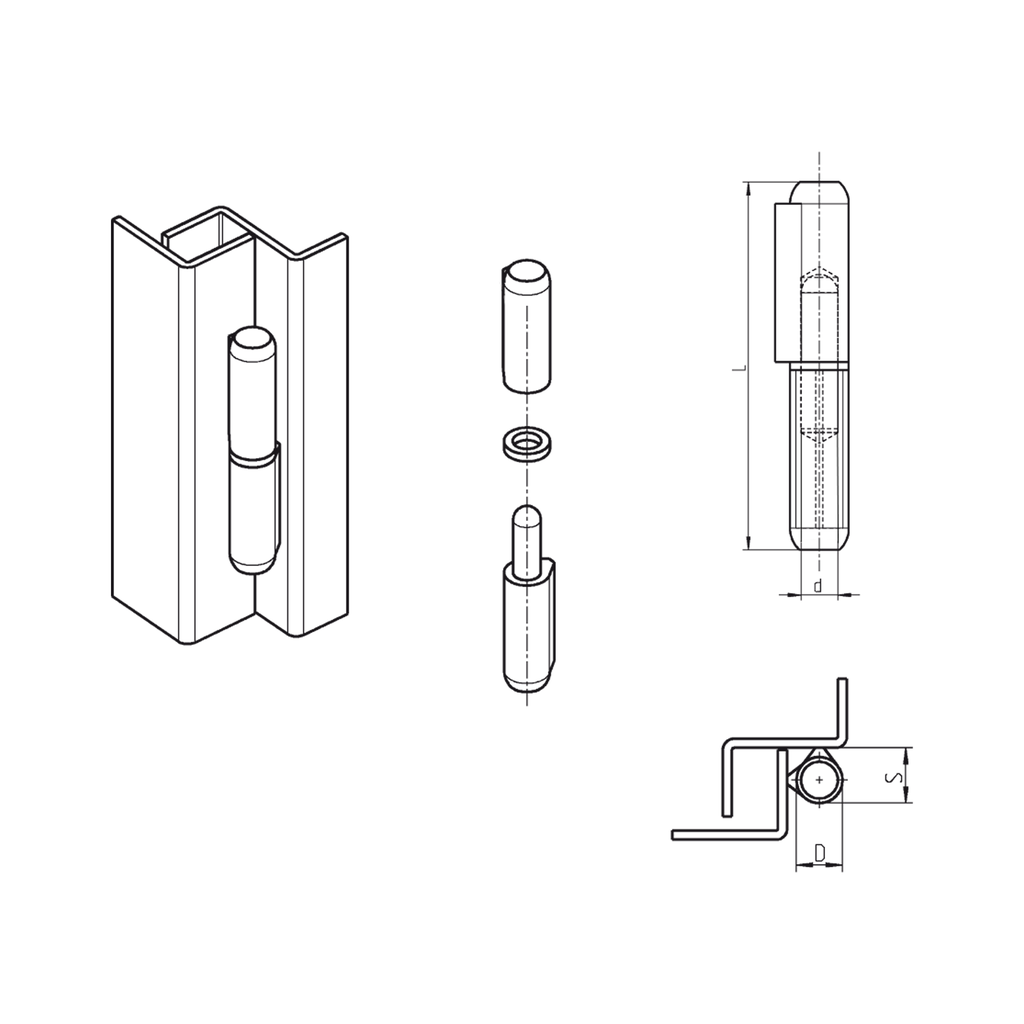

    L dimensions are nominal; weld-on hinges can be smaller.
    Internal Reference: 1033-U22
    Product Type: Hinge
    Program: 1033
    Catalog sheet: 4A-300
    Material of the module : Steel
    Surface of the module: raw
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Dimension d: 12 mm
    Dimension D: 18 mm
    Dimension L: 135 mm
    Max. opening angle due to installation: Yes
    Dimension S: 22 mm
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
