120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated and raw
120° Hinge, Steel zinc-plated
120° Hinge, Steel zinc-plated

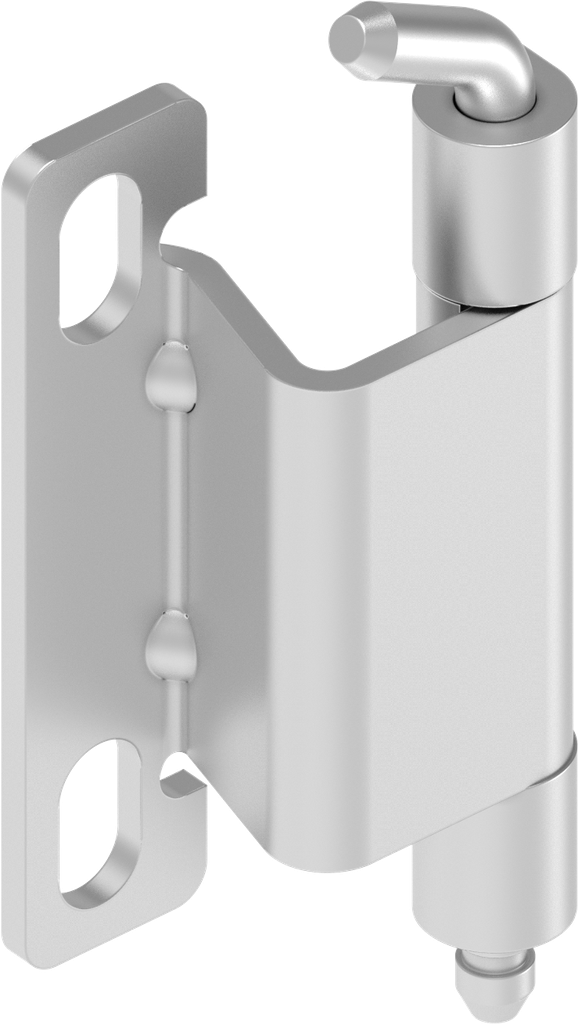

120° Hinge, Stainless steel AISI 304; 1032-U2

https://www.emka.com/products/1032-u2 https://www.emka.com/web/image/product.template/61145/image_1920?unique=2de922e

    This combination does not exist.

    Single cabinets Left Right
    Contact Us

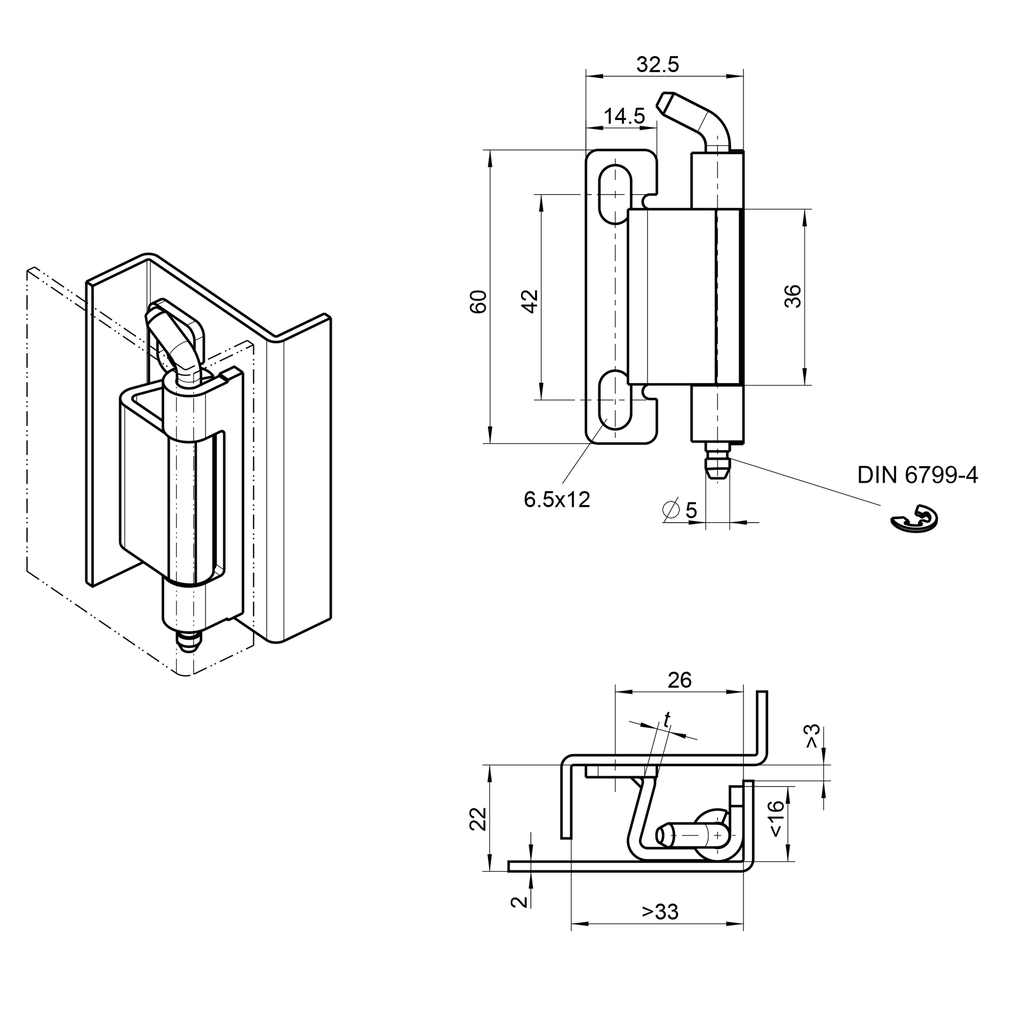

    Internal Reference: 1032-U2
    Product Type: Hinge
    Program: 1032
    Catalog sheet: 4A-130
    Material of the module : Stainless steel AISI 304
    Dimension A, Variable: 22 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside
    Max. opening angle due to installation: Yes
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Dimension t: 2.25 mm
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
