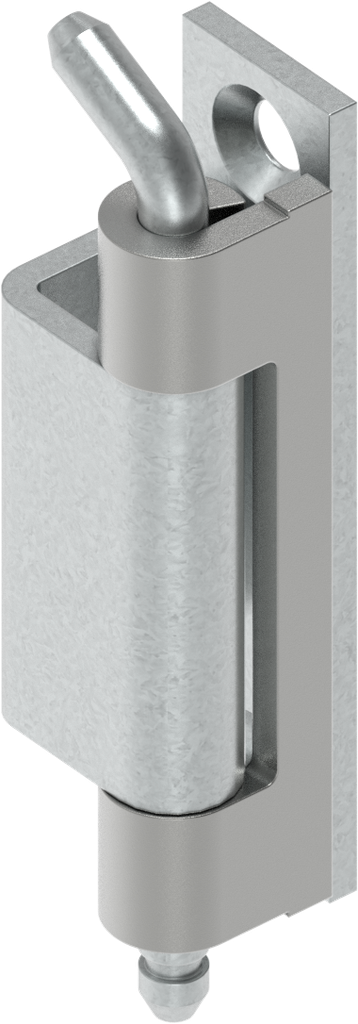

120° Hinge, Steel zinc-plated and raw; 1031-U7

https://www.emka.com/products/1031-u7 https://www.emka.com/web/image/product.template/61111/image_1920?unique=68a27c5

Roller m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1031-U7
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-134
    Material of the module : Steel
    Surface of the module: zinc-plated and raw

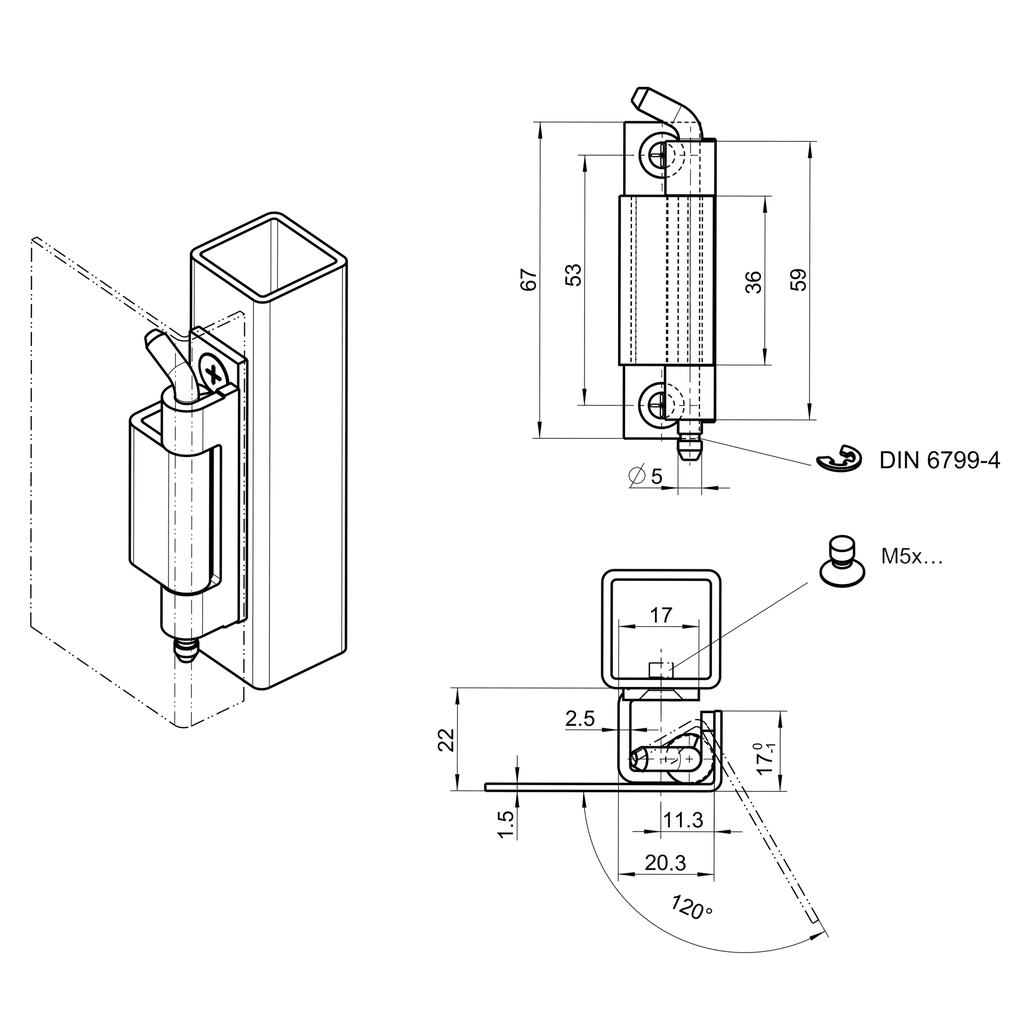

    Dimension A, Variable: 22 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M5
    Max. opening angle due to installation: Yes
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 1.5 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
