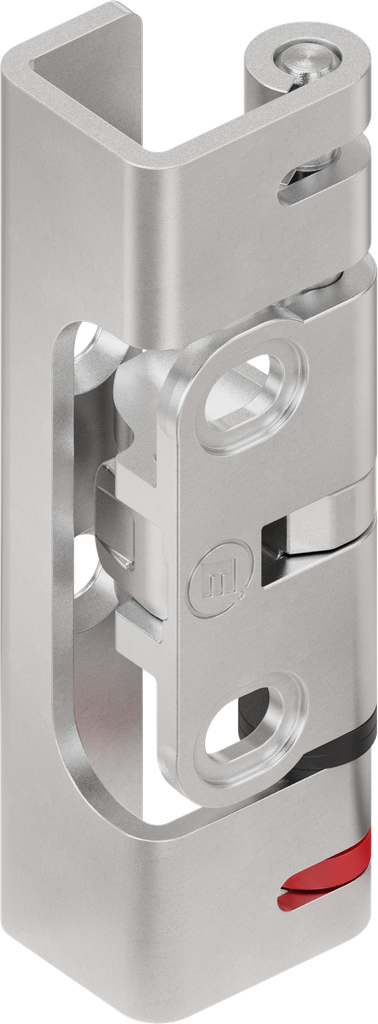

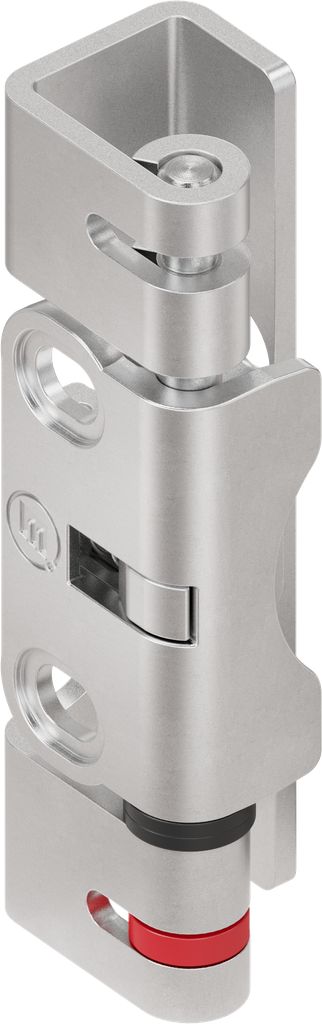

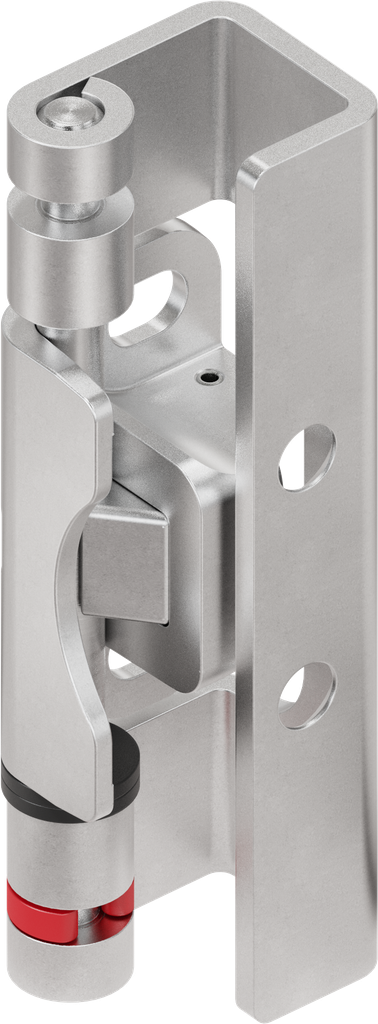

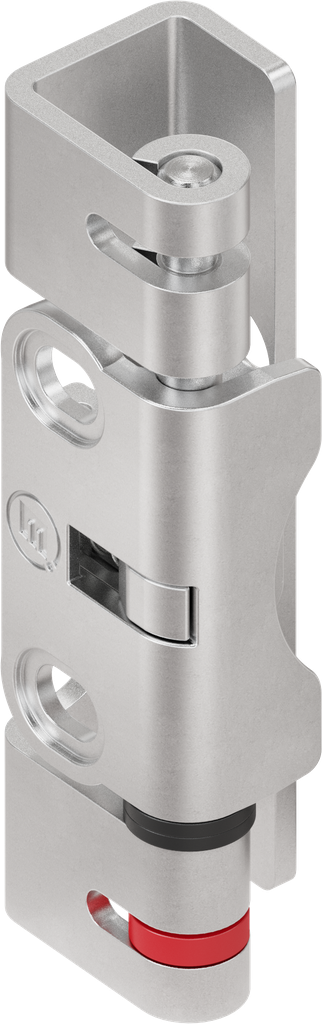

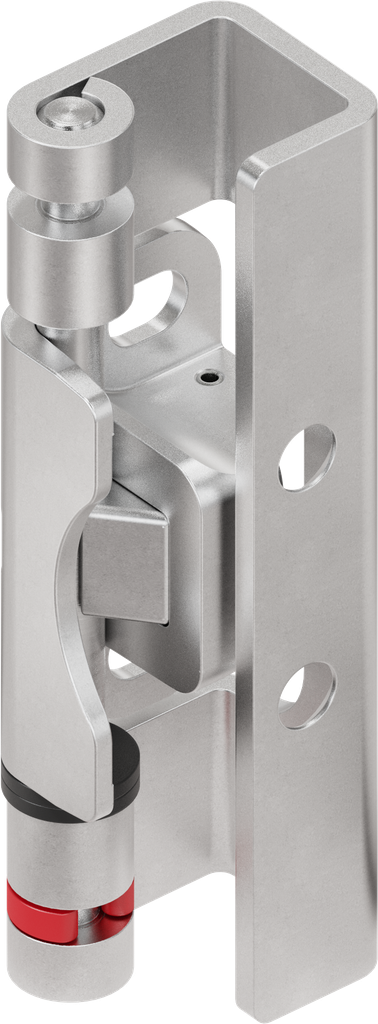

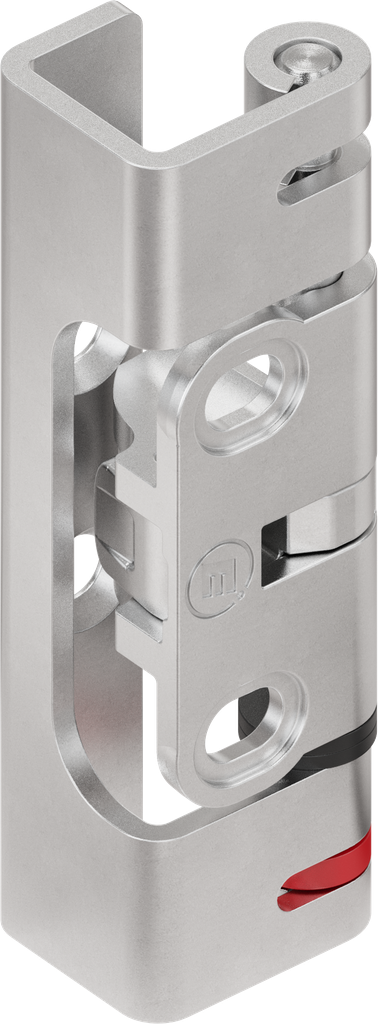

125° hinge for quick door installation, Zinc die and steel zinc-plated; 1031-U34
for M6 small-head countersunk screws
Product Benefits:
- Reduces installation time and, where applicable, eliminates the need for a fitter
- Ideal for small modular doors/flaps where there is no space to insert a hinge pin
- Double pin locking mechanism (knurled pin and shaft clamping ring) to meet the shock and vibration requirements of DIN EN 61373 Cat. 1B
- Slotted holes in the door panel for precise door alignment
- Can be fitted in the left or right version
- Excellent sliding properties
- Successfully tested in long-term trials
Product information:

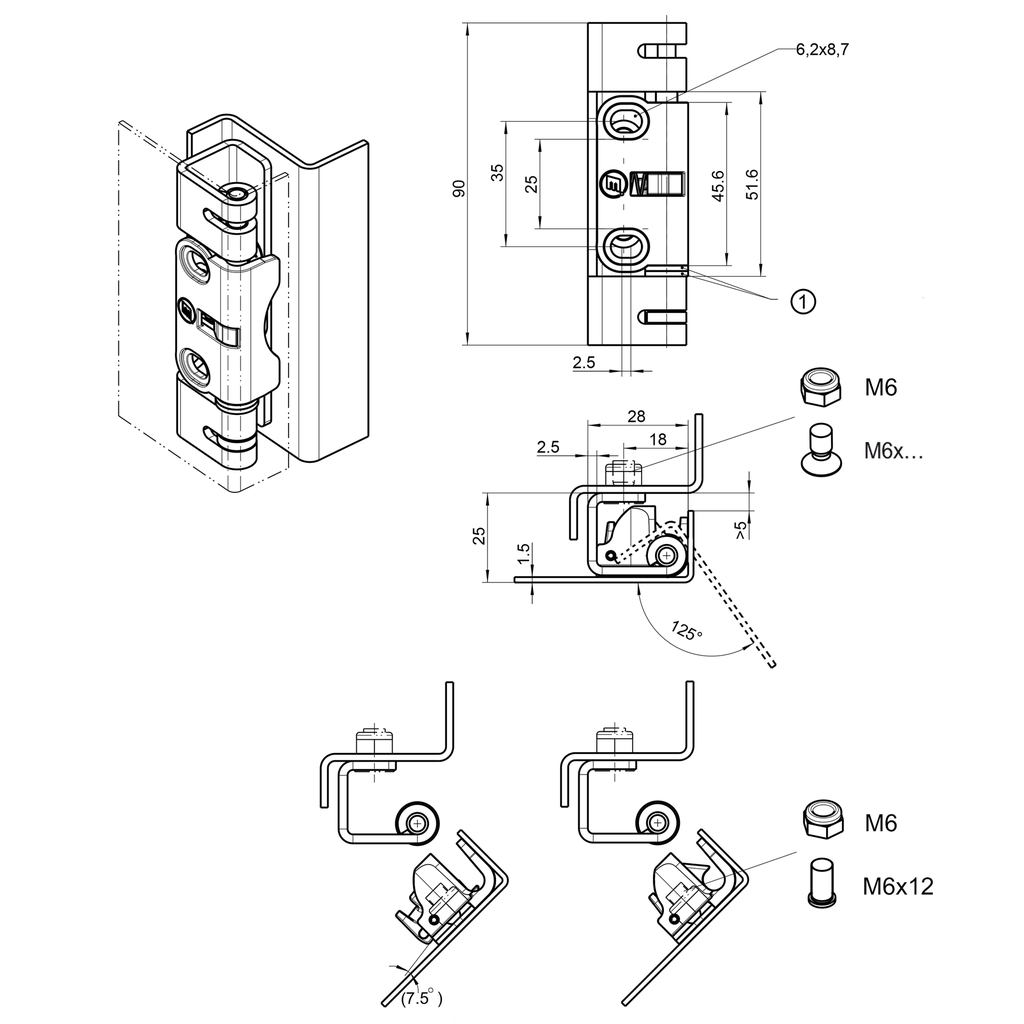

1 = Two sliding washers (mounting position)
Internal Reference:
1031-U34
Barcode:
1031-U00034-0000000
Product Type:
Hinge
Program:
1031
Material of the module :
Zinc die and steel
Surface of the module:
zinc-plated
Detachable:
without tools
Type of attachment to the frame:
screw-on, with weld stud M6 x 12
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M6
Max Opening Angle:
125°
Cabinet type :
In-line cabinets with single door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M8x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
