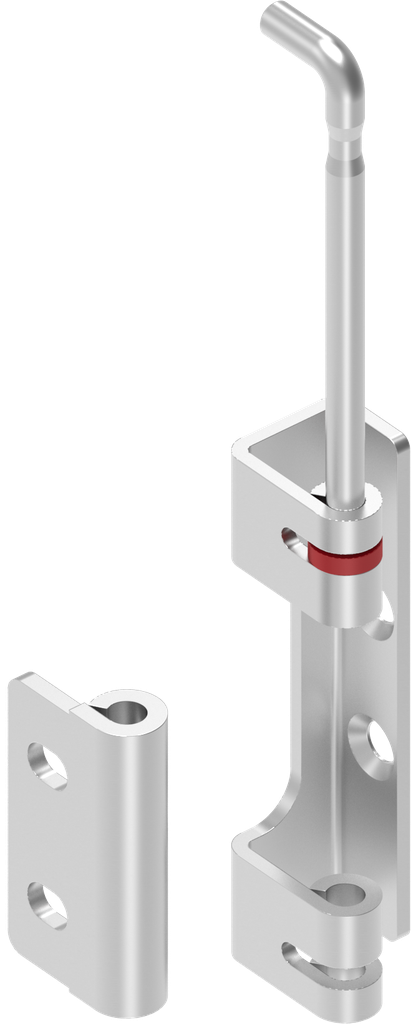

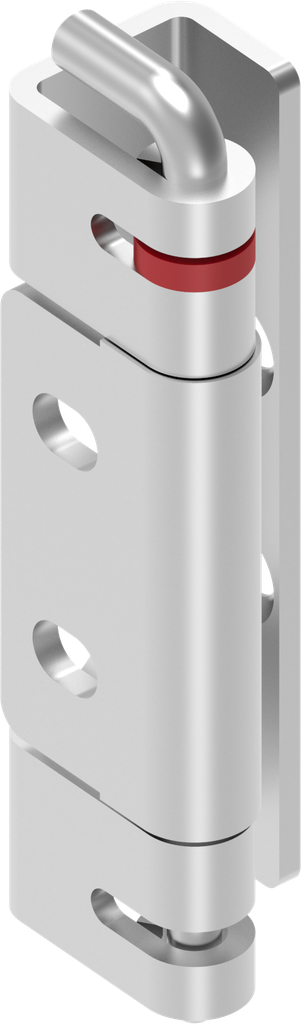

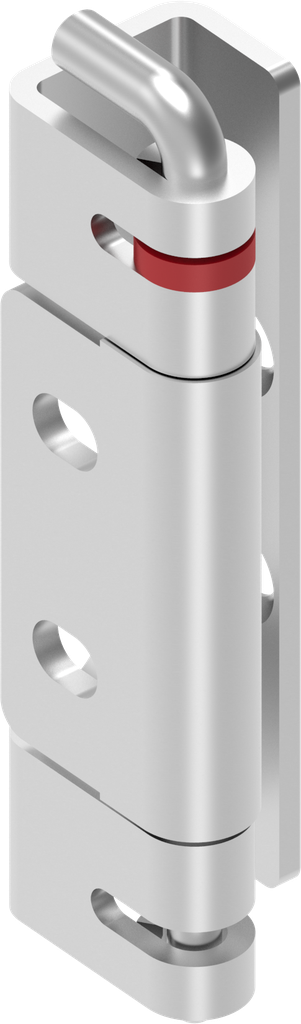

125° Hinge with captive pin, Stainless steel AISI 316Ti; 1031-U22

https://www.emka.com/products/1031-u22 https://www.emka.com/web/image/product.template/61124/image_1920?unique=6a240f2

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1031-U22
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-135
    Material of the module : Stainless steel AISI 316Ti
    Dimension A, Variable: 25 mm
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Max Opening Angle: 125°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 1.5 mm
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4A-135
    Product data sheet
    CAD file | 1031-U22_igs
    CAD file | 1031-U22_stp
