Product information:

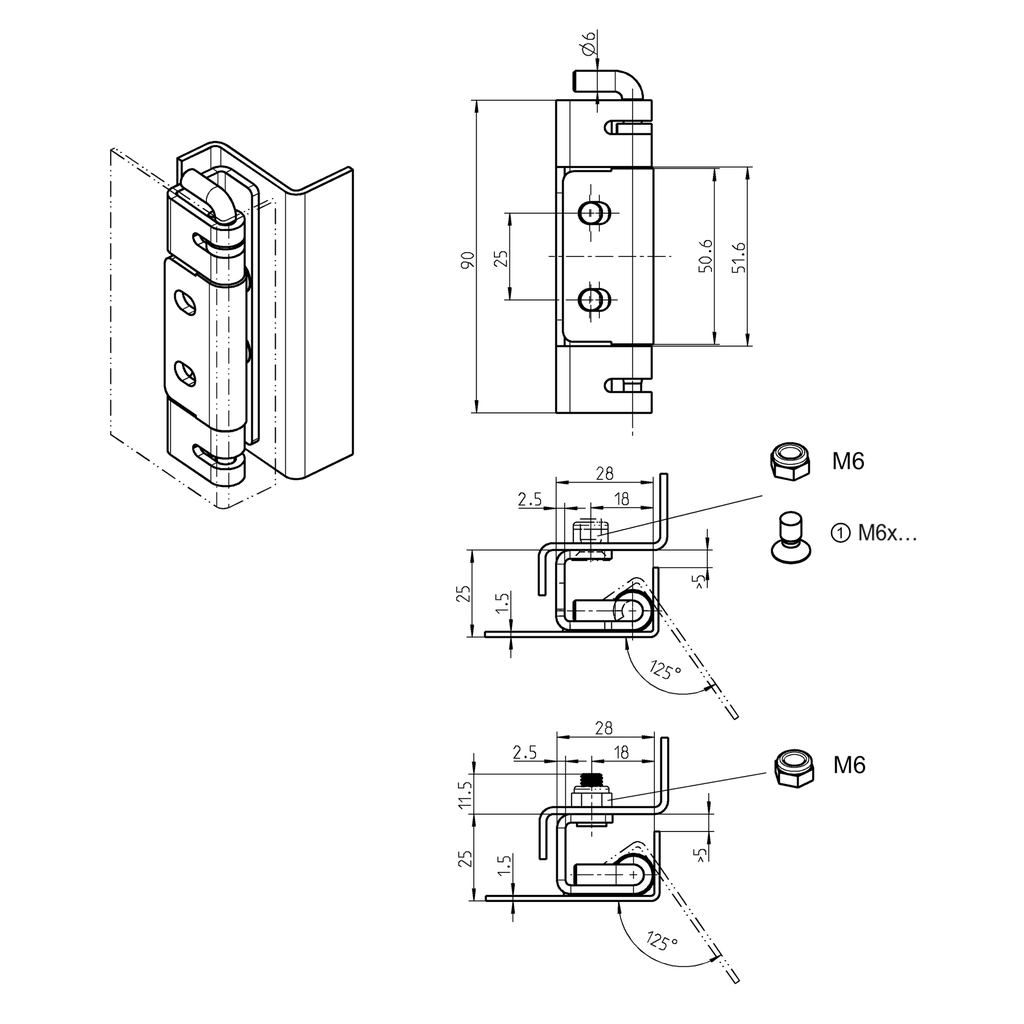

① = For version with countersunk screw with small head acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Internal Reference:
1031-U20
Product Type:
Hinge
Program:
1031
Catalog sheet:
4A-135
Material of the module :
Stainless steel AISI 304
Dimension A, Variable:
25 mm
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from inside, with press-fit threaded studs M6 x 15
Max Opening Angle:
125°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
Captive pen:
Yes
No Specifications
