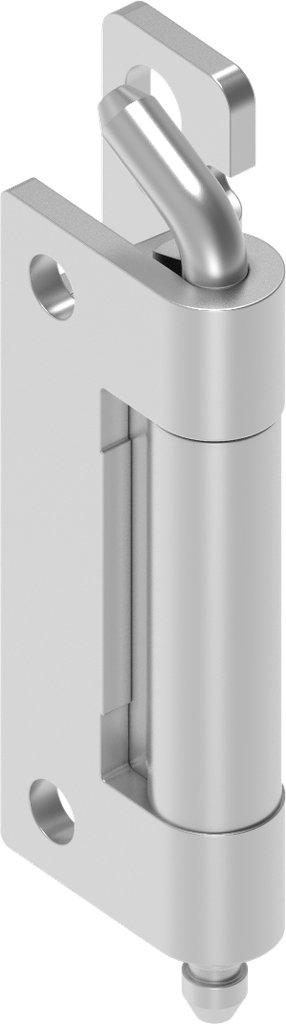

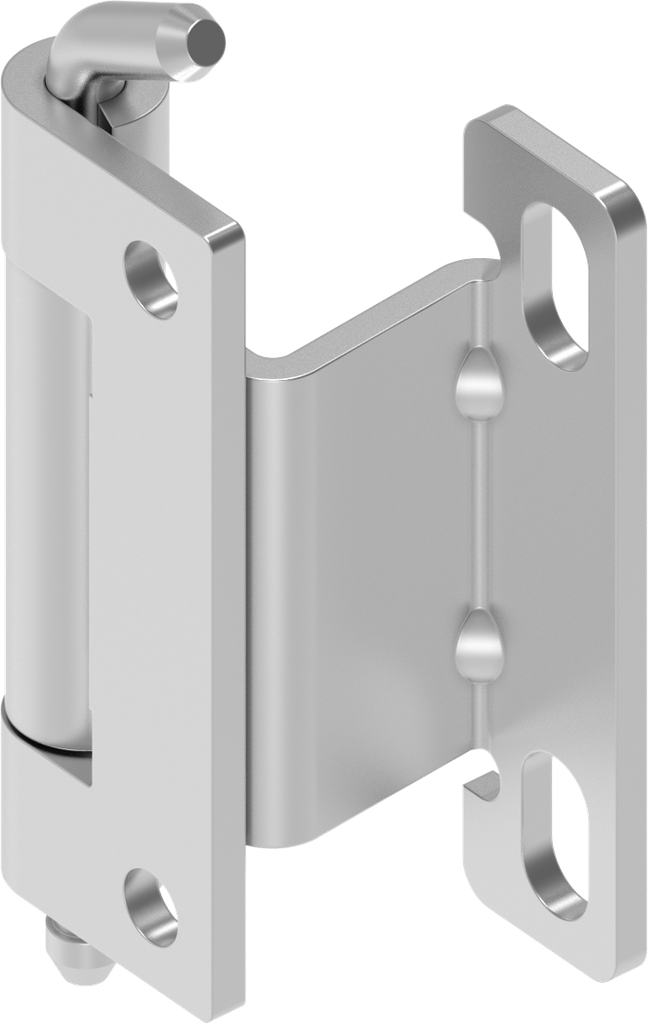

120° Hinge, Stainless steel AISI 304; 1031-U17-PC

https://www.emka.com/products/1031-u17-pc https://www.emka.com/web/image/product.template/61119/image_1920?unique=9b15a82

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1031-U17-PC
    Product Type: Hinge
    Program: 1031

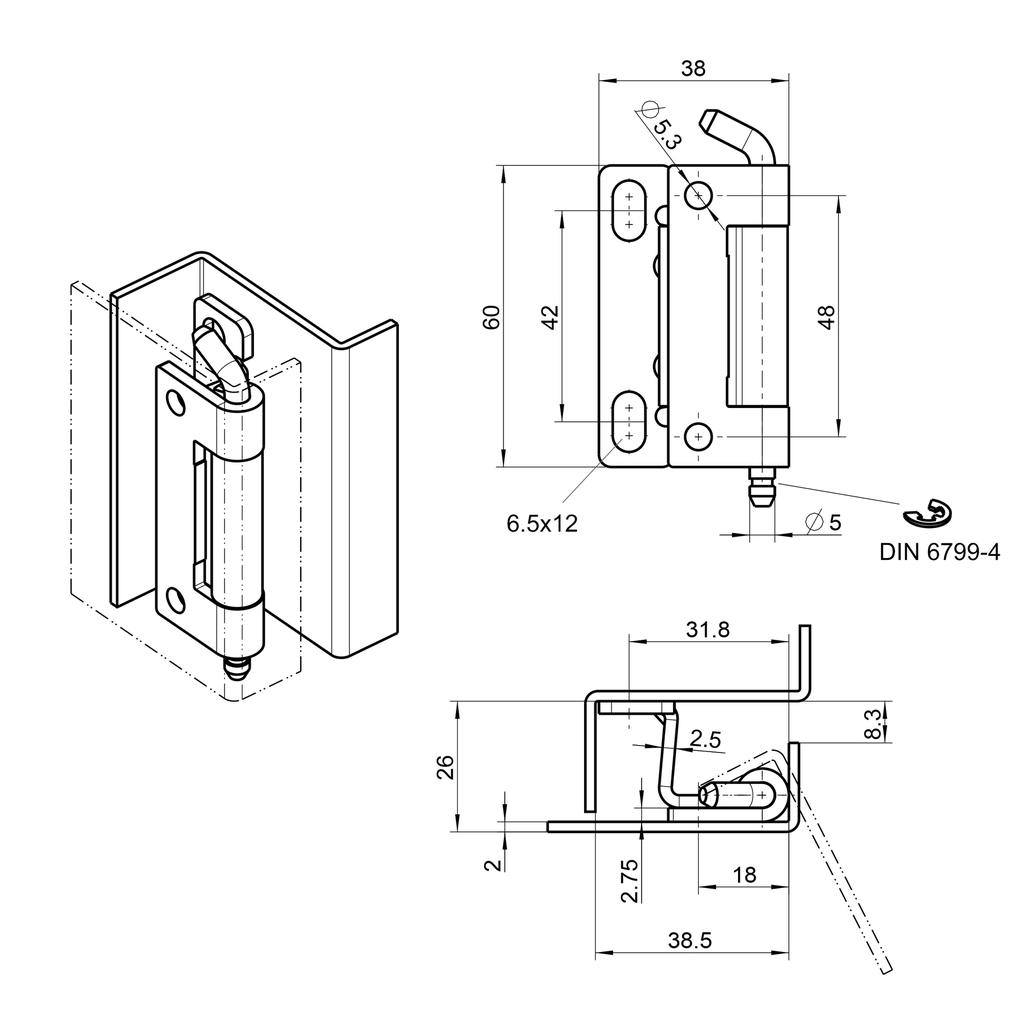

    Catalog sheet: 4A-133
    Material of the module : Stainless steel AISI 304
    Dimension A, Variable: 26 mm
    Detachable: with tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside
    Max. opening angle due to installation: Yes
    Max Opening Angle: 120°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    No Specifications
    View All Products
    Circlip
    Here you can find the product data sheets and CAD files of this product
