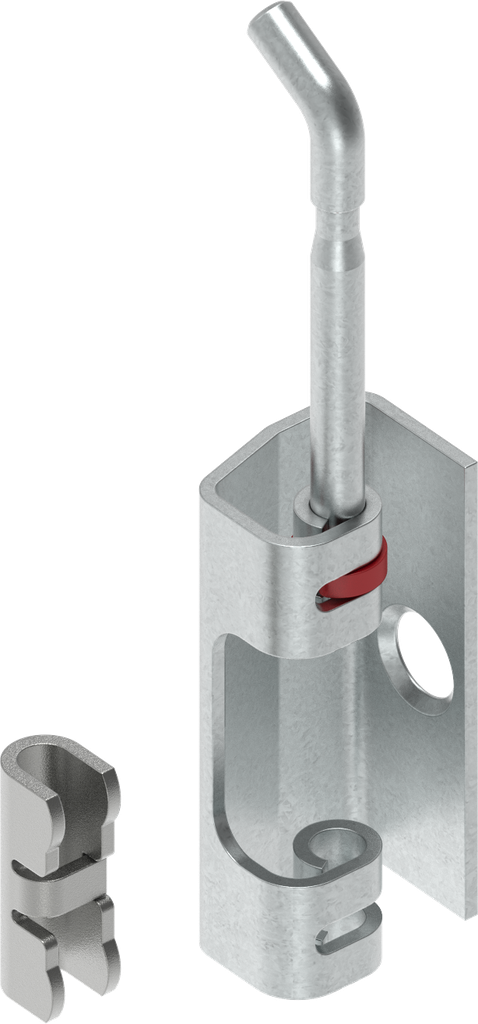

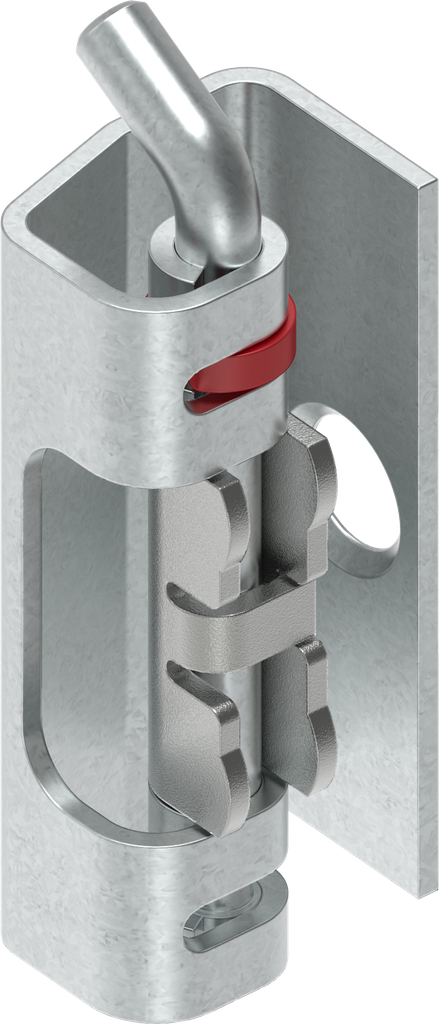

170° Hinge with captive pin, Steel zinc-plated and raw; 1031-U16
Door weld-on part m.s. raw for welding on
Product information:
Door weld-on part with weld projection
Internal Reference:
1031-U16
Product Type:
Hinge
Program:
1031
Catalog sheet:
4A-133
Material of the module :
Steel
Surface of the module:
zinc-plated and raw
Dimension A, Variable:
25 mm
Detachable:
with tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from outside
Max. opening angle due to installation:
Yes
Max Opening Angle:
170°
Cabinet type :
Single cabinets
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
Captive pen:
Yes
No Specifications
