Product information:

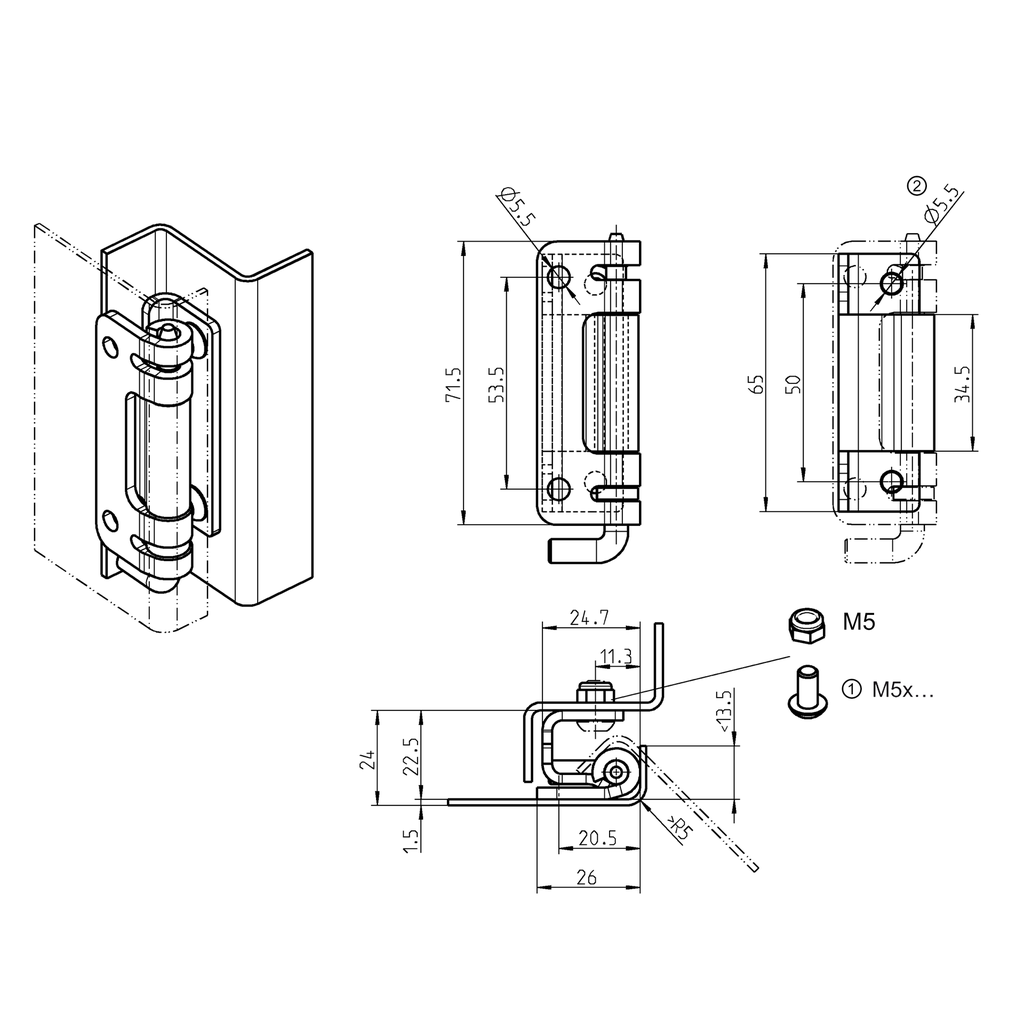

① = Oval head screw DIN ISO 7380 M5x...
② = Hinge bracket with bore hole Ø 9 on request
Internal Reference:
1031-U15
Product Type:
Hinge
Program:
1031
Catalog sheet:
4A-136
Material of the module :
Stainless steel AISI 304
Dimension A, Variable:
24 mm
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
screw-on from outside
Max Opening Angle:
135°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
Captive pen:
Yes
