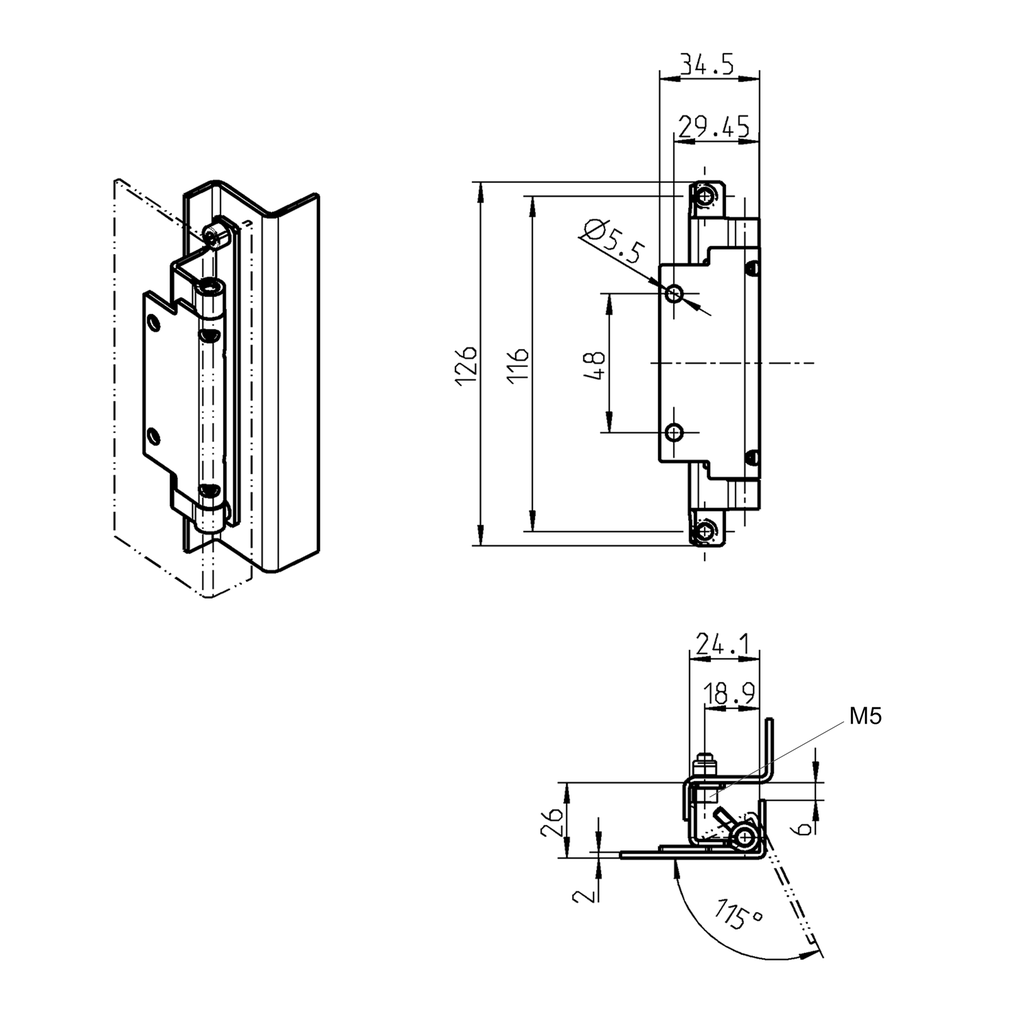

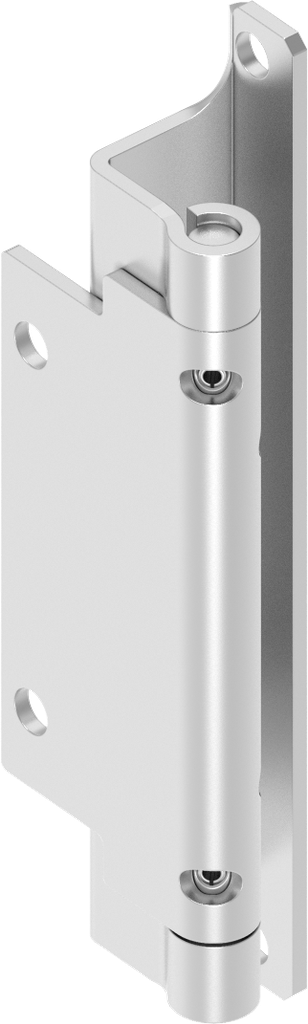

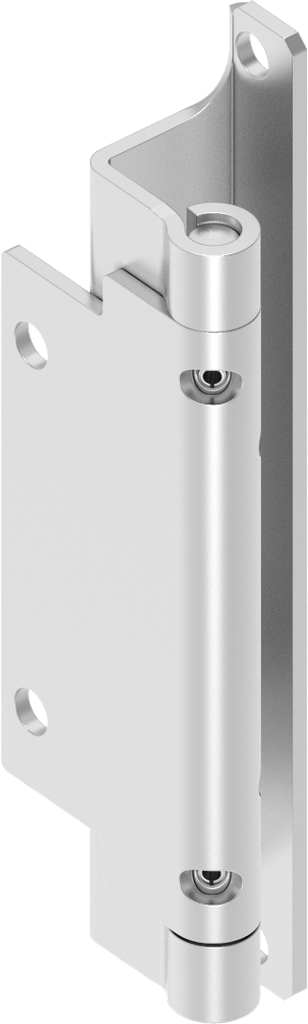

115° Hinge, Stainless steel AISI 304; 1031-U14

https://www.emka.com/products/1031-u14 https://www.emka.com/web/image/product.template/61116/image_1920?unique=cda89e1

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1031-U14
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-137
    Material of the module : Stainless steel AISI 304
    Dimension A, Variable: 26 mm

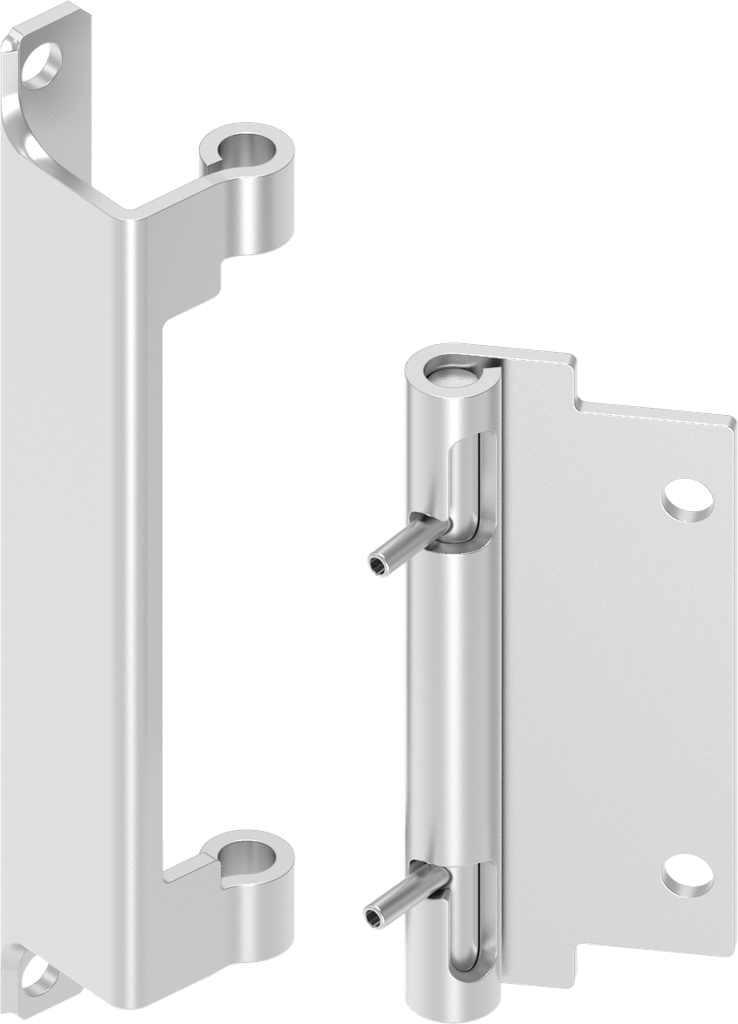

    Detachable: without tools
    Type of attachment to the frame: screw-on
    Type of fastening on the door: weld-on
    Max. opening angle due to installation: Yes
    Max Opening Angle: 115°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 2 mm
    Captive pen: Yes
