120° Hinge, Steel zinc-plated
120° Hinge, Steel zinc-plated
125° Hinge with captive pin, Stainless steel AISI 304 tumbled and blasted
125° Hinge with captive pin, Stainless steel AISI 304 tumbled and blasted

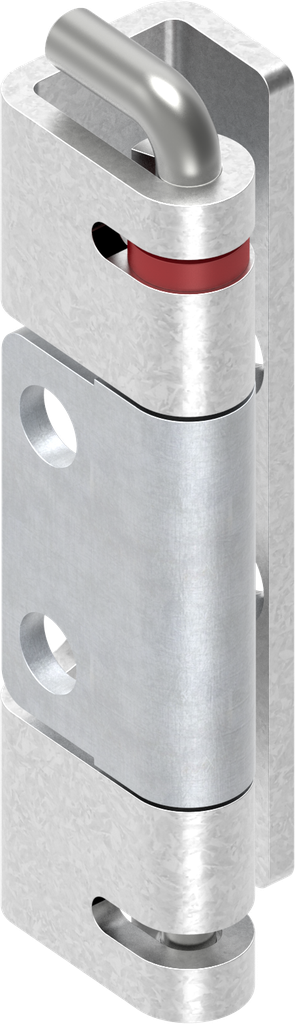

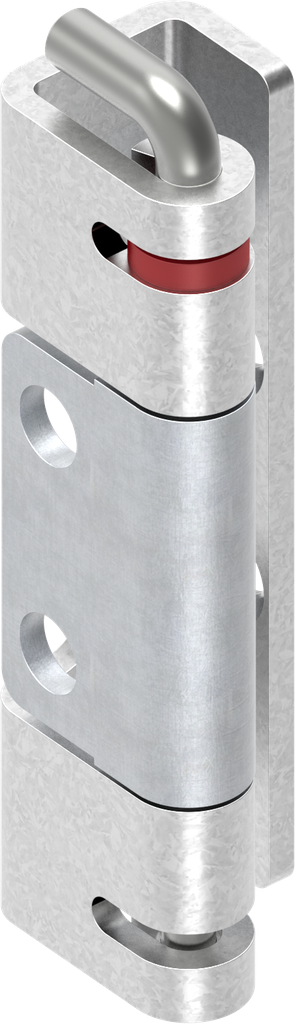

125° Hinge with captive pin, Steel zinc-plated and raw; 1031-U12

https://www.emka.com/products/1031-u12 https://www.emka.com/web/image/product.template/61114/image_1920?unique=adb9187

Roller m.s. raw for welding on

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1031-U12
    Product Type: Hinge
    Program: 1031
    Catalog sheet: 4A-135
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: 25 mm
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Max Opening Angle: 125°
    Cabinet type : Single cabinets
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left,Right
    Door thickness: 1.5 mm
    Captive pen: Yes
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
