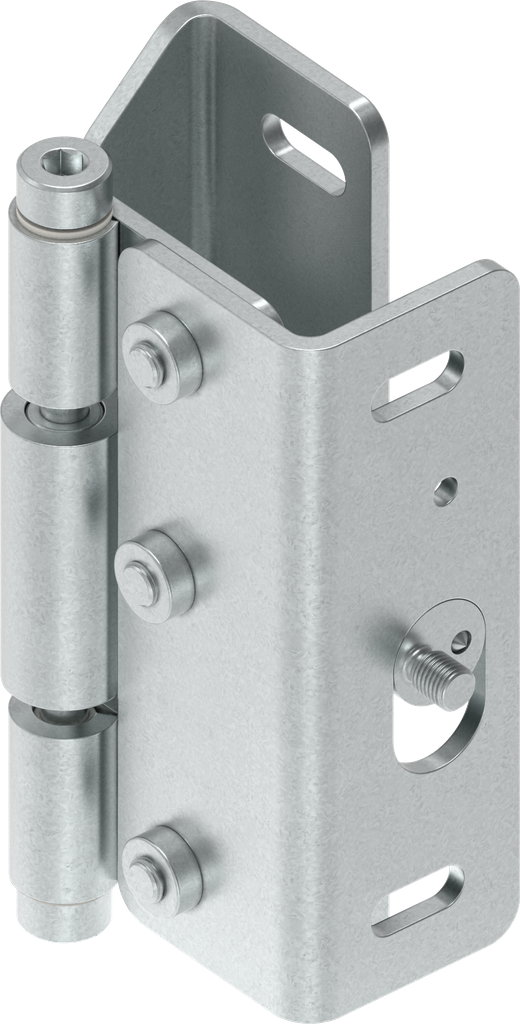

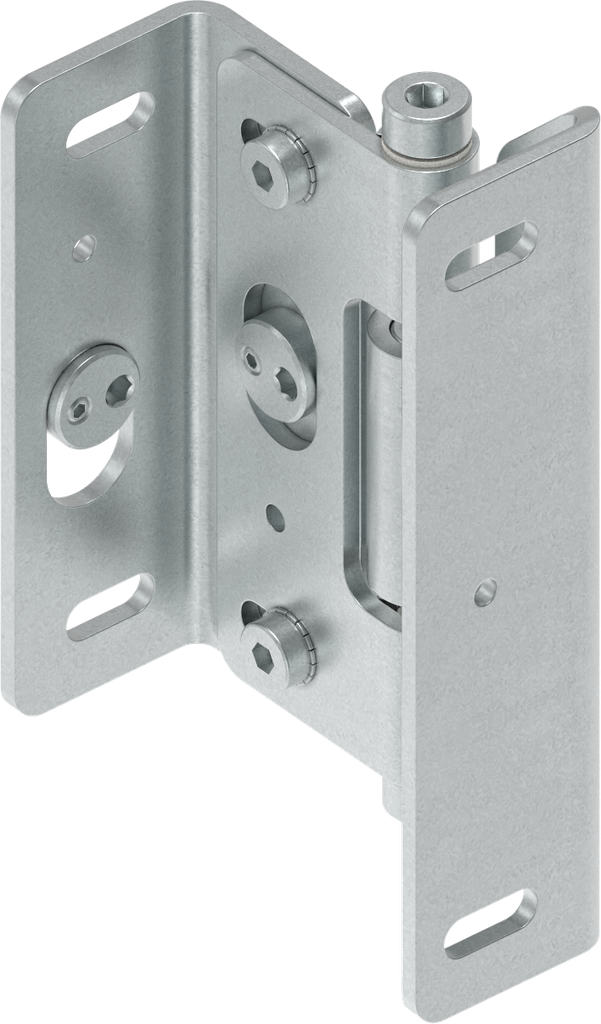

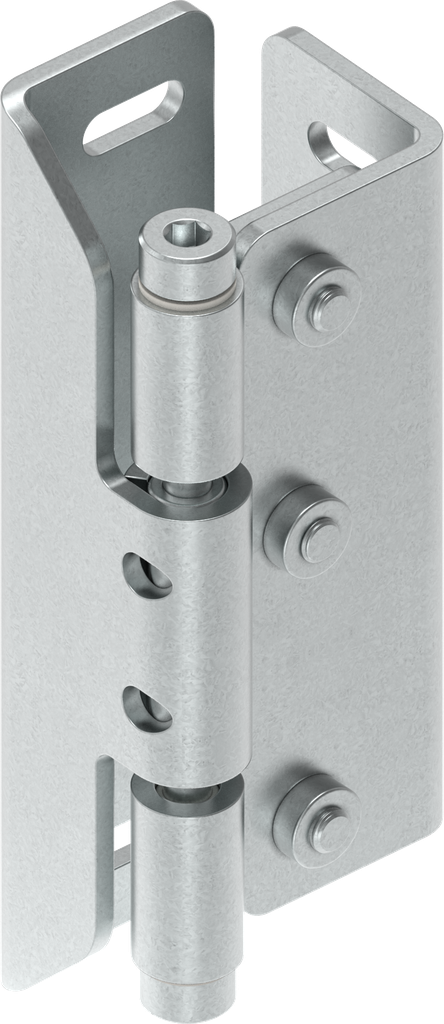

90° 3D Hinge, Steel zinc-plated; 1031-SU107

https://www.emka.com/products/1031-su107 https://www.emka.com/web/image/product.template/61108/image_1920?unique=222ae12

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us

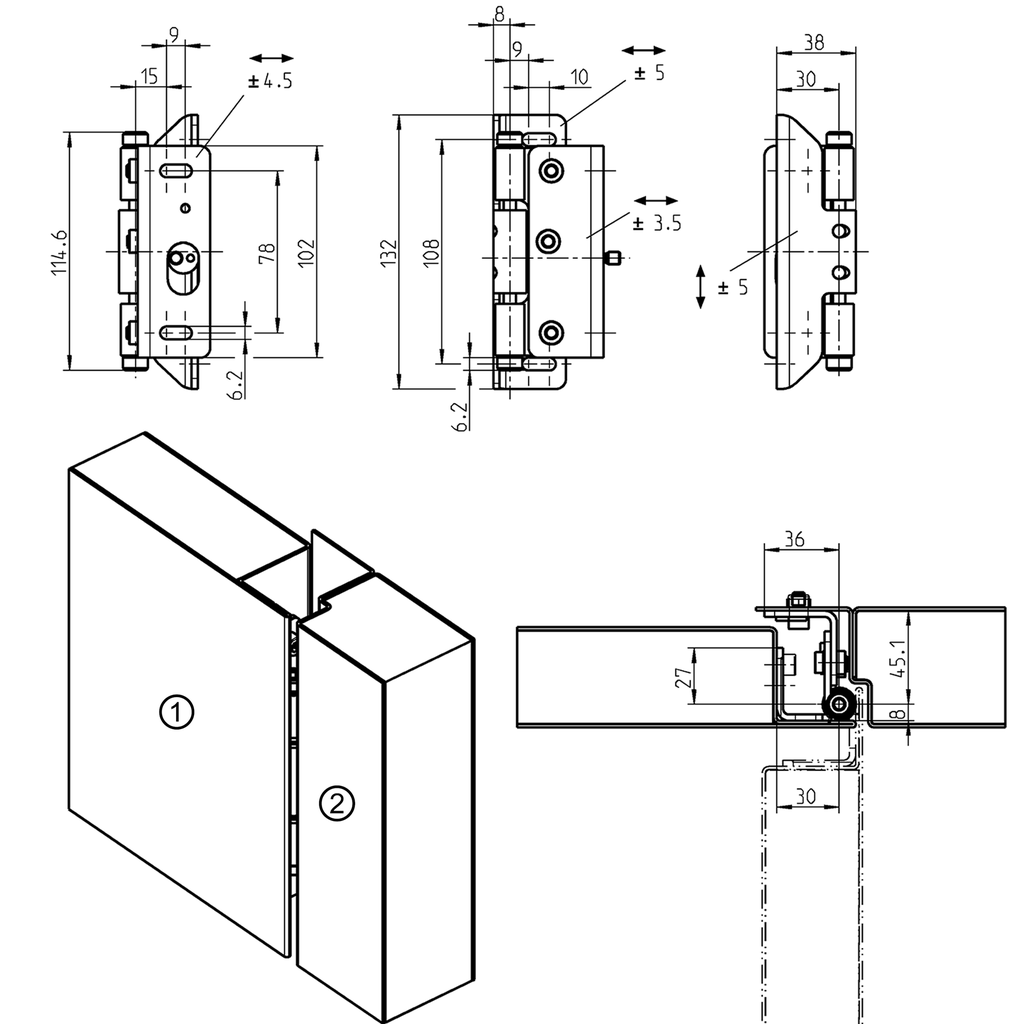

    Product information:

    1 = Door / Flap
    2 = Frame
    Internal Reference: 1031-SU107
    Product Type: Hinge
    Program: 1031
    Material of the module : Steel
    Surface of the module: zinc-plated
    Door return variable: Yes
    Type of attachment to the frame: screw-on
    Type of fastening on the door: screw-on
    Adjustable : 3D
    Max Opening Angle: 90°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
