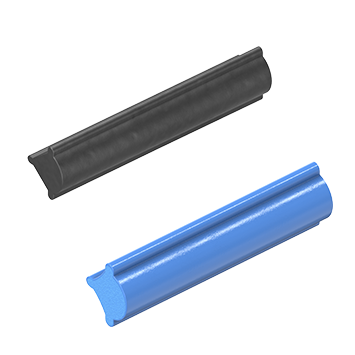

Filler for clamping profile, Silicon solid material 85 ± 5 Shore A blue
Weld-on hinge, Steel raw

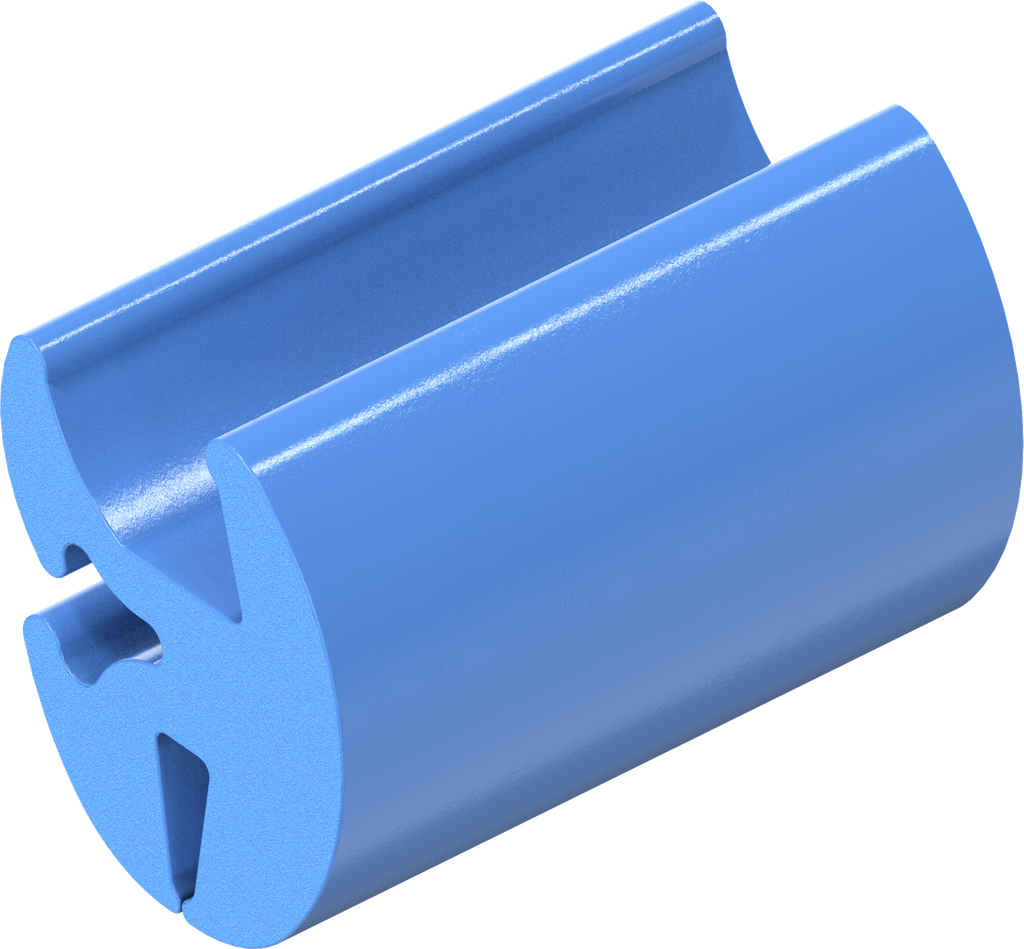

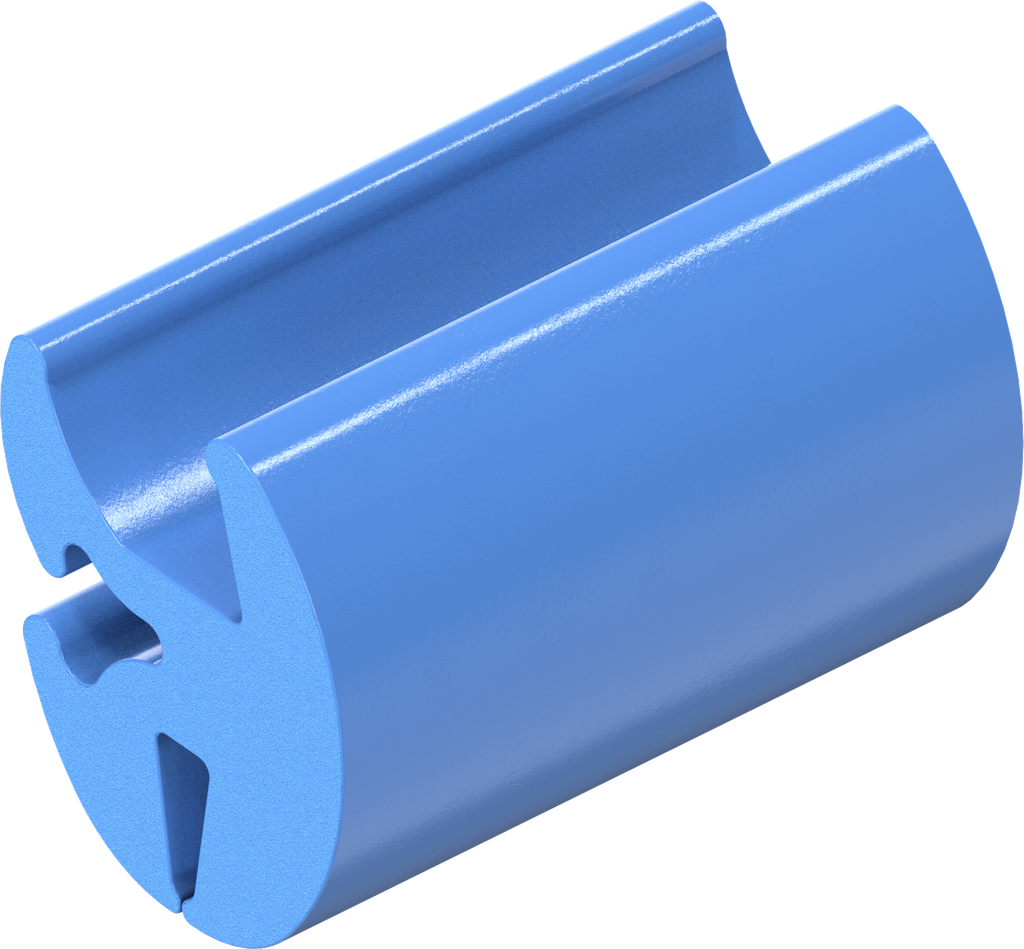

Clamping profile, Silicon solid material 60 ± 5 Shore A; 1030-S14
Seal made of FDA compliant material
Product information:

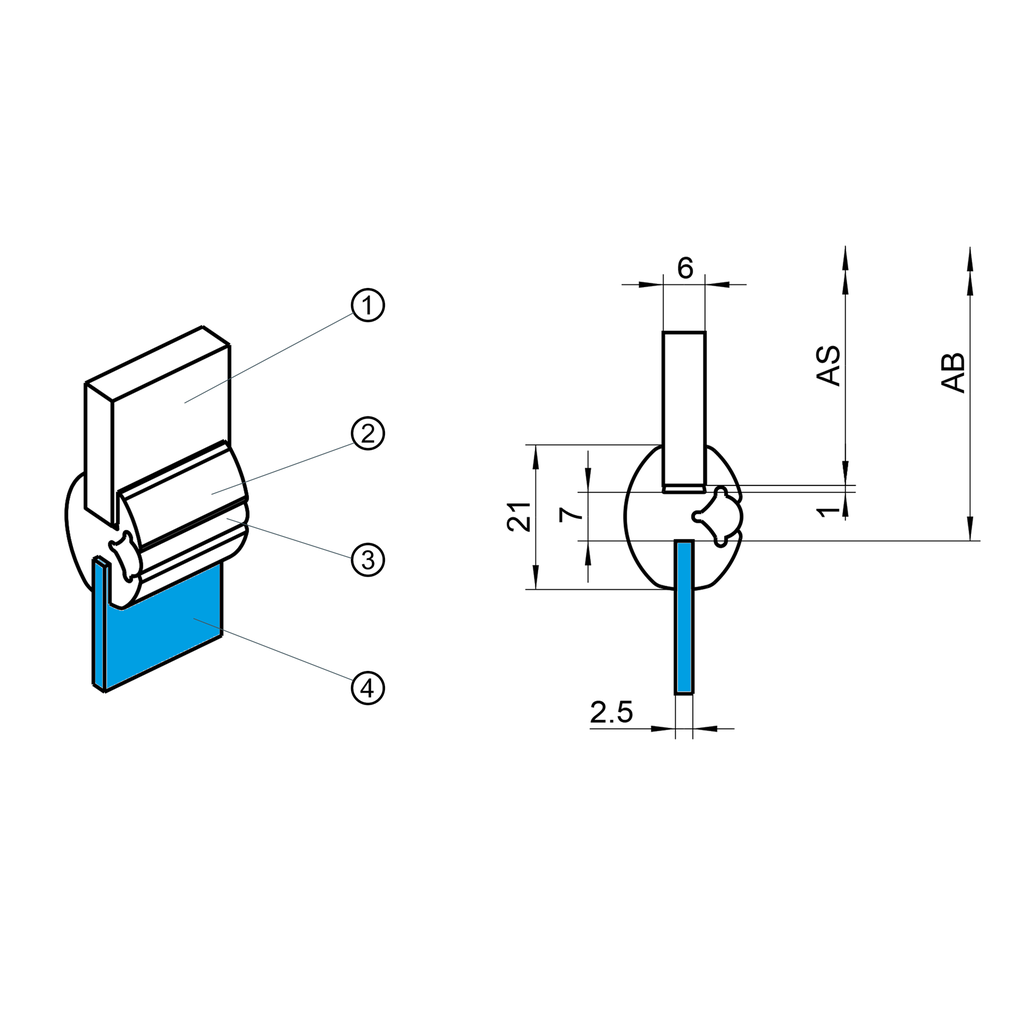

1 = Window 2 = Clamping profile 3 = Filler 4 = Metal sheet AS = Dimension window AB = Dimension metal sheet cut out The indication of the bending radius refers to the window receiver = AS +1 mm
The indication of the bending radius refers to the window receiver = AS +1 mm
Internal Reference:
1030-S14
Product Type:
Seal
Material:
Silicon solid material 60 ± 5 Shore A
Program:
8400
Special industrial requirements:
The used compounds are compliant with the requirements of FDA 21 CFR 177.2600
Seal Type:
Clamping profile with filler
Clamping profile dimension d for sheet metal:
2.5 mm
Clamping profile dimension D for window:
6 mm
