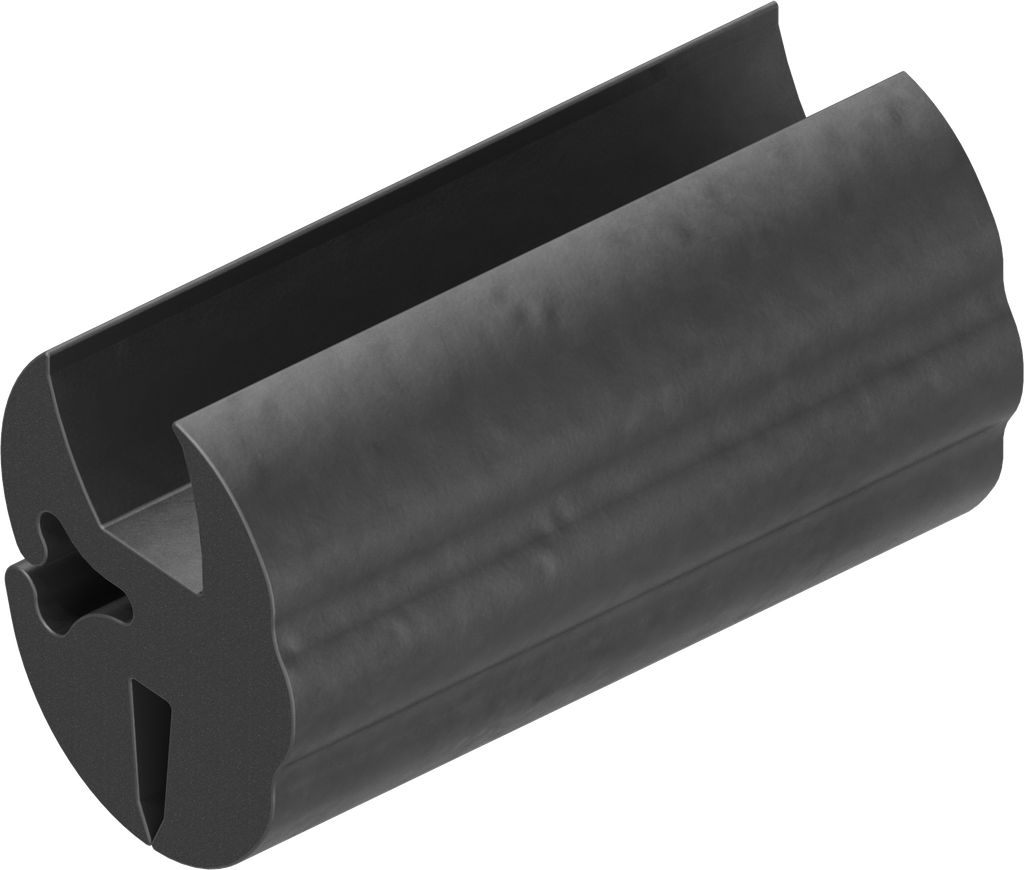

Filler for clamping profile, EPDM 85 ± 5 Shore A black
Filler for clamping profile, EPDM 85 ± 5 Shore A black
Product information:

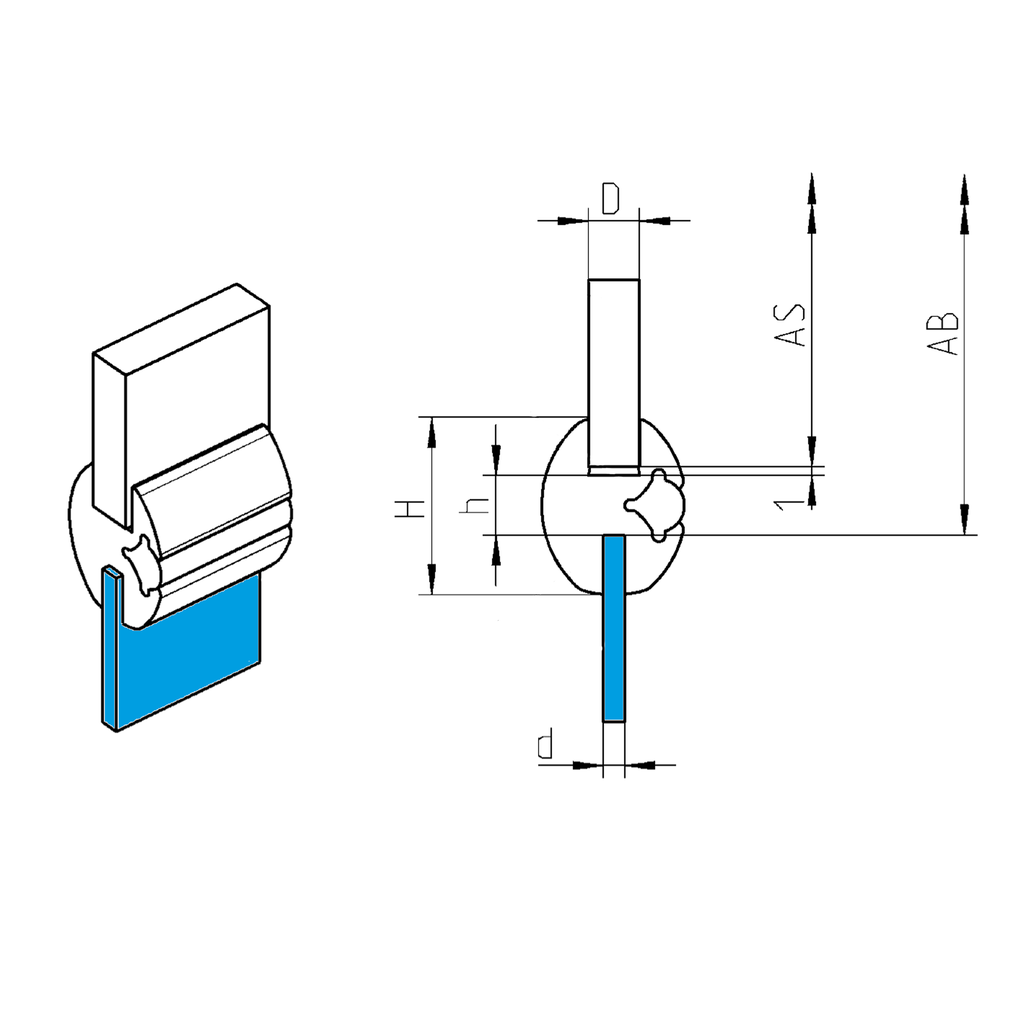

The indication of the bending radius refers to the window receiver = AS +1 mm
AS = Window dimension
AB = Dimension metal sheet cut out
Internal Reference:
1030-07
Product Type:
Seal
Material:
EPDM 75 ± 5 Shore A
Program:
1030
Surface:
black
Dimension d:
2 mm
Dimension D:
5 mm
Seal Type:
Clamping profile with filler
Dimension h:
5 mm
Dimension H:
17 mm
Clamping profile dimension d for sheet metal:
2 mm
Clamping profile dimension D for window:
5 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
