Insert part slot 1.5 x 3, Polyamide GF black
Insert part slot 1.5 x 3, Polyamide GF black
Clamping profile, EPDM 75 ± 5 Shore A black
Clamping profile, EPDM 75 ± 5 Shore A black

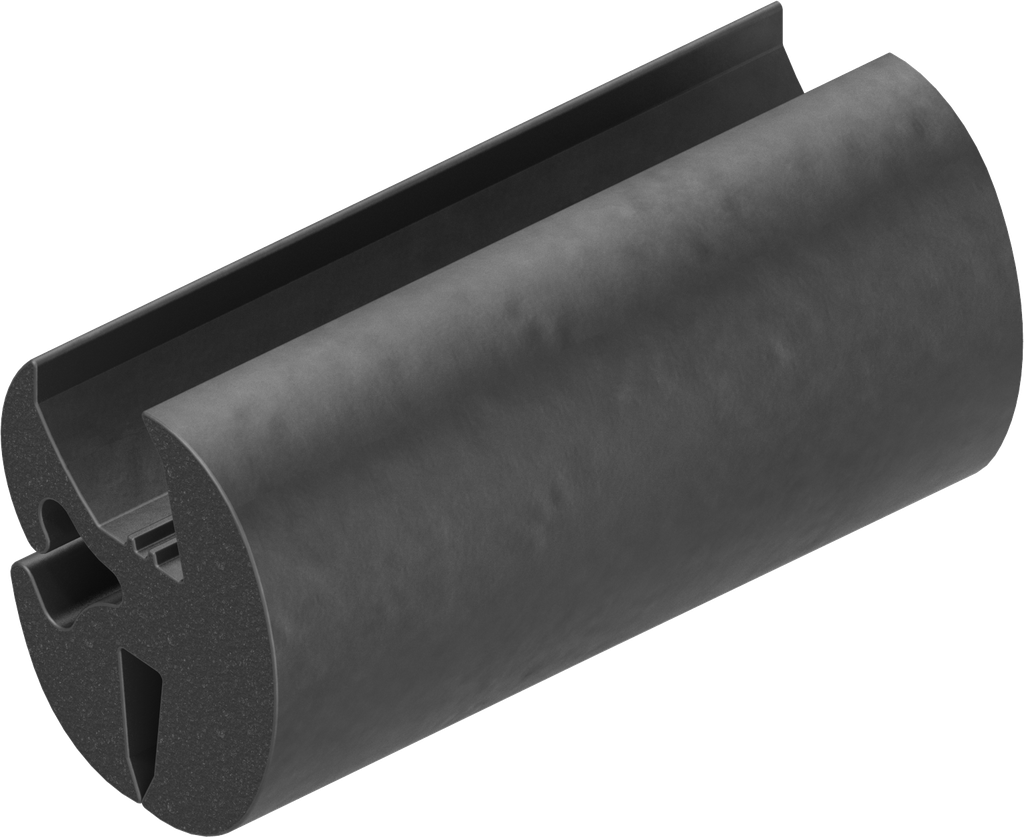

Clamping profile, EPDM 75 ± 5 Shore A black; 1030-01

https://www.emka.com/products/1030-01 https://www.emka.com/web/image/product.template/61034/image_1920?unique=ee7b9c3

    This combination does not exist.

    Contact Us

    Akeneo Note:

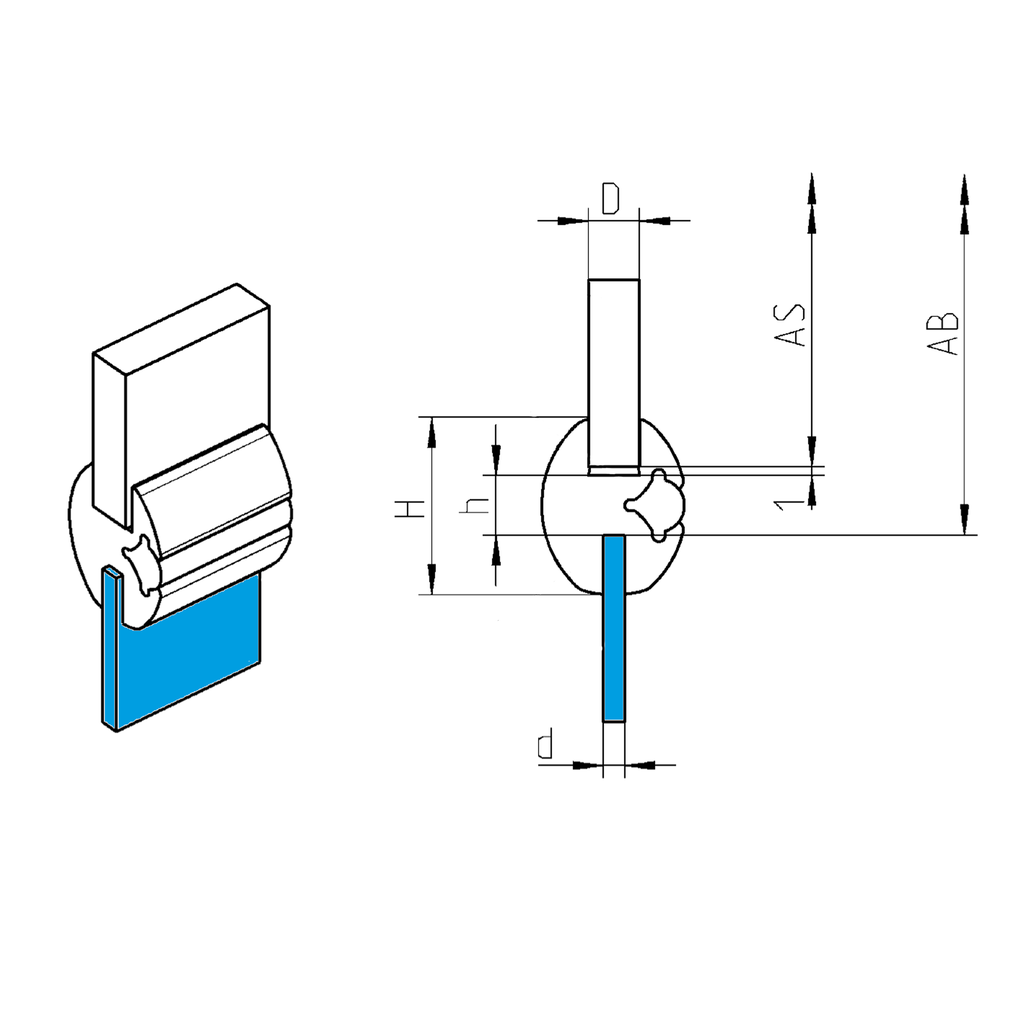

    Bending radius > 30 mm
    AB = AS + 10 mm
    Internal Reference: 1030-01
    Product Type: Seal
    Material: EPDM 75 ± 5 Shore A
    Program: 1030
    Surface: black
    Dimension d: 2 mm
    Dimension D: 4 mm
    Seal Type: Clamping profile with filler
    Dimension h: 4 mm
    Dimension H: 15 mm
    Clamping edge is or is up to: 2
    Clamping profile dimension d for sheet metal: 2 mm
    Clamping profile dimension D for window: 4 mm
    No Specifications
    View All Products

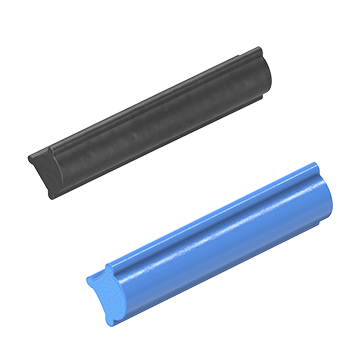

    Filler
    Accessories general
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1030-01_igs
    CAD file | 1030-01_stp
