Dust cap, Polyethylene black
Dust cap, Polyethylene black
Cam, Steel zinc-plated
Cam, Steel zinc-plated

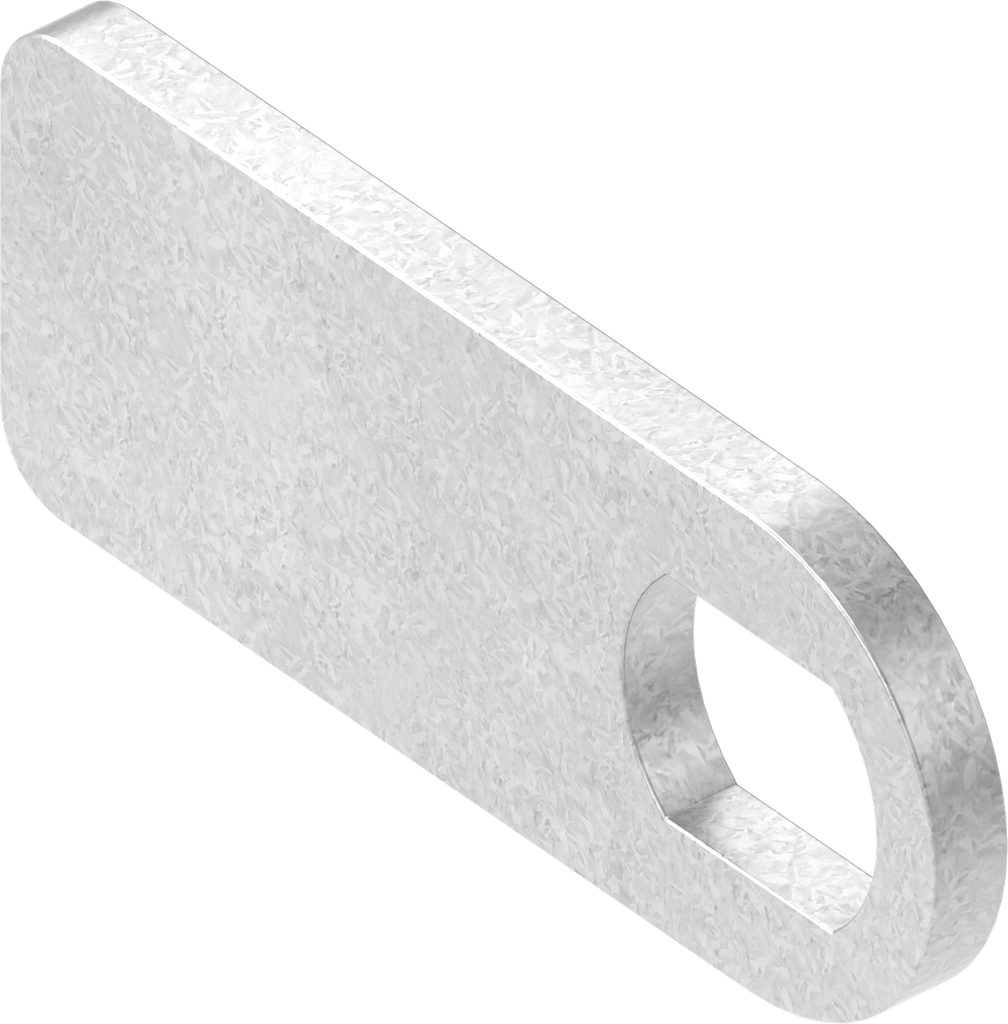

Cam, Steel zinc-plated; 1022-49

https://www.emka.com/products/1022-49 https://www.emka.com/web/image/product.template/60879/image_1920?unique=32f6e89

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing

    Akeneo Note:

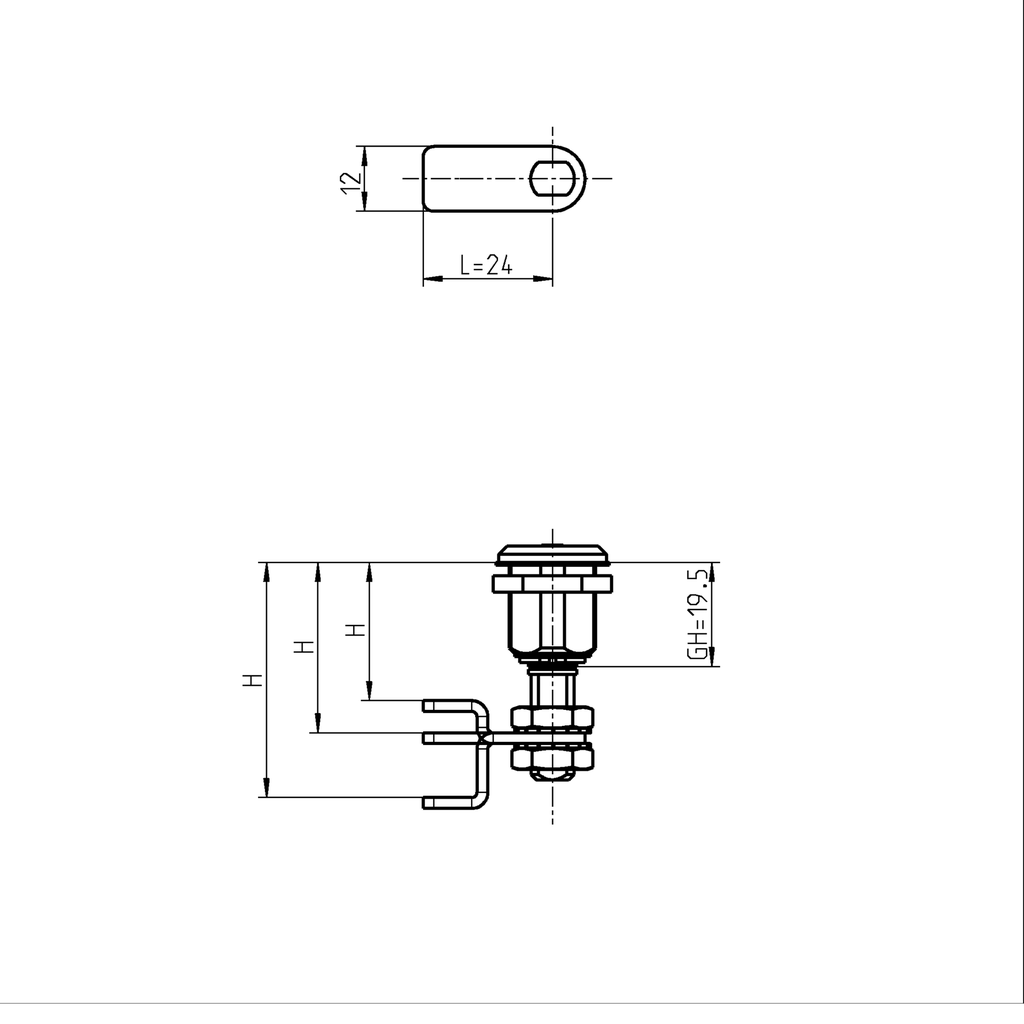

    Dimension H = 25.5 - 32.5 mm
    Internal Reference: 1022-49
    Barcode: 1022-000049-0000000
    Product Type: Cam
    Material: Steel
    Program: 1022
    Surface: zinc-plated
    Catalog sheet: 1A-240
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Offset: straight
    Dimension L: 24 mm
    Dimension t: 2 mm
    No Specifications
    View All Products
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
