Cam, Steel zinc-plated
Cam, Steel zinc-plated
O-ring Ø 9.1 x 1.6, Perbunan black
O-ring Ø 9.1 x 1.6, Perbunan black

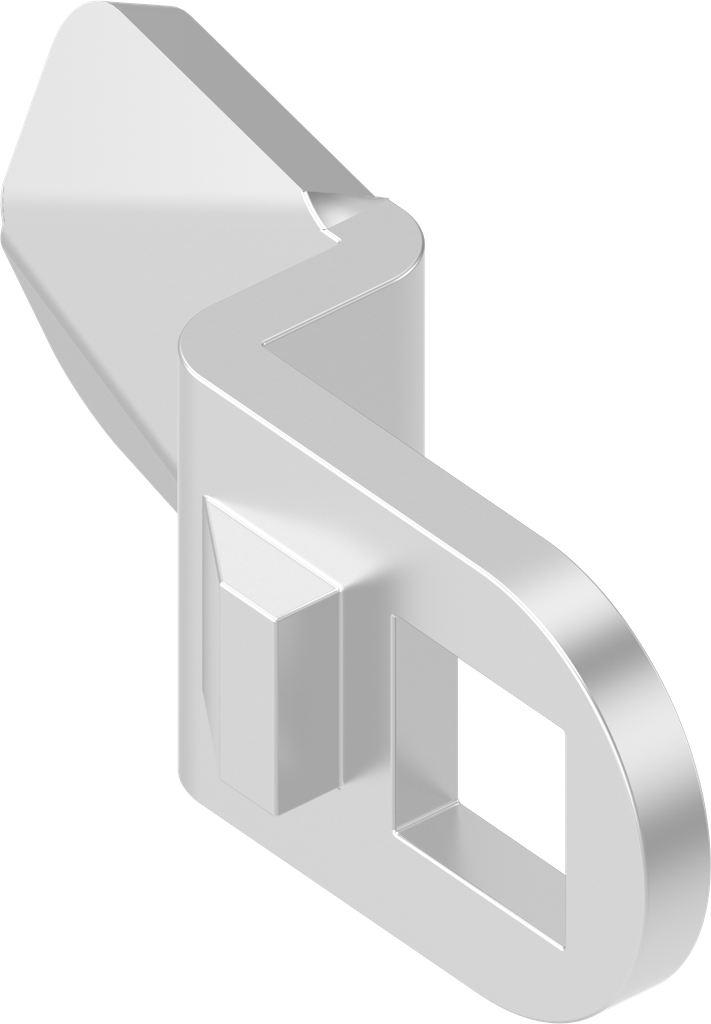

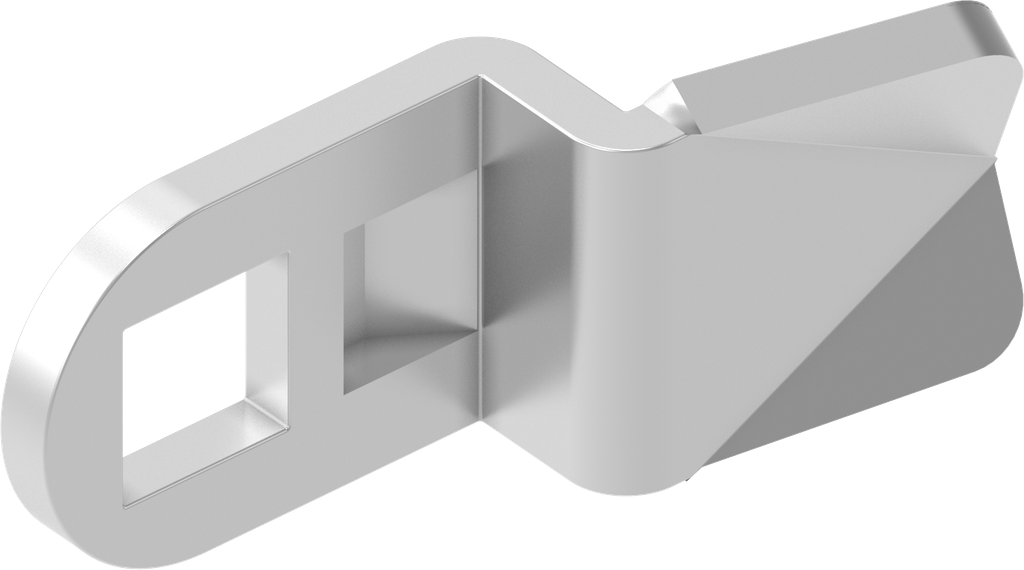

Cam, Stainless steel AISI 304; 1022-08-PC

https://www.emka.com/products/1022-08-pc https://www.emka.com/web/image/product.template/60841/image_1920?unique=2a9c912

Offset h = 6 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1022-08-PC
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1022
    Catalog sheet: 1A-120
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: positive
    offset of cam: 6 mm

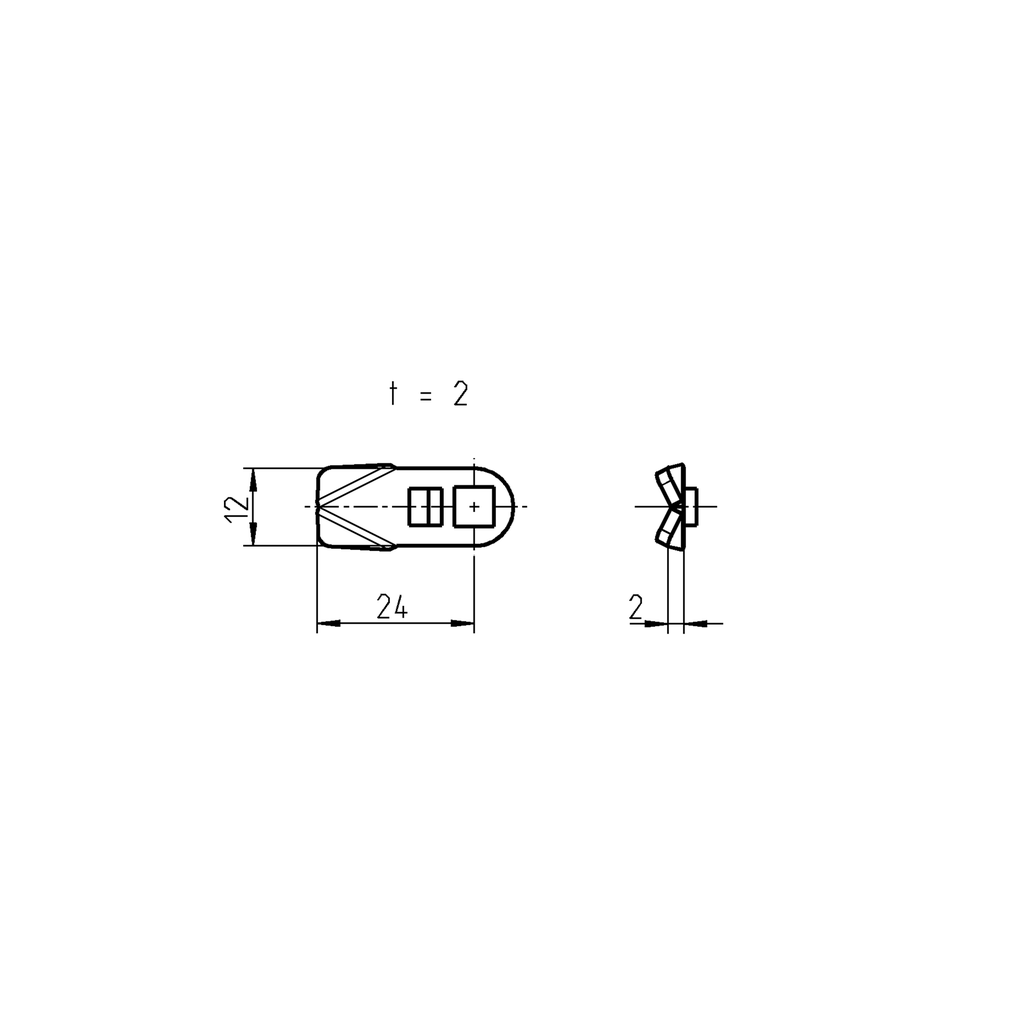

    Dimension L: 24 mm
    Spoon: Yes
    Dimension t: 2 mm
    No Specifications
    View All Products
    Housing
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1A-120
    Product data sheet
    CAD file | 1022-08-PC_igs
    CAD file | 1022-08-PC_stp
