Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated
Cam, Steel zinc-plated

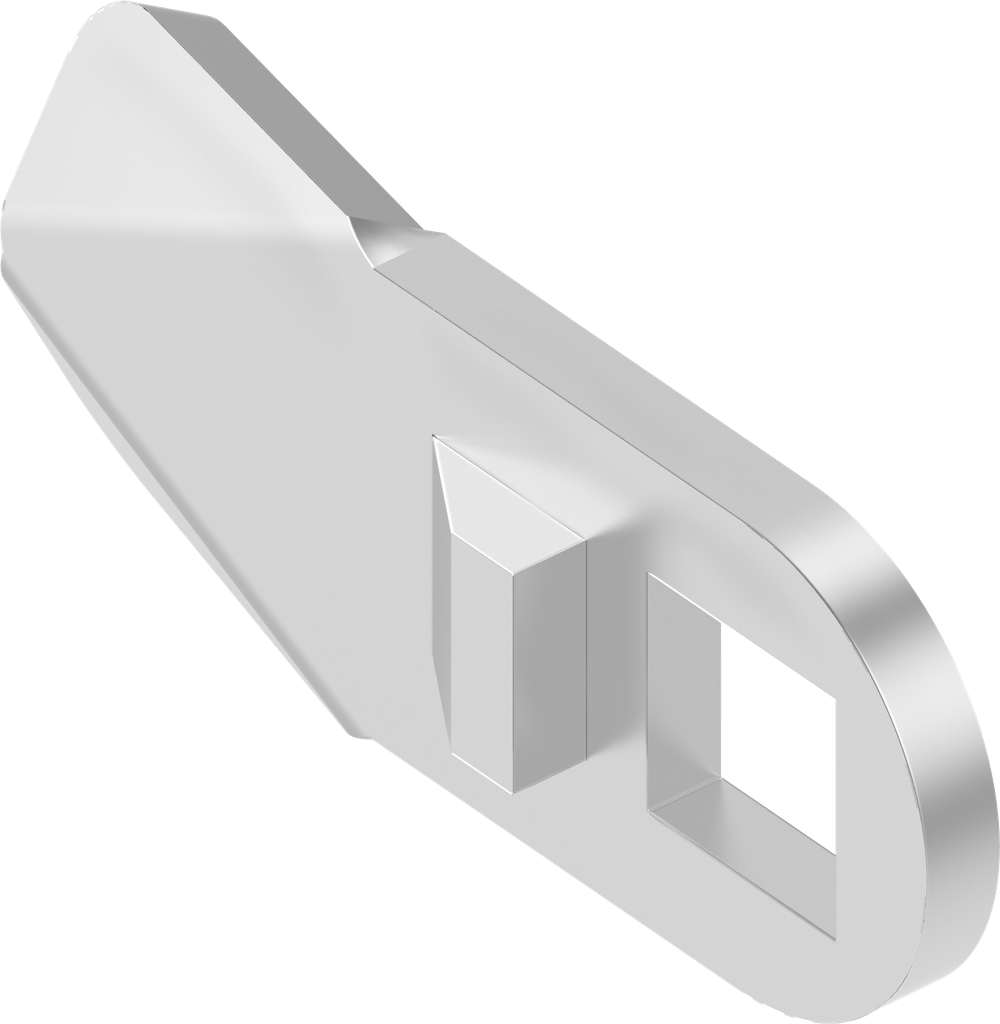

Cam, Stainless steel AISI 304; 1022-07-PC

https://www.emka.com/products/1022-07-pc https://www.emka.com/web/image/product.template/60839/image_1920?unique=3229ace

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1022-07-PC
    Product Type: Cam
    Material: Stainless steel AISI 304
    Program: 1022
    Catalog sheet: 1A-120
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: straight
    offset of cam: 0 mm
    Dimension L: 24 mm
    Spoon: Yes
    Dimension t: 2 mm
    No Specifications
    View All Products
    Housing
    Assembly
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
