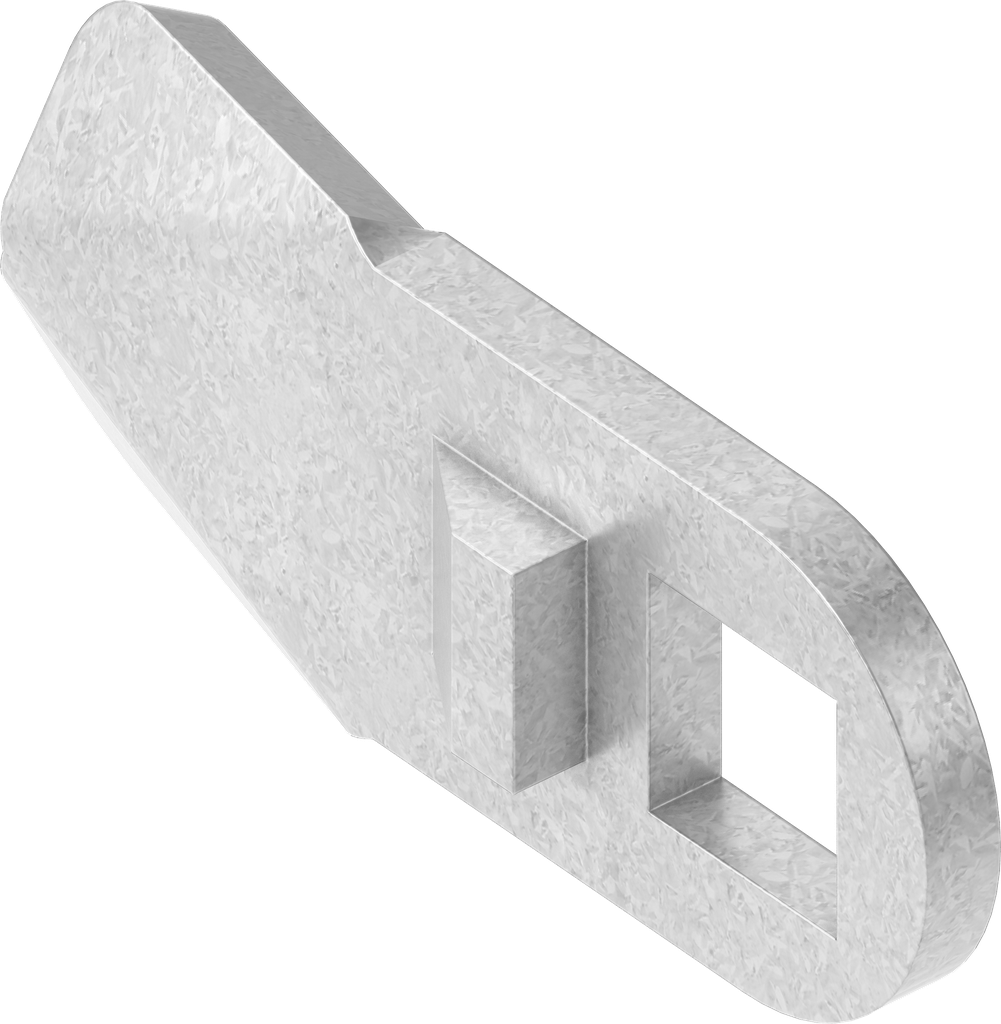

Cam, Steel zinc-plated; 1022-07

https://www.emka.com/products/1022-07 https://www.emka.com/web/image/product.template/60838/image_1920?unique=8b5b531

Offset h = 0 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1022-07
    Product Type: Cam
    Material: Steel
    Program: 1022
    Surface: zinc-plated
    Catalog sheet: 1A-140
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Compression Value : 2 mm
    Offset: straight
    offset of cam: 0 mm

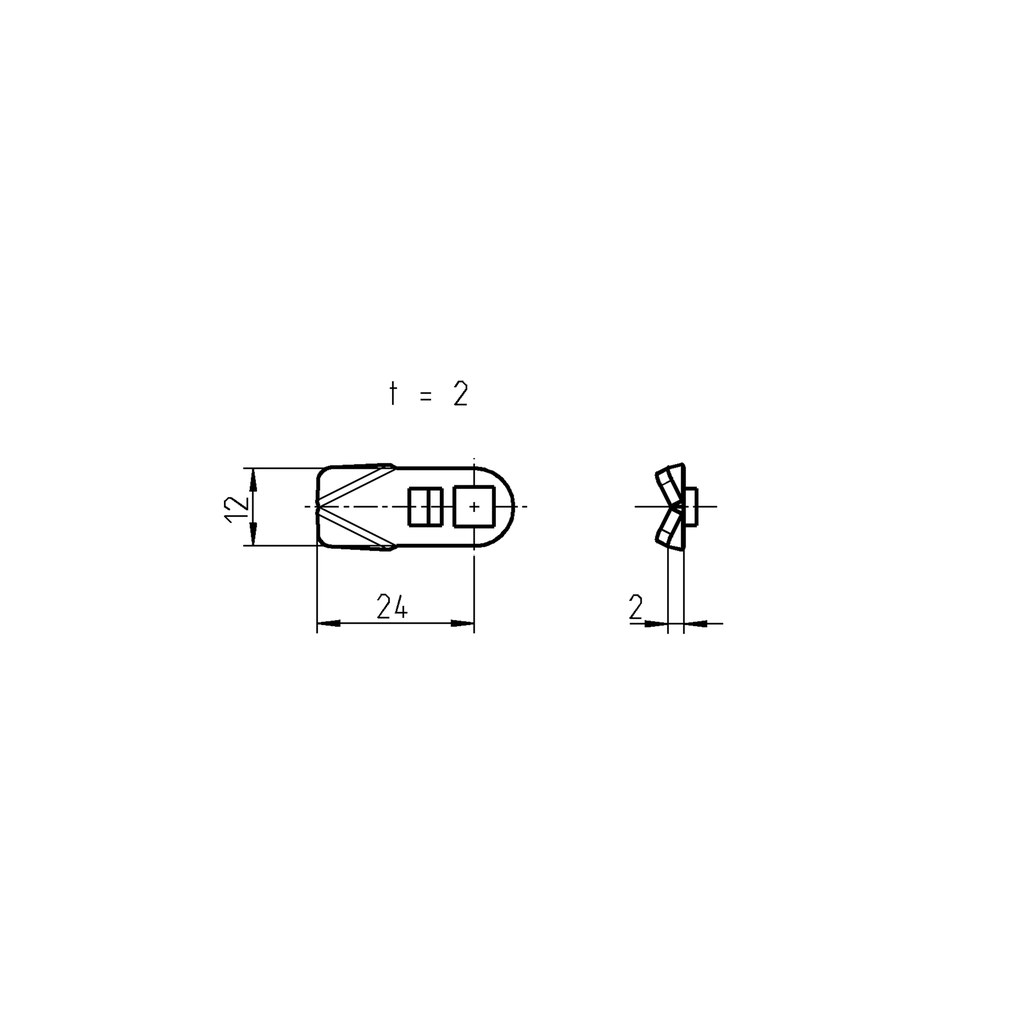

    Dimension L: 24 mm
    Spoon: Yes
    Dimension t: 2 mm
    No Specifications
