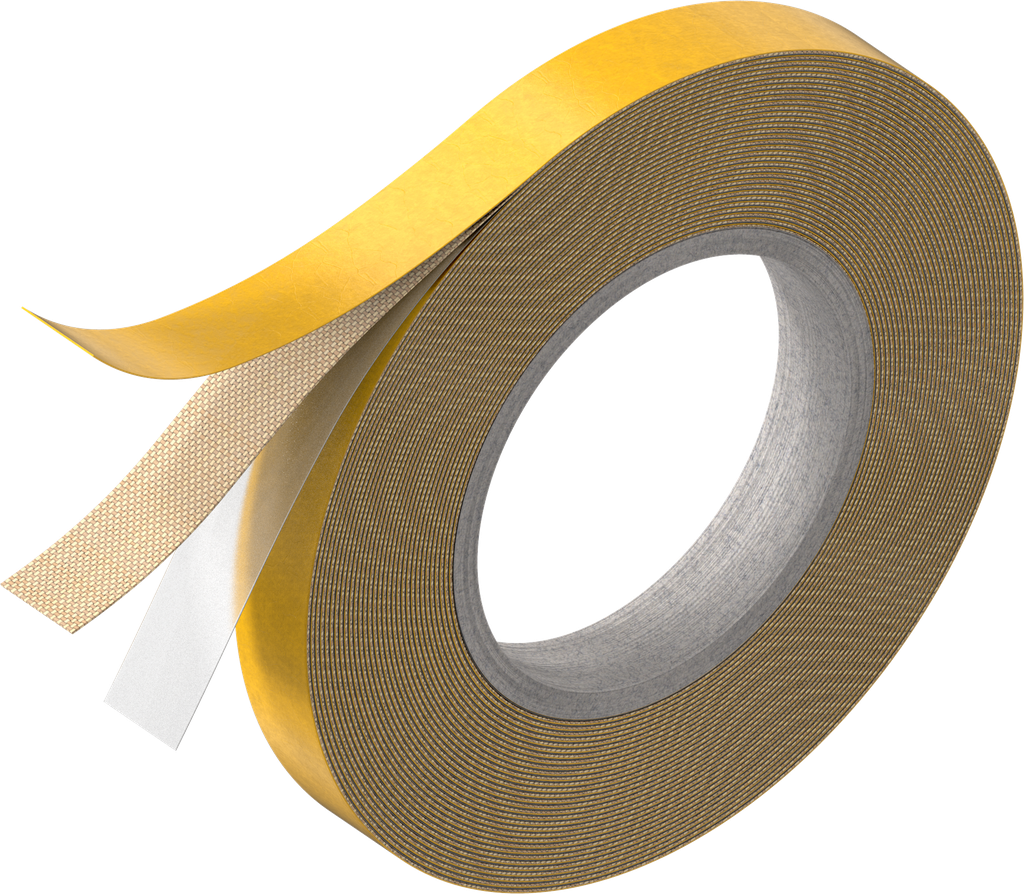

EMC conductive tape, Highly-conductive adhesive
Assembly instruction:
- The underground of the conductive tape must be free from grease and dust.
- Remove the cover from the contact strip and stick the conductive tape onto the contact surfaces on the door and frame with some pressure. For better grip, the conductive tape is wider than the mask.
- Powder-coating can then be applied, whereby the mask prevents the coating adhering to the conductive tape. The baking temperature for powder-coating should be as low as possible.
- After powder-coating, the mask can be easily removed (preferably while still warm) while the conductive contact tape remains securely in place.
- The continuous operating temperature should not exceed 90 °C.

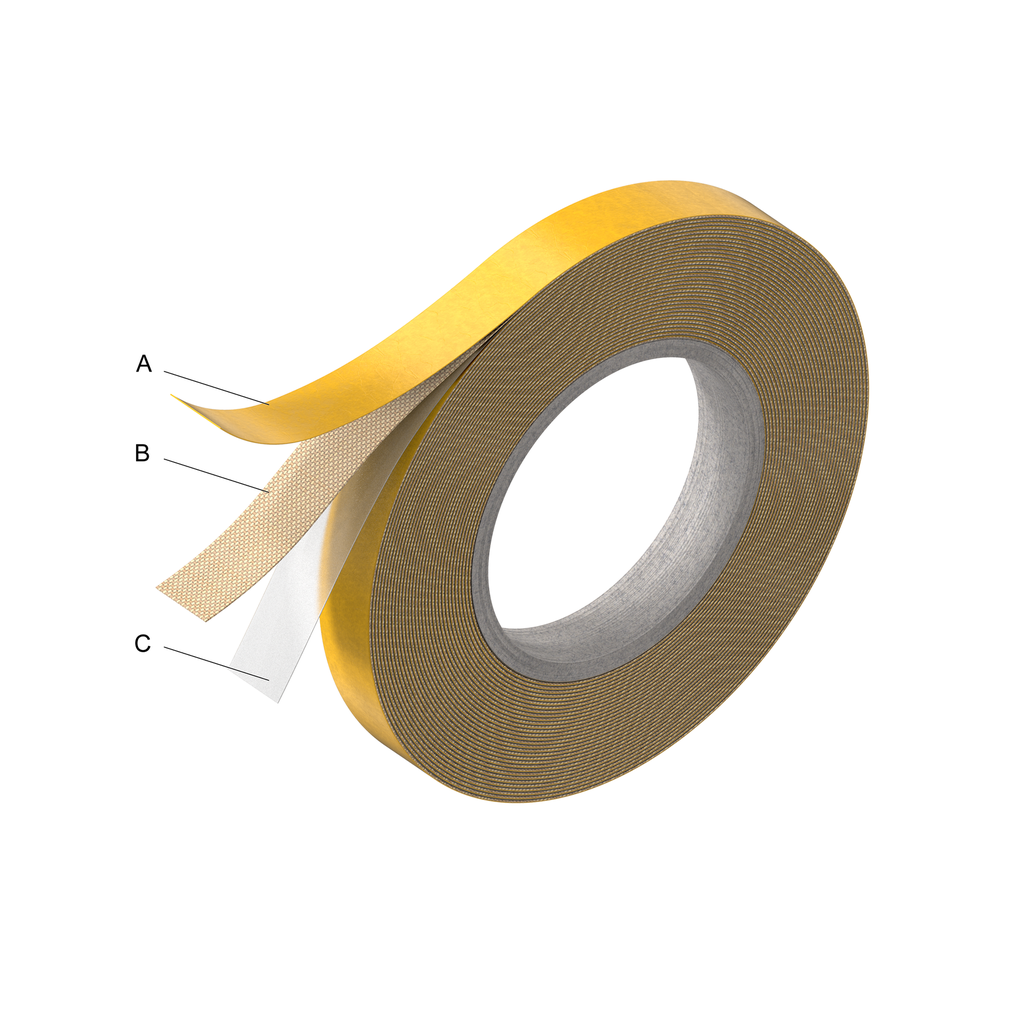

Akeneo Note:
- A = Cover
- B = Conductive tape, self-adhesive
- C = Mask
Internal Reference:
1016-220-127E
Product Type:
Accessories general
Program:
1016
Catalog sheet:
5A-220
Material of the module :
Highly-conductive adhesive
Dimension B:
12.70 mm
Dimension L:
25000 mm
